27 Mar 2013 00:49 - 28 Mar 2013 03:10 #8128 by dc59

Replied by dc59 on topic skyartec compatibility

Hexperience wrote: I take it this applies to both the skyartec module and a cc2500-pa bought off of ebay?

As long as we find the correct pins on the module we'll be ok right? This is what mine says...

So long as I match up mosi to si (etc) ??

Cheers

Hi Hexperience,
Your picture is a XL2500-D03 module,it's same as mine!

I think deviation should work fine with CC2500-PA module as well,if you got correctly pin connection.

Last edit: 28 Mar 2013 03:10 by dc59.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

27 Mar 2013 04:19 - 27 Mar 2013 04:22 #8130 by Hexperience

Replied by Hexperience on topic skyartec compatibility

Thanks, good to know it will work, but I'm wondering about this:

Does that mean I have to put 3.3v to ALL 3 of those places?

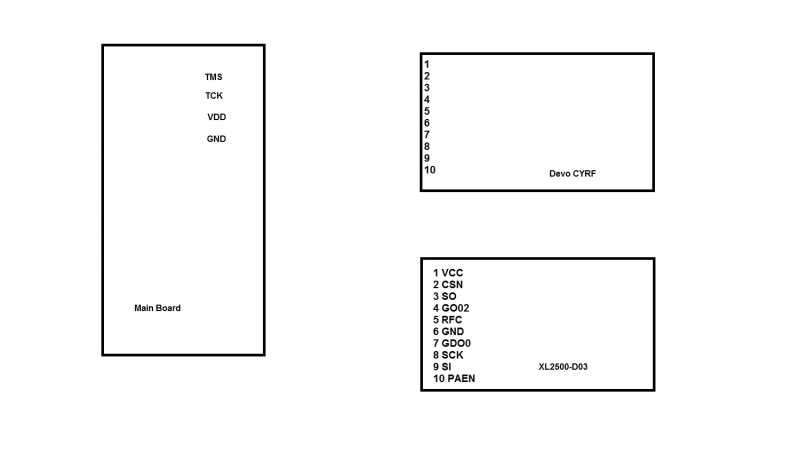

Would anyone have a diagram of how to wire in these modules? The photo in the manual is a bit hard to see where the wires are really going.

There are 10 types of people in this world. Those that understand binary and those that don't.

Last edit: 27 Mar 2013 04:22 by Hexperience.

Please Log in or Create an account to join the conversation.

dc59
Offline

27 Mar 2013 04:58 #8131 by dc59

Replied by dc59 on topic skyartec compatibility

"Does that mean I have to put 3.3v to ALL 3 of those places?"

yes,you are right!

if you use XL2500-D03 module,you should put 3.3v to VCC & PAEN.

Please Log in or Create an account to join the conversation.

vlad_vy
Offline

27 Mar 2013 06:15 - 27 Mar 2013 06:18 #8132 by vlad_vy

Replied by vlad_vy on topic skyartec compatibility

I'm not sure. Datasheet for very similar module:

wenku.baidu.com/view/2a2f4e737fd5360cba1adb94.html

wenku.baidu.com/view/1dafd519a76e58fafab0035b.html

PA_EN: When Tx status set '1', Rx set '0'
LNA_EN: When Rx status set '1', Tx set '0'

Possible PA_EN and LNA_EN have to be mutually inverted.

Last edit: 27 Mar 2013 06:18 by vlad_vy.

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

27 Mar 2013 09:26 - 27 Mar 2013 09:26 #8136 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

PhracturedBlue wrote: I have updated the module installation instructions for both the CC2500 and A7105 modules. You can find the updated instructions here:
www.deviationtx.com/repository/Documenta...duleInstallation.pdf

The next release is imminent. Mostly it is waiting for:

b) me to update the documentation

After the recent discussions - does this require the Modulinstallation.pdf file to be updated? (I need to give the module and radio to my friend for soldering and want to be sure he has the information required.)

Thanks.
Stein Holstad
Norway

Last edit: 27 Mar 2013 09:26 by stein@office-center.no. Reason: misspelled

Please Log in or Create an account to join the conversation.

vlad_vy
Offline

27 Mar 2013 09:52 - 27 Mar 2013 09:58 #8138 by vlad_vy

Replied by vlad_vy on topic skyartec compatibility

MOSI: master output, slave input (output from master); MOSI = (si)(digital input)
MISO: master input, slave output (output from slave); MISO = (so)(digital output)

Last edit: 27 Mar 2013 09:58 by vlad_vy.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

27 Mar 2013 11:01 #8139 by Hexperience

Replied by Hexperience on topic skyartec compatibility

Sorry, I don't know what that diagram really means...

Can you guys help me fill in this..

(sorry I know I'm thick)

There are 10 types of people in this world. Those that understand binary and those that don't.

Please Log in or Create an account to join the conversation.

vlad_vy
Offline

27 Mar 2013 14:15 - 27 Mar 2013 14:17 #8144 by vlad_vy

Replied by vlad_vy on topic skyartec compatibility

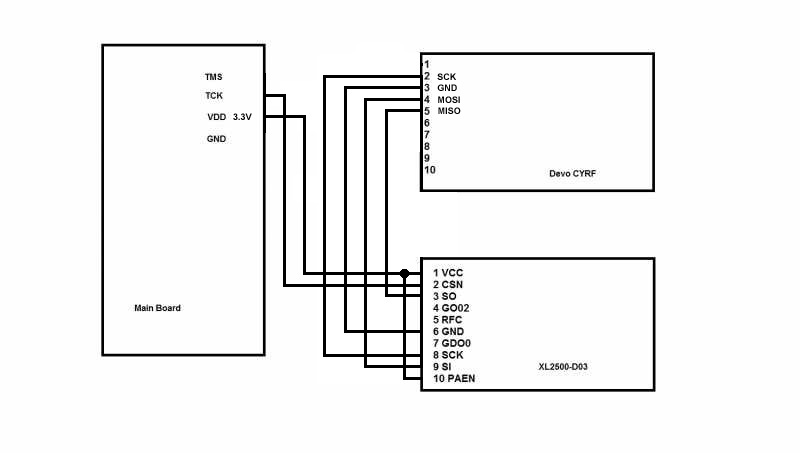

I think it will be:

Last edit: 27 Mar 2013 14:17 by vlad_vy.

Please Log in or Create an account to join the conversation.

dc59
Offline

28 Mar 2013 00:49 - 28 Mar 2013 03:08 #8164 by dc59

Replied by dc59 on topic skyartec compatibility

Delete

Last edit: 28 Mar 2013 03:08 by dc59.

Please Log in or Create an account to join the conversation.

dc59
Offline

28 Mar 2013 00:52 - 28 Mar 2013 03:08 #8165 by dc59

Replied by dc59 on topic skyartec compatibility

Delete

Last edit: 28 Mar 2013 03:08 by dc59.

Please Log in or Create an account to join the conversation.

Mullson
Offline

28 Mar 2013 02:31 #8166 by Mullson

Replied by Mullson on topic skyartec compatibility

Wats the picture? This project is for everyone and all. fer more the first thing this jittering is FK distrusting.The first explanation was correct, I got it right the first time whith PBs explination and some thinking and sens This is no do it your self club.
Lets come together and make some sense!

Please Log in or Create an account to join the conversation.

dc59
Offline

28 Mar 2013 02:41 #8167 by dc59

Replied by dc59 on topic skyartec compatibility

Mullson wrote: Wats the picture? This project is for everyone and all. fer more the first thing this jittering is FK distrusting.The first explanation was correct, I got it right the first time whith PBs explination and some thinking and sens This is no do it your self club.
Lets come together and make some sense!

Sorry!
If I uploaded any picture with no sense,please let me know,I will delete it.

do you mean the connection table or devo10 pictures?

Please Log in or Create an account to join the conversation.

PhracturedBlue
Offline

28 Mar 2013 03:05 - 28 Mar 2013 03:05 #8169 by PhracturedBlue

Replied by PhracturedBlue on topic skyartec compatibility

vlad_vy wrote: PA_EN: When Tx status set '1', Rx set '0'
LNA_EN: When Rx status set '1', Tx set '0'

Possible PA_EN and LNA_EN have to be mutually inverted.

No, they can both be enabled at the same time. the PA_EN powers up the power-amp (transmit amp). The LNA_EN powers up the low-noise-amplifier (receiver amp). It is perfectly valid for both to be enabled simultaneously though it does draw more power that way. Since we don't have enoiugh pins to actually manage these connections, tying them always on is what I've done. It is possible it will reduce the overall performance of the CC2500 module, but I haven't really tested yet. Note that this has nothing to do with the CC2500. These connections are (as far as I'm aware) only for controlling the external amplifier

Last edit: 28 Mar 2013 03:05 by PhracturedBlue.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

28 Mar 2013 03:16 #8172 by Hexperience

Replied by Hexperience on topic skyartec compatibility

dc59 wrote: Delete

DC59!!! Those pictures were great! I don't have a clue what that guy was talking about. Please repost them!

There are 10 types of people in this world. Those that understand binary and those that don't.

Please Log in or Create an account to join the conversation.

PhracturedBlue
Offline

28 Mar 2013 03:19 #8174 by PhracturedBlue

Replied by PhracturedBlue on topic skyartec compatibility

I have updated the table in the pdf so that it is hopefully correct now.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

28 Mar 2013 03:22 #8175 by Hexperience

Replied by Hexperience on topic skyartec compatibility

Does the XL2500 not have a Low Noise Amp? Will that be a problem? Specifically I'll be looking for long range (with telemetry when we get to that point).

There are 10 types of people in this world. Those that understand binary and those that don't.

Please Log in or Create an account to join the conversation.

sbstnp
Offline

28 Mar 2013 03:23 #8176 by sbstnp

Replied by sbstnp on topic skyartec compatibility

Hexperience wrote:
dc59 wrote: Delete

DC59!!! Those pictures were great! I don't have a clue what that guy was talking about. Please repost them!

+1. Mullson seems to be... special

, don't listen to him

Devo 10 + 4in1
~~Spektrum Dx9~~
FrSky Taranis + TBS Crossfire

Please Log in or Create an account to join the conversation.

sbstnp
Offline

28 Mar 2013 03:25 - 28 Mar 2013 03:27 #8177 by sbstnp

Replied by sbstnp on topic skyartec compatibility

Hexperience wrote: Does the XL2500 not have a Low Noise Amp? Will that be a problem? Specifically I'll be looking for long range (with telemetry when we get to that point).

The one I got has both PA and LNA.
www.aliexpress.com/item/CC2500-PA-LNA-wi...-2-4G/359941652.html

Which XL2500 is yours, D02 or D03?

From what I'm seeing around:
D02: both PA and LNA, 20dbm
D03: just PA, 15dbm or 16dbm

Devo 10 + 4in1
~~Spektrum Dx9~~
FrSky Taranis + TBS Crossfire

Last edit: 28 Mar 2013 03:27 by sbstnp.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

28 Mar 2013 03:26 #8178 by Hexperience

Replied by Hexperience on topic skyartec compatibility

vlad_vy wrote: I think it will be:

Thanks Vlad!!! Just what I needed.

There are 10 types of people in this world. Those that understand binary and those that don't.

Please Log in or Create an account to join the conversation.

Hexperience
Offline

28 Mar 2013 03:32 - 28 Mar 2013 03:52 #8179 by Hexperience

Replied by Hexperience on topic skyartec compatibility

sbstnp wrote:
Hexperience wrote: Does the XL2500 not have a Low Noise Amp? Will that be a problem? Specifically I'll be looking for long range (with telemetry when we get to that point).

The one I got has both PA and LNA.
www.aliexpress.com/item/CC2500-PA-LNA-wi...-2-4G/359941652.html

Which XL2500 is yours, D02 or D03?

From what I'm seeing around:
D02: both PA and LNA, 20dbm
D03: just PA, 15dbm or 16dbm

%@#$%@%%!!! I hate ebay!

Yes, I have the D03 but the ebay listing said it was 20dbm... Now I have to order again and wait... crud.

Thanks for catching that sbstnp.... I wouldn't have known...

edit--- AHHH I just did it again... I just ordered from the link posted above without reading it. It says it's 17dbm and "work distance" is 800m (But that it's up to 150ma so I don;t know...)

Lucky these things are cheap! I'll have a nice collection by the end.

I'll hook up the xl2500-d03 for now...

There are 10 types of people in this world. Those that understand binary and those that don't.

Last edit: 28 Mar 2013 03:52 by Hexperience.

Please Log in or Create an account to join the conversation.
