24 Oct 2017 19:03 #65232 by Elric
JJRC H8DH - POTENSIC F183DH - (unknown protocol) was created by Elric
Test with all known procotole: no binding

Function to maintain the altitude in addition to the JJRC H8D



TX chip :



How to wire this tx chip for capture?
Attachments:

Please Log in or Create an account to join the conversation.

More
24 Oct 2017 19:24 #65233 by Moeder
Replied by Moeder on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)

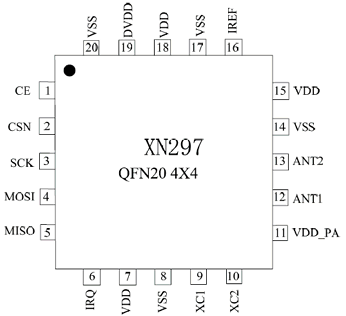

How convenient...they even labeled where to wire: MOSI, MISO, CSN, SCK and not to forget GND are your targets.

Please Log in or Create an account to join the conversation.

More
25 Oct 2017 20:22 #65266 by Elric
Replied by Elric on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Thank you, I would capture the Saturday morning that comes

Please Log in or Create an account to join the conversation.

More
28 Oct 2017 08:30 - 29 Oct 2017 18:08 #65318 by Elric
Replied by Elric on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Capture 8MHz : 1drv.ms/u/s!AuNBpmXL1y0Rg8tnFJENYCjjGbc4ew

Channels of capture :

MOSI => CH1
MISO => CH2
SCK => CH3
CSN => CH4
GND => GND

OFF => ON => binding => start motor => CH1 => CH2 => CH4 => CH3 => Light => video => photo => headless/return to home => flips => off

Attachments:
Last edit: 29 Oct 2017 18:08 by Elric.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 21:56 #65351 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Seems this is a CX-10 variant, can you try with all its sub-formats ?
If it's doesn't work I'll make a test build with the same RF channels than in your dump, and if it still doesn't work I'll also copy your TX ID, but that means that only one deviated H8DH could fly in a given area.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 22:29 #65352 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Try this build, it has an H8DH format for CX-10 protocol:
www.dropbox.com/sh/4idi2nlmqs02rye/AABKd...GK9JlzsJQH0q-ba?dl=0
Let me know if it binds, functions are not implemented yet.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 22:47 - 29 Oct 2017 23:00 #65354 by Elric
Replied by Elric on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
I tested all the CX10s and none of them bind.

the same for CX10-H8DH.
Last edit: 29 Oct 2017 23:00 by Elric.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 22:51 - 29 Oct 2017 22:52 #65355 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Ok, build updated to include the txid that's in your dump:
www.dropbox.com/sh/4idi2nlmqs02rye/AABKd...GK9JlzsJQH0q-ba?dl=0
Last edit: 29 Oct 2017 22:52 by goebish.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 23:04 - 29 Oct 2017 23:07 #65356 by Elric
Replied by Elric on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
the leds stop flashing quickly from the beginning of the pairing. then she blinks slowly as if the drone were waiting for something.

to arm the drone, I have to play with the throttle stick (up and down) so that the leds become fixed.
Last edit: 29 Oct 2017 23:07 by Elric.

Please Log in or Create an account to join the conversation.

More
29 Oct 2017 23:10 - 29 Oct 2017 23:15 #65357 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Ok, I suppose it's waiting for the flags that are not implemented yet.
When you say "start motor" in your capture, does that mean you've to press a button ?
Also, please make 1 capture per function, that's really more convenient, there are too many stuffs in your capture, I can't see what is what ;)
Last edit: 29 Oct 2017 23:15 by goebish.

Please Log in or Create an account to join the conversation.

More
30 Oct 2017 22:09 #65370 by Elric
Replied by Elric on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)

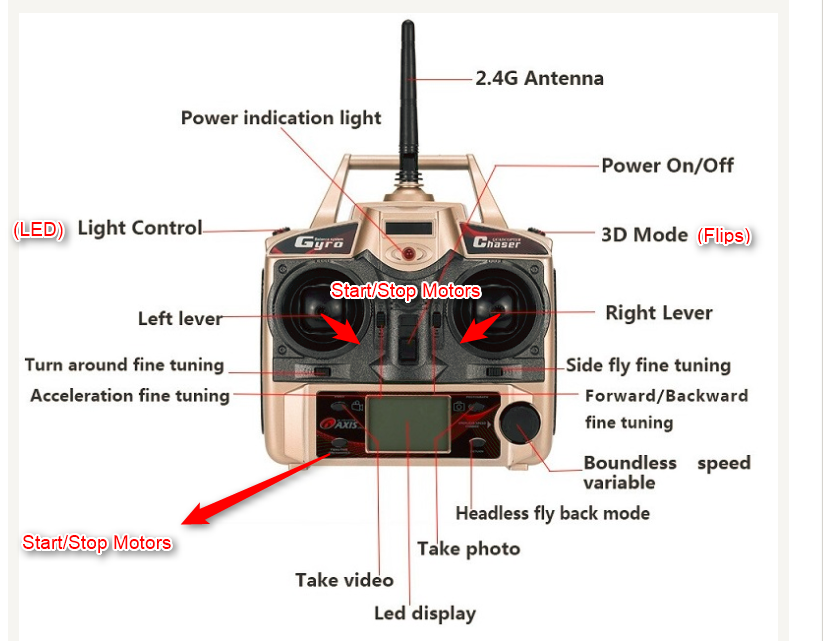

Start motors with a button

New Capture 8MHz (one file = off + on + binding + one function) : 1drv.ms/u/s!AuNBpmXL1y0Rg8tvry_6avxpMkh5tg

Starting engines is also possible by lowering the sleeves in the center.

Attachments:

Please Log in or Create an account to join the conversation.

More
30 Oct 2017 22:21 #65371 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
Thanks, I should be able to make it work with that, I think only 1 thing is missing: the different rates ("Bounless speed variable" button ?).

Please Log in or Create an account to join the conversation.

More
13 Nov 2017 14:51 - 13 Nov 2017 14:54 #65794 by goebish
Replied by goebish on topic JJRC H8DH - POTENSIC F183DH - (unknown protocol)
I updated the test build:
www.dropbox.com/sh/4idi2nlmqs02rye/AABKd...GK9JlzsJQH0q-ba?dl=0

Protocol: CX10, Format: H8DH

Ch5: leds
Ch6: flips
Ch7: snapshot
Ch8: video
Ch10: "RTH" (at least they're honest, they call it "headless fly back mode" :p)
Ch12: motor start / stop

Please report.

If it works I'll need a capture with the different rates to finalize the implementation.
Last edit: 13 Nov 2017 14:54 by goebish.
