31 Mar 2017 19:46 #60996 by ursus69
Replied by ursus69 on topic 7e/Ultimate7e, adding the devo version 4in1
Hi,

I installed a 4in1 a Devo10, and a DevoU7e.
I have good range in 30mw with my dsmx inductrix & devo10 4in1, but with my u7e with the same antenna and 30mw, I have bad range.

What could be the problem? Any solution?

Please Log in or Create an account to join the conversation.

More
31 Mar 2017 23:30 - 01 Apr 2017 00:13 #60999 by Farrenth
Replied by Farrenth on topic Ultimate7e, adding the devo version 4in1
I made the switch mod on my Devo 7E and tested it out ok right through to cleanflight. Then I did the 4 in 1 mod reassembled the unit and modified the Hardware.ini . Tuned on the Devo 7E and all looks good switches still work and all the protocols seem to be there as all Asterisks have disappeared. Problem is now when I switch on the transmitter and try to bind to a previously defined model to a DSMX receiver that worked fine prior to the mod, nothing happens. Just like there is no rf signal. Rechecked all the wiring and looks ok to me.

Per HappyHarry I used his pigtail and antennae suggestion as well.

Anyone have any ideas of what the problem may be? Do I need to flash something?
Last edit: 01 Apr 2017 00:13 by Farrenth.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 12:45 #61011 by RobC62
Replied by RobC62 on topic Ultimate7e, adding the devo version 4in1
Did you remove the original cyrf module from the mainboard? Can you post your hardware.ini contents here? More than likely it is a wiring issue.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 13:48 #61014 by Farrenth
Replied by Farrenth on topic Ultimate7e, adding the devo version 4in1

RobC62 wrote: Did you remove the original cyrf module from the mainboard? Can you post your hardware.ini contents here? More than likely it is a wiring issue.


Thanks for responding RobC62. Yes I did remove the cyrf module. Here is my hardware.ini file

;Only useful for transmitters with an after-market vibration motor
;enable-haptic=1
;
;switch_types: 3x2, 3x1, 2x2
extra-switches=3x2
;
;button_types: trim-all, trim-(left|right)-(up|down|both)
;May occur more than once if necessary.
;extra-buttons=
;
[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
; enable-cyrf6936 = B12
has_pa-cyrf6936 = 0
enable-a7105 = A13
has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = A15
has_pa-nrf24l01 = 1
; enable-multimod = A13

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 14:13 #61017 by HappyHarry
Replied by HappyHarry on topic Ultimate7e, adding the devo version 4in1
iirc the cyrf 'transmitter id' is derived from the rf chip serial number, and if i am remembering correctly this means you will need to rebind your spektrum receivers to match the new rf chip that's inside the 4in1

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 14:55 #61022 by ursus69
Replied by ursus69 on topic 7e/Ultimate7e, adding the devo version 4in1

ursus69 wrote: Hi,

I installed a 4in1 a Devo10, and a DevoU7e.
I have good range in 30mw with my dsmx inductrix & devo10 4in1, but with my u7e with the same antenna and 30mw, I have bad range.

What could be the problem? Any solution?

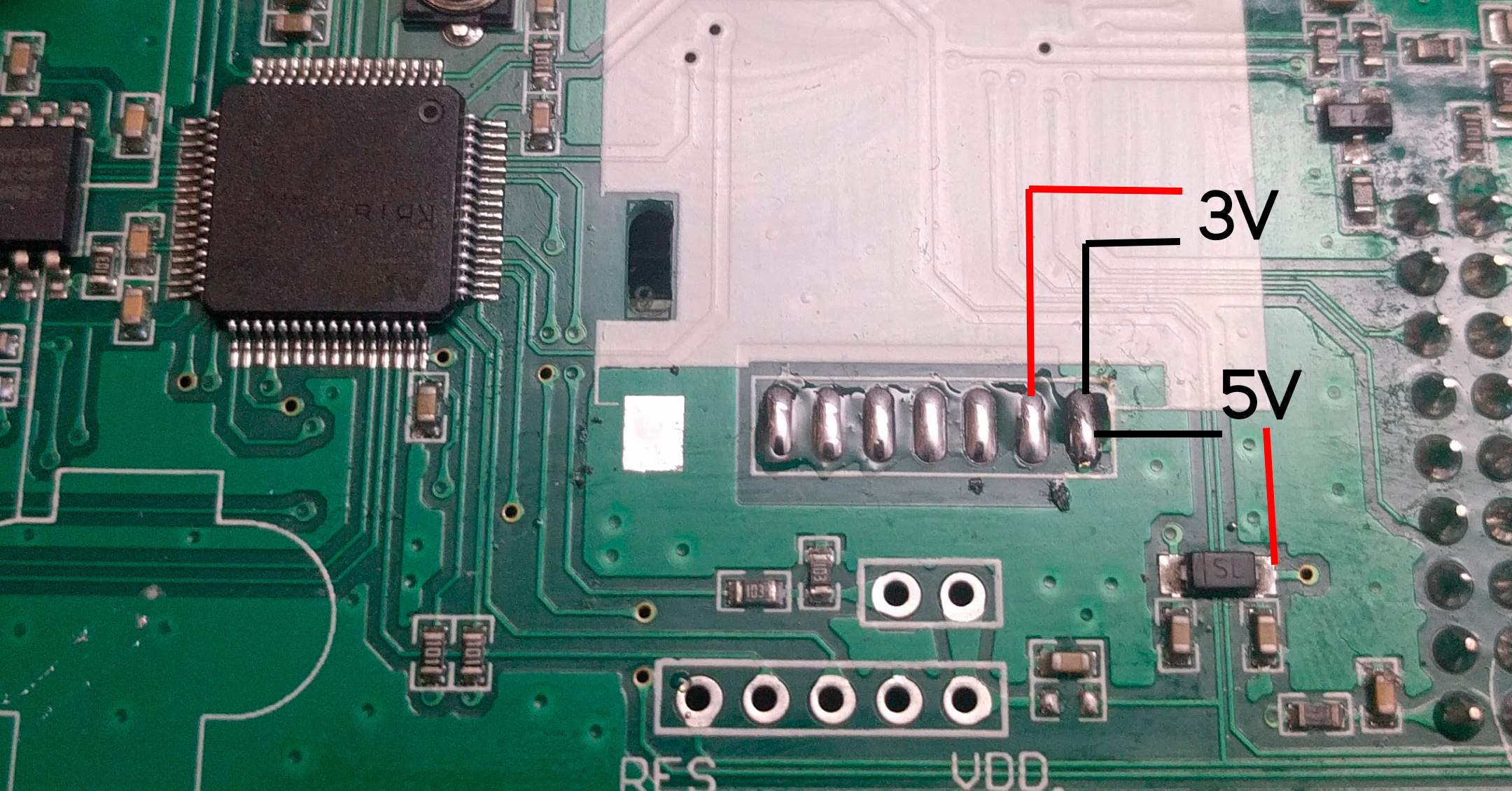

I mesured the voltages. I have 3v and 5v.
I tried to connect with the two option with the same result....Bad range...

Any solution? Idea??

Attachments:

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 17:56 - 01 Apr 2017 17:59 #61027 by aMax
Replied by aMax on topic Ultimate7e, adding the devo version 4in1

Farrenth wrote:


cut..........
[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
; enable-cyrf6936 = B12
has_pa-cyrf6936 = 0
has_pa-cyrf6936 = 1
enable-a7105 = A13
has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = A15
has_pa-nrf24l01 = 1
; enable-multimod = A13


Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02
Last edit: 01 Apr 2017 17:59 by aMax.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 19:00 - 01 Apr 2017 19:02 #61030 by HappyHarry
Replied by HappyHarry on topic Ultimate7e, adding the devo version 4in1
Ursus69 if you only have 3v at the rf module header pin while you have 5V at the diode then you have other issues
Last edit: 01 Apr 2017 19:02 by HappyHarry.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 19:55 #61037 by ursus69
Replied by ursus69 on topic Ultimate7e, adding the devo version 4in1

HappyHarry wrote: Ursus69 if you only have 3v at the rf module header pin while you have 5V at the diode then you have other issues


I connected the 4in1 to the diode (5v), but I also had bad range...
What could be the problem?

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 21:17 - 01 Apr 2017 21:18 #61038 by Farrenth
Replied by Farrenth on topic Ultimate7e, adding the devo version 4in1
Thank you aMax and HappyHarry. I corrected the one line in the hardware.ini file and did a rebinding to the receiver and voila another successful 4 in 1 mod.
Last edit: 01 Apr 2017 21:18 by Farrenth.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 23:45 #61040 by HappyHarry
Replied by HappyHarry on topic Ultimate7e, adding the devo version 4in1

ursus69 wrote:

HappyHarry wrote: Ursus69 if you only have 3v at the rf module header pin while you have 5V at the diode then you have other issues


I connected the 4in1 to the diode (5v), but I also had bad range...
What could be the problem?


have you checked the 7e antenna on your d10 to rule it out? also worth checking that the u.fl connector is seated properly and not damaged. is it all protocols you have bad range with?

but as I already said you have other issues, the stock RF module has it's own 3.3v vreg and needed >3.6v to provide 3.3v to the chips, hence there only being 1 diode between vbat and the header. I'd be looking to solve this issue before worrying about range as that tx isn't really safe to fly with as is imo

Please Log in or Create an account to join the conversation.

More
02 Apr 2017 10:12 #61059 by ursus69
Replied by ursus69 on topic Ultimate7e, adding the devo version 4in1

HappyHarry wrote:

ursus69 wrote:

HappyHarry wrote: Ursus69 if you only have 3v at the rf module header pin while you have 5V at the diode then you have other issues


I connected the 4in1 to the diode (5v), but I also had bad range...
What could be the problem?


have you checked the 7e antenna on your d10 to rule it out? also worth checking that the u.fl connector is seated properly and not damaged. is it all protocols you have bad range with?

but as I already said you have other issues, the stock RF module has it's own 3.3v vreg and needed >3.6v to provide 3.3v to the chips, hence there only being 1 diode between vbat and the header. I'd be looking to solve this issue before worrying about range as that tx isn't really safe to fly with as is imo


Hi HappyHarry!

Range solved! I using a new pigtail antenna like this: www.banggood.com/10cm-PCI-UFL-IPX-to-RPS...33.html?rmmds=search and have the range problem...
I changed with a coaxial cable pigtail, and the range solved!!
You say that I have to change the diode? What diode??

Thanks again HappyHarry!!

Please Log in or Create an account to join the conversation.

More
02 Apr 2017 13:14 #61063 by aMax
Replied by aMax on topic Ultimate7e, adding the devo version 4in1

ursus69 wrote:


cut
Range solved! I using a new pigtail antenna like this: www.banggood.com/10cm-PCI-UFL-IPX-to-RPS...33.html?rmmds=search and have the range problem...
I changed with a coaxial cable pigtail, and the range solved!!
You say that I have to change the diode? What diode??

Thanks again HappyHarry!!

Would you be so kind and post a photo of this new pigtail?

Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02

Please Log in or Create an account to join the conversation.

More
02 Apr 2017 13:29 #61065 by RobC62
Replied by RobC62 on topic Ultimate7e, adding the devo version 4in1


I too had a problem with one of the 3-in-1 modules I fitted until I swapped the antenna out for one of these and a normal rubber ducky type.

Please Log in or Create an account to join the conversation.

More
02 Apr 2017 17:11 - 02 Apr 2017 17:15 #61083 by aMax
Replied by aMax on topic Ultimate7e, adding the devo version 4in1
I guess it`s the same type(RG113) as that one from BG or does the coax differ?
Maybe there was a quality issue with your first installed pigtail. One never knows until testing.

I had this with my 7e, one day easy going within 600m, the next day failsafe at 300m, crash..:huh:
Never found out what was going on there, everything on the module was tight and secure attached and the rx
was ok.
The genuine Frsky gear never failed.......until now.

Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02
Last edit: 02 Apr 2017 17:15 by aMax.

Please Log in or Create an account to join the conversation.

More
03 Apr 2017 07:15 #61107 by Phoenixx
Replied by Phoenixx on topic Ultimate7e, adding the devo version 4in1
I have bad range also and am using the pigtail from banggood, I only get about 40-50m range even on 150mw (this in on both Flysky and SymaX protocols)
I'm going to check the pigtail and the voltages and if they all look ok will try a different pigtail.
Could you post a link to the one you have that is working, thanks

Please Log in or Create an account to join the conversation.

More
03 Apr 2017 08:14 - 03 Apr 2017 08:19 #61109 by ursus69
Replied by ursus69 on topic Ultimate7e, adding the devo version 4in1

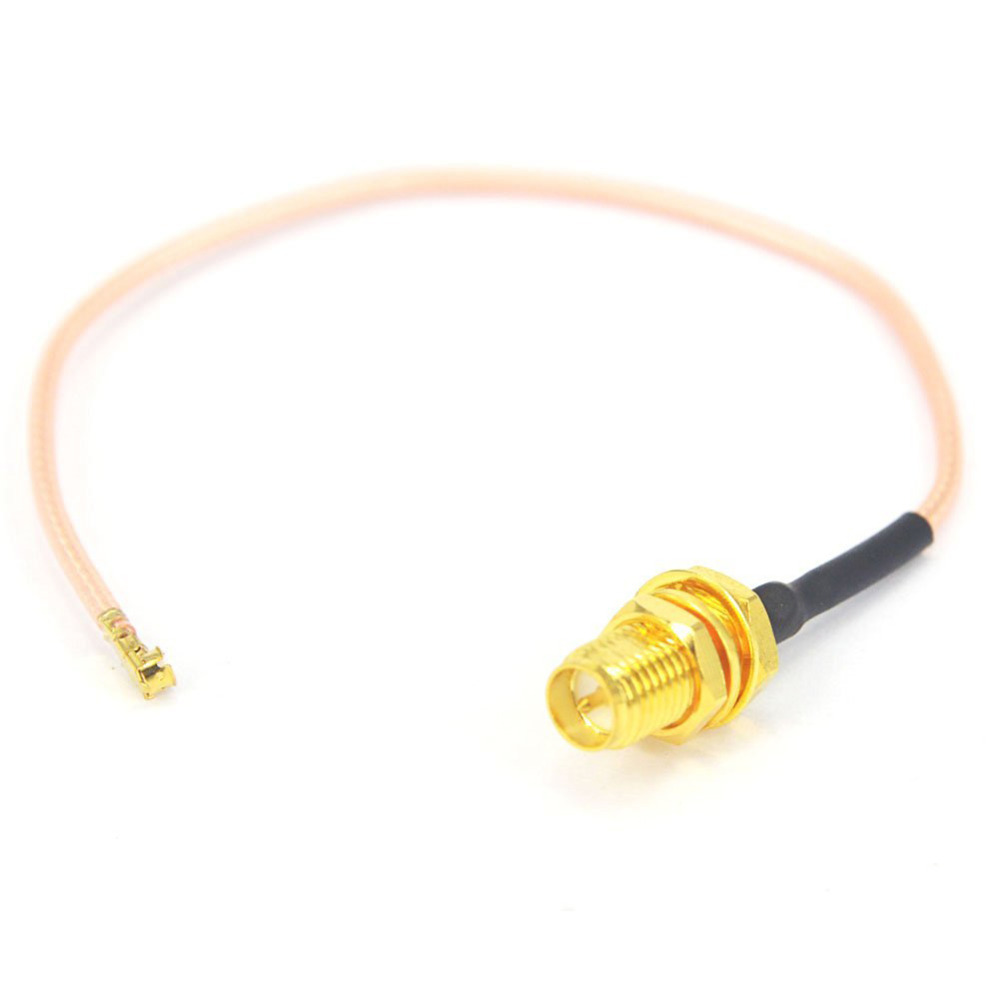

Hi, I use now this kind of antenna


I don't know if my last antenna was broken or bad....but this new works better for me.
In bangoodd don't have.... I found it in ebay
Attachments:
Last edit: 03 Apr 2017 08:19 by ursus69.

Please Log in or Create an account to join the conversation.

More
03 Apr 2017 08:18 #61110 by ursus69
Replied by ursus69 on topic Ultimate7e, adding the devo version 4in1

HappyHarry wrote:

ursus69 wrote:

HappyHarry wrote: Ursus69 if you only have 3v at the rf module header pin while you have 5V at the diode then you have other issues


I connected the 4in1 to the diode (5v), but I also had bad range...
What could be the problem?


have you checked the 7e antenna on your d10 to rule it out? also worth checking that the u.fl connector is seated properly and not damaged. is it all protocols you have bad range with?

but as I already said you have other issues, the stock RF module has it's own 3.3v vreg and needed >3.6v to provide 3.3v to the chips, hence there only being 1 diode between vbat and the header. I'd be looking to solve this issue before worrying about range as that tx isn't really safe to fly with as is imo


HH,
What diode need to verify? Or change?

Thanks again!

Please Log in or Create an account to join the conversation.

More
03 Apr 2017 10:31 - 03 Apr 2017 10:32 #61113 by aMax
Replied by aMax on topic Ultimate7e, adding the devo version 4in1

ursus69 wrote: Hi, I use now this kind of antenna


cut---
I don't know if my last antenna was broken or bad....but this new works better for me.
In bangoodd don't have.... I found it in ebay


Hard to find these RG178 / Ipex things. Found one RG 137, but mostly for a RG178 search a pigtail with RG113 pops up.
Would you please check your order a post the source?

Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02
Last edit: 03 Apr 2017 10:32 by aMax.

Please Log in or Create an account to join the conversation.

More
03 Apr 2017 18:25 #61132 by ursus69
Replied by ursus69 on topic Ultimate7e, adding the devo version 4in1

aMax wrote:

ursus69 wrote: Hi, I use now this kind of antenna


cut---
I don't know if my last antenna was broken or bad....but this new works better for me.
In bangoodd don't have.... I found it in ebay


Hard to find these RG178 / Ipex things. Found one RG 137, but mostly for a RG178 search a pigtail with RG113 pops up.
Would you please check your order a post the source?


I buyed this:
www.ebay.com/itm/2Pcs-5-9-RG178-RP-SMA-t...tem5d67153cad&_uhb=1

You can found more on Ebay

Please Log in or Create an account to join the conversation.
