PXX protocol

@hexfet is it possible to have a test build on Qlrs with these telemetry values in the cell 1 n cell 2 positions?
APID_PITCH 0x0430
APID_ROLL 0x0440

Sure. Test build is updated (4fa9893). Pitch in CELL1 and Roll in CELL2. I left the other Qlrs overrides as before. Would it be better to just remove them?

Is ok to remove since I'm unsure how to interpret the values. Maybe there's some multiplication factors involved?

Test build is updated (51ff19a). The only Qlrs custom telemetry values displayed are pitch in CELL1 and roll in CELL2.

If the interpretation is not in the Qlrs documentation then it's probably not available.

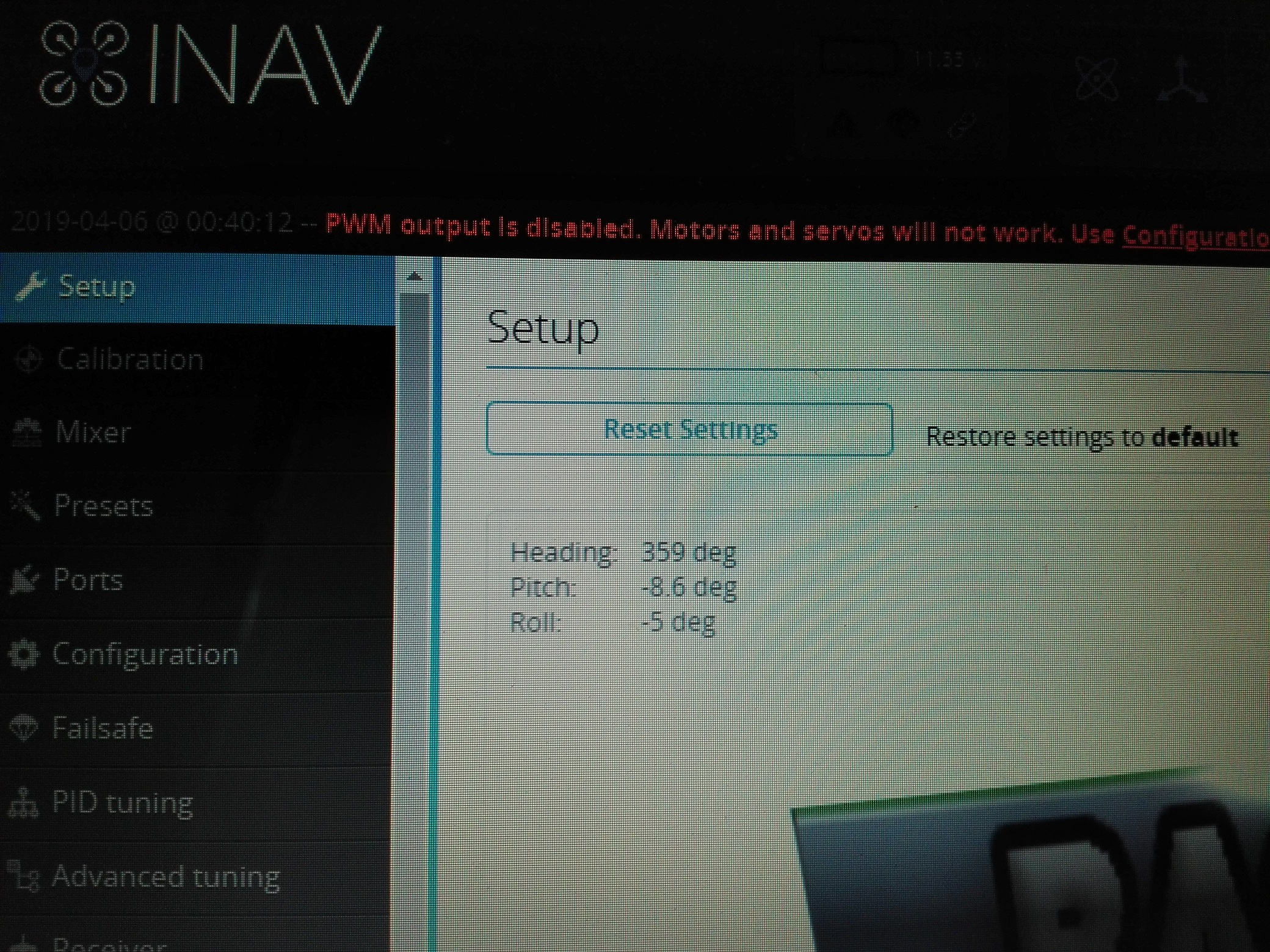

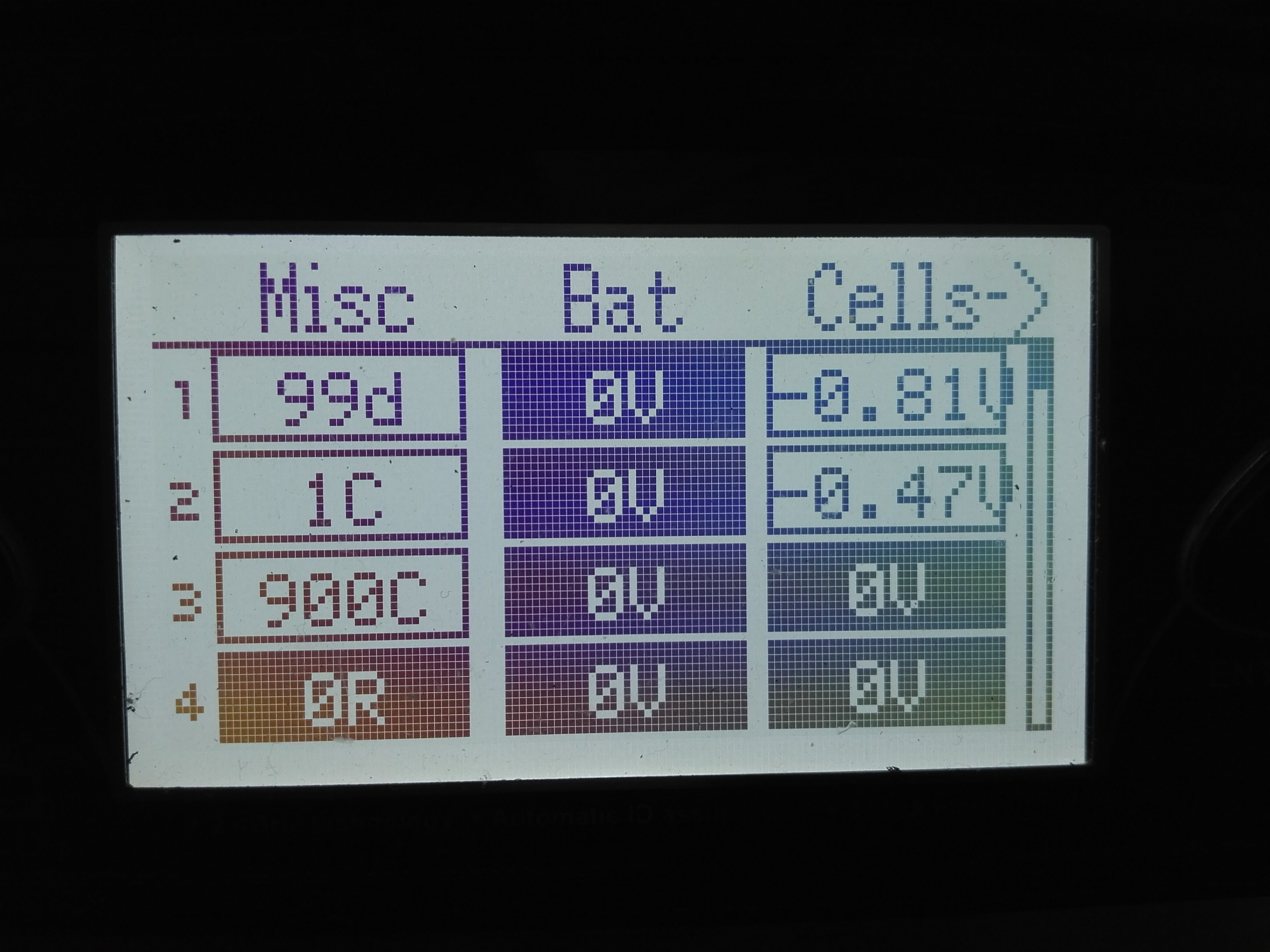

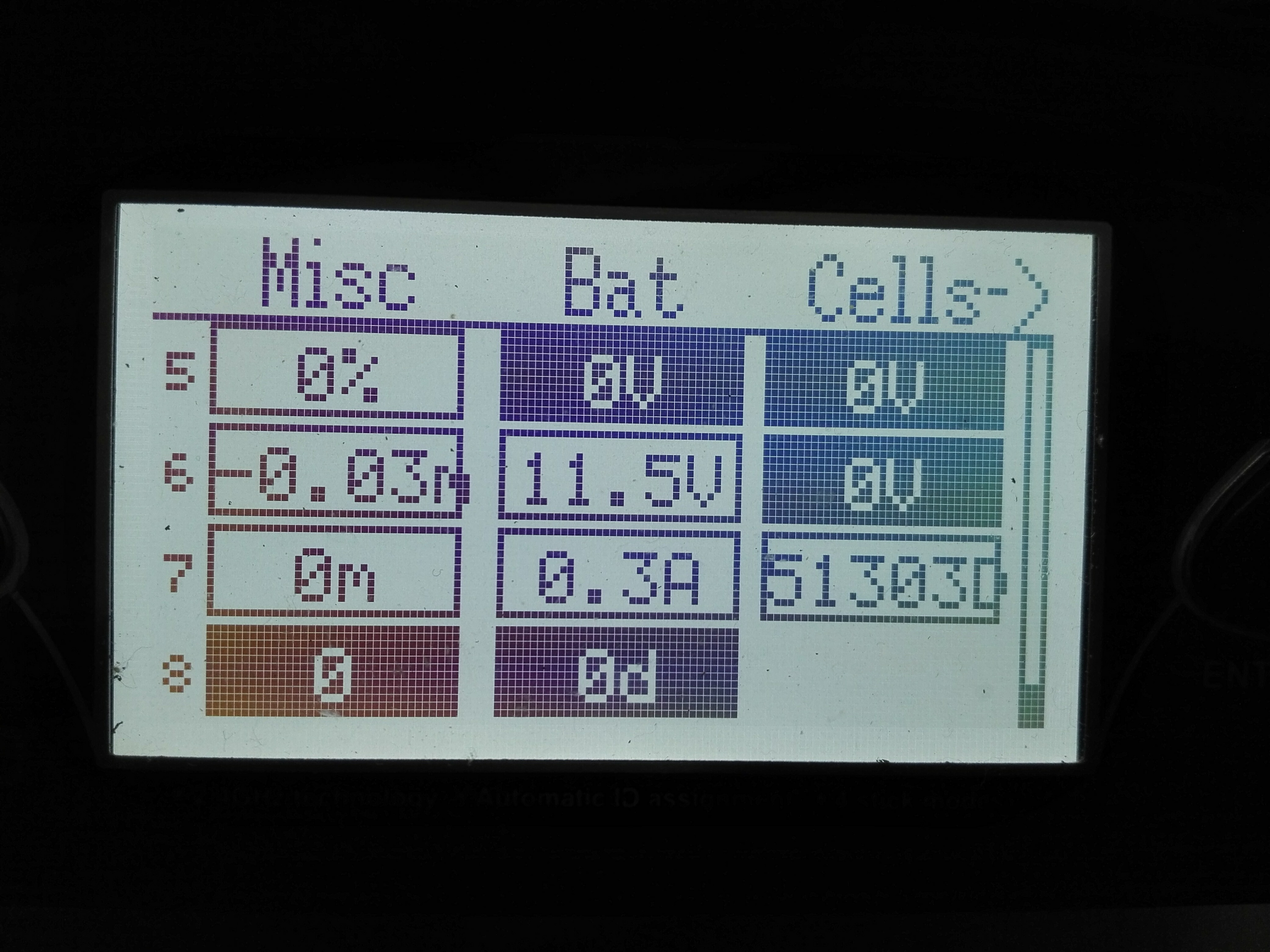

Ok tried the latest test build, but having a few glitches with it. Pitch and roll values is displayed but have the decimal points in the wrong place. Also the total discharge mAh value in the last row of the CELL column is wrong, I think it's displaying a false 5130 value in front of the actual correct value.

Test build is updated (244c818). The telemetry test page is extended with a ninth row for Frsky telemetry. This row has pitch, roll, and yaw values. The standard s.port telemetry reports three accelerometer values that were not previously supported. When Qlrs telemetry is present the pitch and roll values are reported in the accelerometer x and y spots (first two values on row 9).

The s.port air speed telemetry sensor was also not previously supported. It is now displayed in the third column of row 8.

Not sure about the strange value reported for discharge. I did see it once in testing, but when i added code to debug it the problem went away and did not return. See what happens with this latest build.

This version also supports resetting the discharge and ground level altitude values by a long press on UP. If you see a large number for discharge, see if that resets it to 0.

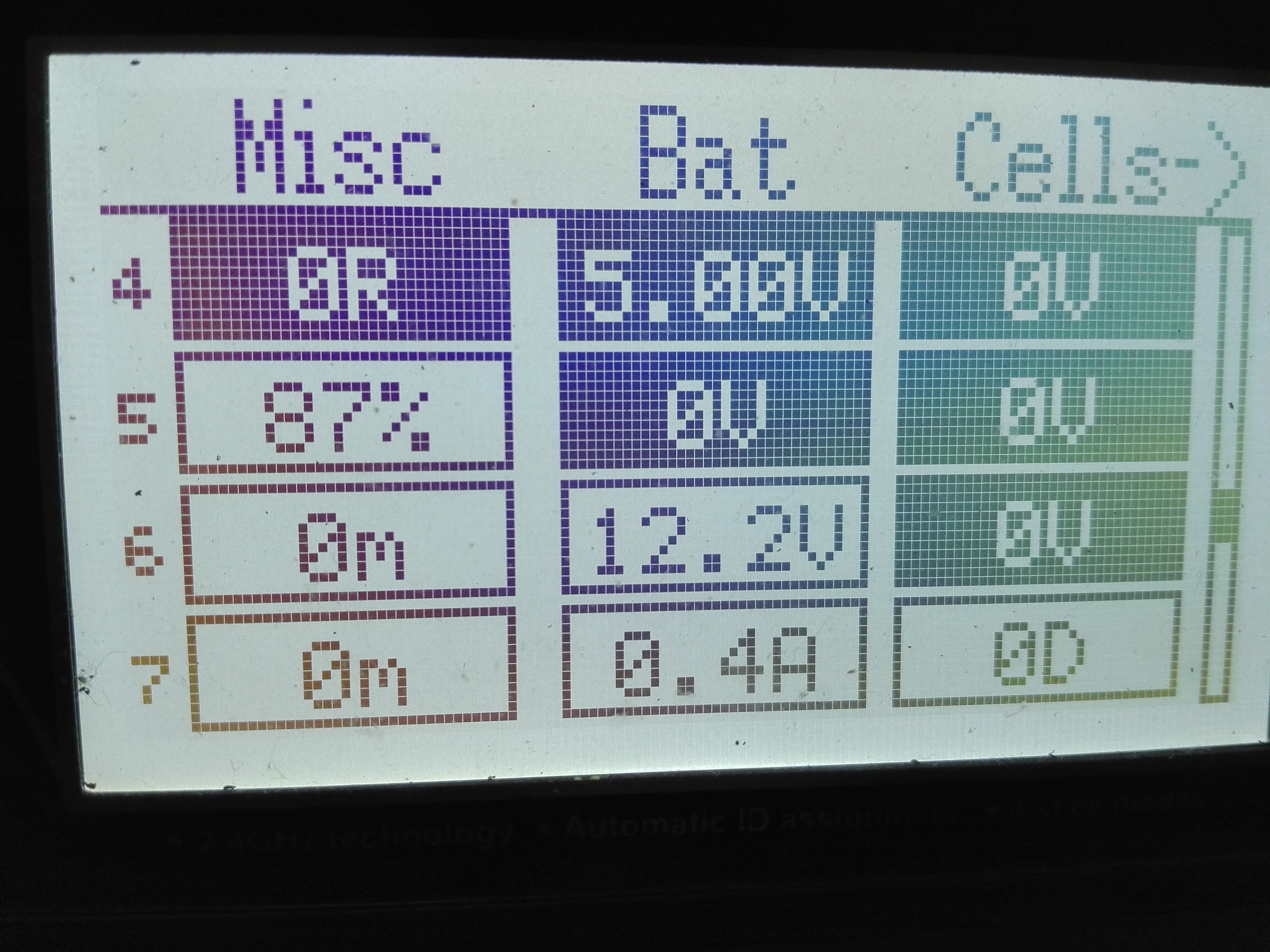

Test build 244c818 report, pitch and roll values from Qlrs is displayed correctly and also discharge values is correct. But now also seeing a small bug, when resetting by long press UP the 4th row of BAT column (mincell) is displayed a false value of 5.00v which is greyed out.

Thanks for testing. Test build is updated (42d48d4). Should fix the MIN CELL value problem.

If this works I'll make a PR to get the improvements incorporated.

Tested 42d48d4 and everything's looking good. When's the planned release of 5.1.0 master?

hexfet wrote: The s.port air speed telemetry sensor was also not previously supported. It is now displayed in the third column of row 8.

Is referring to this value?
APID_AIR_SPEED 0x0a00

Thanks. I'm not sure when the next release will be. Some internal changes are currently underway.

Yes on the air speed. 0x0a00 is the standard s.port sensor id for air speed. The GPS speed is reported separately.

Thanks again for ur time and effort put into this, just glad I was able to help.

Hi. Can someone tell me what firmware I am supposed to use with my R9 module in combination with my Devo 7E (v5.0.0-fa89fd4)?
It seems to me that the module is only sending with minimal power regardless my settings. My RSSI is dropping to 70% at 250m and to 60% at 400. Also my 2s 18650 power source doesn't deplete in any way. I'm currently at FW_Ranger9_RX_20190201 for my r9 Mini and FW_Ranger9_TX_20190117 for the module (FCC). I'm using a Super 8 antenna with the module and the T-style antennas with the RX.

Thank you for reading and sorry if I'm in the wrong thread!

That firmware version should be fine. Unfortunately the R9 module doesn't provide any confirmation of the power setting made through PXX. One test would be to drive the module with PPM and set the power with the switches on the R9. See if that gives different ranges for different settings.

How are you getting RSSI with a 7e?

hexfet wrote: One test would be to drive the module with PPM and set the power with the switches on the R9. See if that gives different ranges for different settings.

How are you getting RSSI with a 7e?

I get the RSSI over CH16 of the SBUS signal. (I read if I'd using F-port I had to scale the RSSI differently.(But I use SBUS)) I'm sure it's accurate because I also got Fail-safes at 500m and 3% RSSI.

I'll try PPM tomorrow. I also have ordered more receivers so I can exclude an RX problem. I'll keep you updated.

So... I couldn't wait. Tried PPM. Switch 1 Off and 2 On which should be 500mW in PPM mode. Rock solid 99% RSSI @500m. So I'm guessing module and RX are fine.

Do I have to follow a special routine(power module first, then radio(tested)) with the module? When does the radio send the tx power command?

No special routine. The power bits are sent as part of every PXX packet.

Thanks for reporting this. The problem is a bug that was introduced with the recent addition of separate power levels for each radio module. To put a silver lining on it, you were getting 60% RSSI at 400m in range test mode Another bug that's been there since PXX was added is setting the power level to 10mW also turned on the R9 range test.

Please try the test build (712707c) here . Please try both the power level settings and the range test in the transmitter menu. My old PXX documentation for the range test mode just says "Range Check Mode, the Tx is set to low power mode, the distance reduced to 1/30.". Not sure what the R9 actually does in range test mode.

This fix doesn't fit in the ROM space for all transmitters, so need to fix that before it will appear in the nightly builds.

Wow, you are fast! I'll install and test it asap with one of my Devo 7E's. Thanks in advance!

Back from the field... Looking really good to me!

I tried the range check in the transmitter menu --> I could influence the RSSI by putting my body between the transmitter and RX
10mW --> just exactly like the range check. I'd say it's the same power level (didn't feel a difference)
100mW --> Some drop at 500m
500mW --> no drop at 1km +
1W/Auto --> I outflew the range of my 600mW VTX. No drop as long as I had video (should be 2km +)

I wonder what the module put out before (with bug). Felt like something between 10mW and 100mW.

Thanks for testing. That's good news.

With the bug the power command sent to the module was always set to 10mW. And if 10mW was selected on the screen, the R9 range test was enabled.

Since you mentioned the range was similar in range test mode and at the lowest power setting, the current message on the Range test screen is probably fine. I had added a separate message since the R9 has a separate range test mode. Without that change the fix can be applied for all transmitters. Created PR #878.

Well I have to thank you for your work! Testing was in my own best interest.
