PPM / CPPM Receiver

More
23 Jul 2013 04:30 #12441 by stevecox
Replied by stevecox on topic PPM / CPPM Receiver
Hi, yes I am using the new firmware, it does support cppm perfect off FrySky and some Flysky cppm receivers I have. But off the Satellite receiver you need the Tarot cable or make up a cord yourself, I will but haven't got there yet. Then the Satellite will work, just not directly into the KK2.0 board.

Adelaide

Please Log in or Create an account to join the conversation.

More
23 Jul 2013 05:10 #12442 by magic_marty
Replied by magic_marty on topic PPM / CPPM Receiver
so will the Lemon rx work as cppm with the 1.6++ firmware?

Please Log in or Create an account to join the conversation.

More
23 Jul 2013 13:07 #12449 by stevecox
Replied by stevecox on topic PPM / CPPM Receiver
The Lemonrx satellite should work no hastle BUT you need a Tarot cable as mentioned or build one yourself, there isn't a place to directly plug in the satellite rx. I don't have a Tarot cable but may make one up at the weekend and try this myself but it should be fine if you have one:
www.rcgroups.com/forums/showthread.php?t=1891324#post24983072

Adelaide

Please Log in or Create an account to join the conversation.

More
26 Nov 2013 21:52 #15880 by Ralf_Brandt
Replied by Ralf_Brandt on topic PPM / CPPM Receiver
Hi

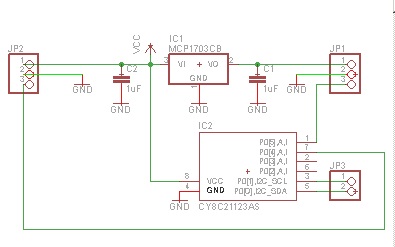

I made a little DSM satellite to CPPM converter.

It is manly just a microcontroller and a 3.3V voltage regulator.

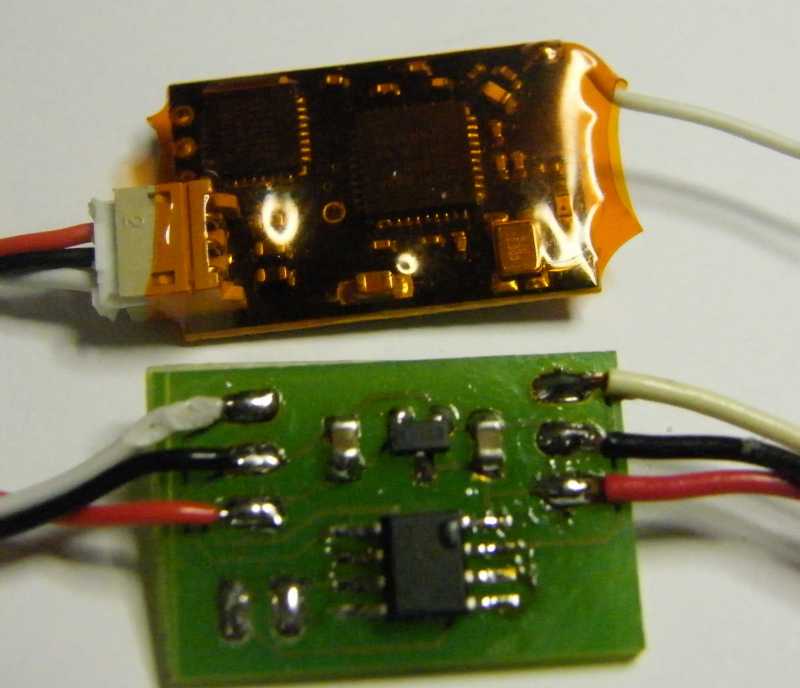

As you can see on the picture, the converter PCB has the same size as the R100 satellite (the upper PCB in the photo) so that both can be shrinked together.







I used a cypress microcontroller for three reasons:
1. I was unable to find an Atmel or Microchip 8-Pin micro with 16-bit PWM.
2. I always wanted to do something with the PSoC series.
3. The final goal is, to reprogram the R100 satellite so that it will directly output CPPM

At a typical pcb pool service you can get the pcb for approx. 3€/ per pcb, if you order 10 or more.
The CY8C21123 can be sourced for about 1 € if ordered in quantities of 10.
You need a CY3217 Miniprog1 for programming the micro.
The IDE and the compiler can be downloaded a cypress for free.

The converter is tested with an orangeRX R100 satellite receiver.
I used an LP5DSM and a deviation based TX for testing.

Currently the satellite is forced into bind mode each time you power up (that fits best to my LP5DSM), but that programming can be easily changed to have a jumper to activate bind mode (the two programming pins are unused during normal operation).


File Attachment:

File Name: DSM2PPM.zip
File Size:740 KB
Attachments:

Please Log in or Create an account to join the conversation.

More
01 Feb 2014 16:54 - 02 Feb 2014 19:33 #19598 by mj666
Replied by mj666 on topic PPM / CPPM Receiver

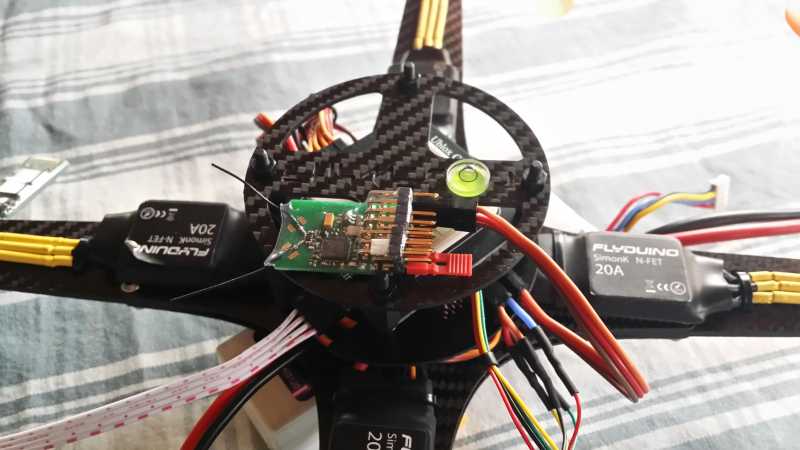

I'm actual using a Deltang Rx73 an my Rachel Quad. The FC is a MW32 which is compatible with the NAZE32. Initially I tried a Delatang Rx31 which was working in general but I was a bit worried about the range. I’m using a Devo 10 Transmitter. I also posted my configuration in the config area.

David from Deltang is very nice to work with.
Attachments:
Last edit: 02 Feb 2014 19:33 by mj666.

Please Log in or Create an account to join the conversation.

More
01 Feb 2014 21:41 - 01 Feb 2014 21:43 #19635 by Bamfax
Replied by Bamfax on topic PPM / CPPM Receiver
Hey Guys,

sorry for not letting hear from me earliert. David from Deltang sent me the prototype of Rx61a with the SumPPM RX in September and I have been using it ever since. It has 12 channels within the SumPPM Signal and a resolution of 1024. And what is especially great (David's idea) is that it also carries the RSSI signal within the SumPPM signal.

Roberto / Crashpilot1000 extended his "Harakiri" Port of the Baseflight firmware for the Naze32 multicopter board to read the RSSI signal as well. So I am now flying my X12 with it ;)
http://fpv-community.de/attachment.php?attachmentid=68727&d=1378584748

Here is a picture of David's RX (left), compared to a spektrum satellite (middle) and an Orange RX.
http://fpv-community.de/attachment.php?attachmentid=68068&d=1377958085

More here (sorry, only in german):
FPCV.de
Last edit: 01 Feb 2014 21:43 by Bamfax.

Please Log in or Create an account to join the conversation.

More
11 Sep 2014 08:50 #25612 by thwaitm
Replied by thwaitm on topic PPM / CPPM Receiver
Ancient topic but just in case anyone ends up as I did after a quick Google... LemonRX now have an 8ch PPM RX.
At the time of post it could be found here:
www.lemon-rx.com/shop/index.php?route=pr...th=72&product_id=118

I have one connected to my Naze and it works nicely.

Please Log in or Create an account to join the conversation.

More
22 Feb 2015 12:00 #28995 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver
i have a 8channel lemon PPM+UART but when i tried it with APM (shorting channel 2 and 3) I didn't get any visible input in Mission Planner.

I have not understood if this receiver is supposed to work with apm in ppm mode or not. Thank you!

Please Log in or Create an account to join the conversation.

More
22 Feb 2015 22:15 #29021 by robca
Replied by robca on topic PPM / CPPM Receiver
I have a working configuration using the older DSM2 6 channel PPM Lemon RX and an APM.

How are you connecting the Lemon RX to the APM? What model of the PPM receiver do you have?

Please Log in or Create an account to join the conversation.

More
22 Feb 2015 22:19 - 22 Feb 2015 22:21 #29022 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver
I have this:

www.lemon-rx.com/shop/index.php?route=pr...=59_70&product_id=97


8 CHANNEL DSM2 UART
can you confirm that this receiver can't output the PPM that APM needs? Thank you!
Last edit: 22 Feb 2015 22:21 by matrixFLYER.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 02:20 #29027 by Arakon
Replied by Arakon on topic PPM / CPPM Receiver
That receiver does NOT have PPM Output. It has a serial output that pretty much no flight controller supports.
The only PPM receiver lemonRX have available is the one linked above by thwaitm.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 08:55 #29037 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver
Thank You. It's very expensive :(

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 15:49 - 23 Feb 2015 15:54 #29044 by robca
Replied by robca on topic PPM / CPPM Receiver
$30 for a DSMX PPM receiver and a satellite is pretty darn cheap, actually :)

The next closest thing is a FrSky D4R-II that, even if it offers only 4 channels over PWM, it has 8 PPM channels. But requires a CC2500 module in your Devo, and even so the receiver needs to be flashed with the 27msec firmware, added pain

Next, you could buy an Orange DSMX/S.BUS receiver (for not much less, once you add the crazy Hobbyking shipping charges), and that gives you S.BUS. If you are willing to reflash your CPPM converter on the APM (requires special handling) with a semi-unoffical SBUS firmware, it works (kinda: there are problems as noted in the comments on the video below). But not only you have just the receiver without the satellite (and need to reflash the small AtMega chip in addition), you have to put up with HK's awful support, instead of the super-nice Lemon Rx people

Beyond that, you are looking to spend twice as much...

But your 8 CH Rx works just fine with the APM, just connect the PWM inputs and everything works just fine)


Last edit: 23 Feb 2015 15:54 by robca.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 15:52 - 23 Feb 2015 15:53 #29045 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver
Super great explanation :)
Thank You!

So I'll stay with pwm and maybe later I'll get a ppm lemon.
Last edit: 23 Feb 2015 15:53 by matrixFLYER.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 15:52 #29046 by aMax
Replied by aMax on topic PPM / CPPM Receiver
There are some RX that work quite nice with CPPM.
1. 6ch; Storm S603
2. 7ch; Storm F701

I have the S603 and it has an amazing range.

www.banggood.com/2_4G-6CH-S603-Receiver-...mitter-p-961733.html

Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 15:55 #29047 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver

aMax wrote: There are some RX that work quite nice with CPPM.
1. 6ch; Storm S603
2. 7ch; Storm F701

I have the S603 and it has an amazing range.

www.banggood.com/2_4G-6CH-S603-Receiver-...mitter-p-961733.html

Wonderful. So do they work with apm right?

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 16:14 - 23 Feb 2015 16:26 #29048 by aMax
Replied by aMax on topic PPM / CPPM Receiver
The only weakness is the failsafe.
On my RX615X all but CH3(failsafe) go to neutral.

On the S603 (failsafe ch3) the last input on all channels but CH3 persists.
I will try to program the my 7e with failsafe on the other channels with neutral
output and rebind the rx.
Got this rx two days ago and had no time to do this, only did a range test.

Works with the CC3D & Flip32_Plus.

EDIT:
What is this guy doing? Telemetry on the PPM port?

Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02
Last edit: 23 Feb 2015 16:26 by aMax.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 18:57 #29051 by jesmail
Replied by jesmail on topic PPM / CPPM Receiver
Also the Devo RX703A works nicely. I use it with the APM and the Pixhawk controllers. Channel 5 is hard coded as fail safe.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 23:04 - 23 Feb 2015 23:20 #29055 by robca
Replied by robca on topic PPM / CPPM Receiver

aMax wrote: There are some RX that work quite nice with CPPM.
1. 6ch; Storm S603
2. 7ch; Storm F701

I have the S603 and it has an amazing range.

www.banggood.com/2_4G-6CH-S603-Receiver-...mitter-p-961733.html


Uh, interesting, learned one new thing today, thanks...

But 6 channels are really not enough for an APM, and the F701 (without satellite) costs pretty much as much as a 10 Ch LemonRx with a satellite (and 10 channels are much better than 7 for APM, since you can have channel passthru for things like a gimbal)

So, in the end, the Lemon Rx is still the best deal, if you need a CPPM receiver for the APM
Last edit: 23 Feb 2015 23:20 by robca.

Please Log in or Create an account to join the conversation.

More
23 Feb 2015 23:20 - 23 Feb 2015 23:26 #29056 by matrixFLYER
Replied by matrixFLYER on topic PPM / CPPM Receiver

robca wrote: Uh, interesting, learned one new thing today, thanks...

But 6 channels are really not enough for an APM, and the F701 (without satellite) costs pretty much as much as a 10 Ch LemonRx with a satellite (and 10 channels are much better than 7 for APM, since you can have channel passthru for things like a gimbal)

So, in the end, the Lemon Rx is still the best deal, if you need a CPPM receiver for the APM


Sure! But the 6 channel Storm S603 is a very good deal for 12USD you get DSMX, PPM and a bigger range. For other uses where six channel are OK this is a real deal I think.

EDIT: look like GLB has the 8ch version for only 17 usd!!!
www.goodluckbuy.com/f801-dsm2-dsmx-8ch-r...-replace-ar8000.html
Last edit: 23 Feb 2015 23:26 by matrixFLYER.

Please Log in or Create an account to join the conversation.
