button matrix and Jog Dial

Start
Prev
1
Next
End

kenkenlau
Topic Author
Offline

25 May 2013 18:32 #10301 by kenkenlau

button matrix and Jog Dial was created by kenkenlau

I am looking into the tx_buttons.c and quite confusing about the buttonmap[] declare. In Eclipse it say BUT_LEFT unresolved......dont know where BUT_XXXX are declared.

And if I wish to add jog dial support, am I looking at the right place?

Thanks

Please Log in or Create an account to join the conversation.

rbe2012
Offline
So much to do, so little time...

25 May 2013 18:59 #10302 by rbe2012

Replied by rbe2012 on topic button matrix and Jog Dial

Look into the capabilities.h - there are the buttons defined. The construct used there was not easy to understand for me, but it is quite brilliant: the capabilities.h is included in other files where a "#define"-directive tells what to do with the information: the buttons are defined in inputs.c:

const char *INPUT_ButtonName(u8 button)
{
    if (! button) {
        return _tr("None");
    }
    #define BUTTONDEF(x) case BUT_##x : return BUTNAME_##x;
    switch(button) {
        #include "capabilities.h"
    };
    #undef BUTTONDEF
    return "";
}

Please Log in or Create an account to join the conversation.

rbe2012
Offline
So much to do, so little time...

25 May 2013 19:01 #10303 by rbe2012

Replied by rbe2012 on topic button matrix and Jog Dial

Oh, for a jog dial don't you need two input lines? Aren't they phase-shifted to recognize the direction? Or do you mean something else?

Please Log in or Create an account to join the conversation.

kenkenlau
Topic Author
Offline

25 May 2013 19:30 #10304 by kenkenlau

Replied by kenkenlau on topic button matrix and Jog Dial

yes, phase shifted for direction. plus a push in button.

So i think need to modify some code to detect the phase. In assembly, it is very simple with a -ve edge IRQ

EXINT1_ISR:		//Update_JogAB via IRQ
	push	PSW
	mov		C, port_JogB
	mov		bit_JogA, C
	cpl		C
	mov		bit_JogB, C
	pop		PSW
reti

but in C++ I am still learning how to implement it.
Worst case is adding a tiny MCU to feed in the button matrix, but I think its a stupid idea.

If the code is done, I may build a 3D printing button that can replace the ENT button. so that the ENT button can roll and press.

Please Log in or Create an account to join the conversation.

kenkenlau
Topic Author
Offline

25 May 2013 19:33 #10305 by kenkenlau

Replied by kenkenlau on topic button matrix and Jog Dial

rbe2012 wrote: Oh, for a jog dial don't you need two input lines? Aren't they phase-shifted to recognize the direction? Or do you mean something else?

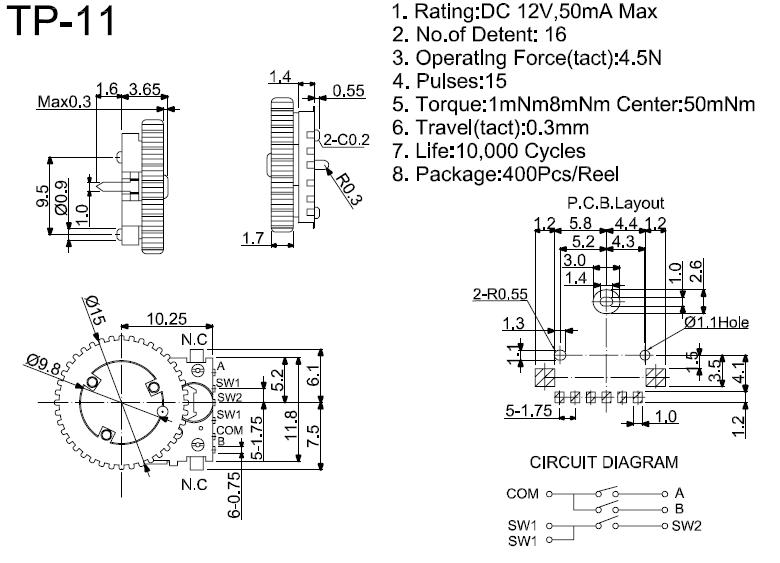

using this one.

Please Log in or Create an account to join the conversation.
