4 in 1 module install on Devo 8s

More
21 May 2017 22:00 #62481 by Desode
4 in 1 module install on Devo 8s was created by Desode
Hello everyone,
Tonight I'm going to add the 4 in module to my devo 8s.

I am assumming there is no exact tutorial on here for doing this on the 8s because it is just like doing so on one of the other Devo transmitters.

Which tutorial should I use to do this mod on the 8s?

Also will the .ini file be setup the same as one of those other radios for my 8s?

I plan on filming it for my youtube channel also and when it is done I will make a post here for anyone else that is doing the same for their Devo 8s.

Thanks for your time and consideration,
Sincerely Desode

Please Log in or Create an account to join the conversation.

More
21 May 2017 22:57 #62482 by magic_marty

Please Log in or Create an account to join the conversation.

More
22 May 2017 00:58 #62483 by Desode
Replied by Desode on topic 4 in 1 module install on Devo 8s

magic_marty wrote: www.deviationtx.com/forum/7-development/...-rf-module?start=860



Ah Excellent, so the 8s is the same as the 10 and 12 pretty much.



Thanks for the link!

Please Log in or Create an account to join the conversation.

More
22 May 2017 06:46 #62484 by Desode
Replied by Desode on topic 4 in 1 module install on Devo 8s
After very much reading and searching over the last 3+hours by starting from the link above, it appears I have to take
2401 = B3 on the MCU (Scary stuff!)

Honestly that is some wicked dangerous soldering there! Good Lord!

Can the 4 in 1 module be used at all by just connecting the other 2 easy to solder wires?
AND
If you can just connect 2 wires and not the third brutal one to the MCU pin,, what protocols would I not have by just doing the easy two connections?

Honestly I mostly use spectrum, however, I am currently about to start a very important Nano Quad build that uses the new 16X16mm Micro F3 Flight Control Board with Built-in 8CH SBUS Receiver for Frsky X9D Plus.
(Only FC option was one with this receiver)

I need to be able to bind to that Frsky X9D Plus and that is my main reason for installing this 4 in 1 module.

Any wisdom on this and can that be accomplished with just soldering the easy two connections?

Thanks , Sincerely Dez

Please Log in or Create an account to join the conversation.

More
22 May 2017 09:02 #62486 by Fernandez
Replied by Fernandez on topic 4 in 1 module install on Devo 8s
No need to install all CSN pins, just select the chips you like and configure hardware.ini accordingly. But you'll loose all protocols using that chip.
FI, you could decide not to hook up, the a7105 csn line? (Flysky )

Please Log in or Create an account to join the conversation.

More
22 May 2017 09:27 #62487 by Desode
Replied by Desode on topic 4 in 1 module install on Devo 8s

Fernandez wrote: No need to install all CSN pins, just select the chips you like and configure hardware.ini accordingly. But you'll loose all protocols using that chip.
FI, you could decide not to hook up, the a7105 csn line? (Flysky )


So Glad to have you answer Fernandez!
Finally some Wisdom comes my way.
I am still reading,, my eyes are bleeding! LOL

That is very good news,so let me make sure I have this right.
1. I don't need to solder onto the MCU, however I must give up one of the chips because the third wire to the MCU is not soldered.

I was thinking exactly what you said,,as I have no need for the A7105 (Flysky, Husband, Joysway Correct?)
yet would like the other 3.

In order to give up the 7105
I would do the following:

The 7105 on the 4 in 1 module is the one I don't connect, So I then wire the other two like
2401 = TMS pad (A13)
2500 = TCK pad (A14)

and the 6936 which holds the Spektrum is already on the pin plug ?

If I have that correct in my head! ^^^^^^^^^^^^^^^^^^^^^^^^^ Yes or No?

How do I change the .ini so that all works.


Thanks SO very Very Much for your reply.
My hillbilly brain is starting to see the light after 3 quad Espressos and your confirmation! HAHA

Sincerely Dez

Please Log in or Create an account to join the conversation.

More
22 May 2017 09:47 - 22 May 2017 09:56 #62488 by Desode
Replied by Desode on topic 4 in 1 module install on Devo 8s
Would this work for a correct .ini

;Only useful for transmitters with an after-market vibration motor
;enable-haptic=1
;
;switch_types: 3x2, 3x1, 2x2
;extra-switches=
;
[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
enable-cyrf6936 = B12
has_pa-cyrf6936 = 1
enable-a7105 = B3
has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = A13
has_pa-nrf24l01 = 1
; enable-multimod = A13

All I change in the .ini is
enable-a7105 = A13 to enable-a7105 = B3
and
enable-nrf24l01 = B3 to enable-nrf24l01 = A13

Its the above .ini correct then for how it would be without the 7105 chip being used?
or do I also put a ; in front of the enable-a7105 = B3 so that it is blocked?

Sincerely Dez
Last edit: 22 May 2017 09:56 by Desode.

Please Log in or Create an account to join the conversation.

More
22 May 2017 12:08 #62489 by Fernandez
Replied by Fernandez on topic 4 in 1 module install on Devo 8s
I do not own a devo 8s, so not know the pins, but basically it doesn't matter which CPU pin you connect to which CSN (chip select) pin of the Tx module, as long as in the hardware.ini, you define the correct pin to the correct RF module. So the pins you have avaiilabble, just connect them you like.....

You can even trial and error inside hardware.ini won't damage anything, do not forget to use notepad++, as txt editor as just ordinairy notepad, won't work.

Please Log in or Create an account to join the conversation.

More
22 May 2017 12:16 #62490 by Desode
Replied by Desode on topic 4 in 1 module install on Devo 8s

Fernandez wrote: I do not own a devo 8s, so not know the pins, but basically it doesn't matter which CPU pin you connect to which CSN (chip select) pin of the Tx module, as long as in the hardware.ini, you define the correct pin to the correct RF module. So the pins you have avaiilabble, just connect them you like.....

You can even trial and error inside hardware.ini won't damage anything, do not forget to use notepad++, as txt editor as just ordinairy notepad, won't work.


I got it just before you posted,, tweaked the Hardware.ini to this and looks like I nailed it on the first try.

I just flew my very first quad that I ever owned,, the SYMA X12S !
That tells me the mod is working!

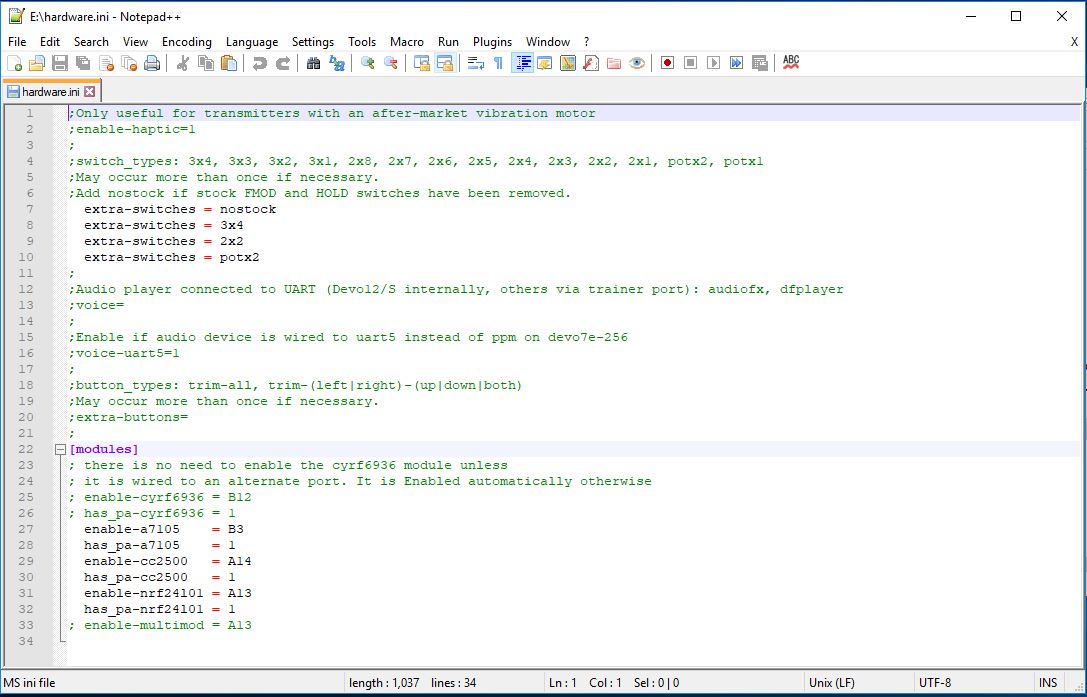

For anyone that has a Devo 8S and wants to do this like I did, here is my Hardawre.ini written and attached below.

;Only useful for transmitters with an after-market vibration motor
;enable-haptic=1
;
;switch_types: 3x2, 3x1, 2x2
;extra-switches=
;
;button_types: trim-all, trim-(left|right)-(up|down|both)
;May occur more than once if necessary.
;extra-buttons=
;
[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
; enable-cyrf6936 = B12
; has_pa-cyrf6936 = 1
; enable-a7105 = B3
; has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = A13
has_pa-nrf24l01 = 1
; enable-multimod = A13

Thanks to you two guys that helped me and confirmed I was on the correct track!

Sincerely Dez
Attachments:

Please Log in or Create an account to join the conversation.

More
12 Jan 2019 14:29 #72299 by retiredfist
Replied by retiredfist on topic 4 in 1 module install on Devo 8s


Dear All,

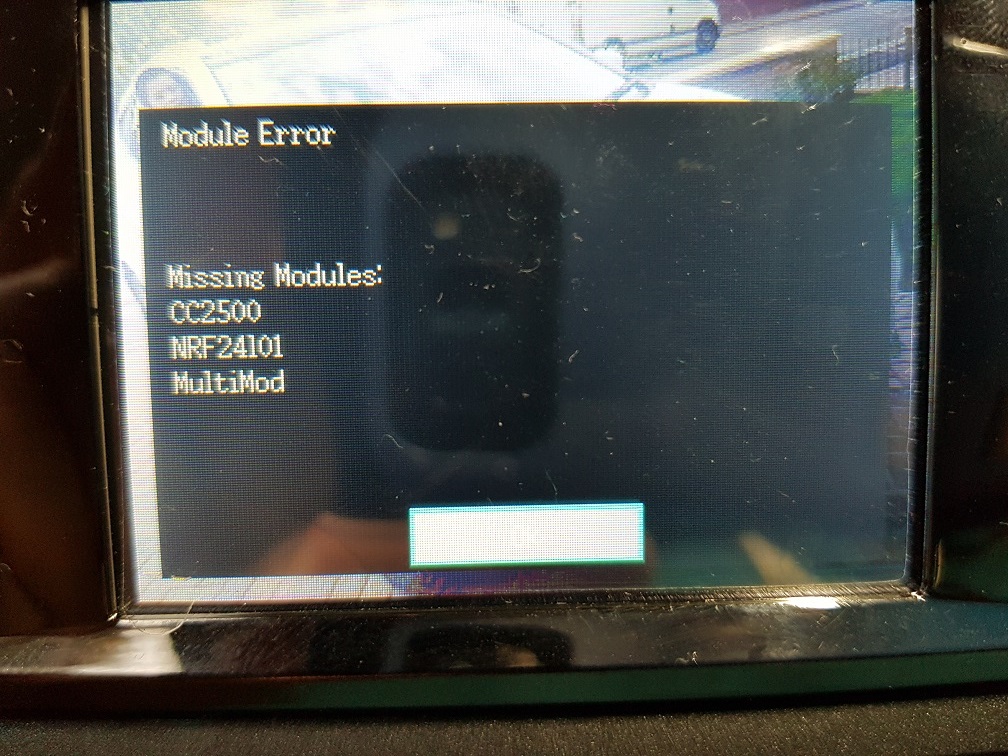

I tried this on my Devo 8S but it's not working. I get an error of missing modules.

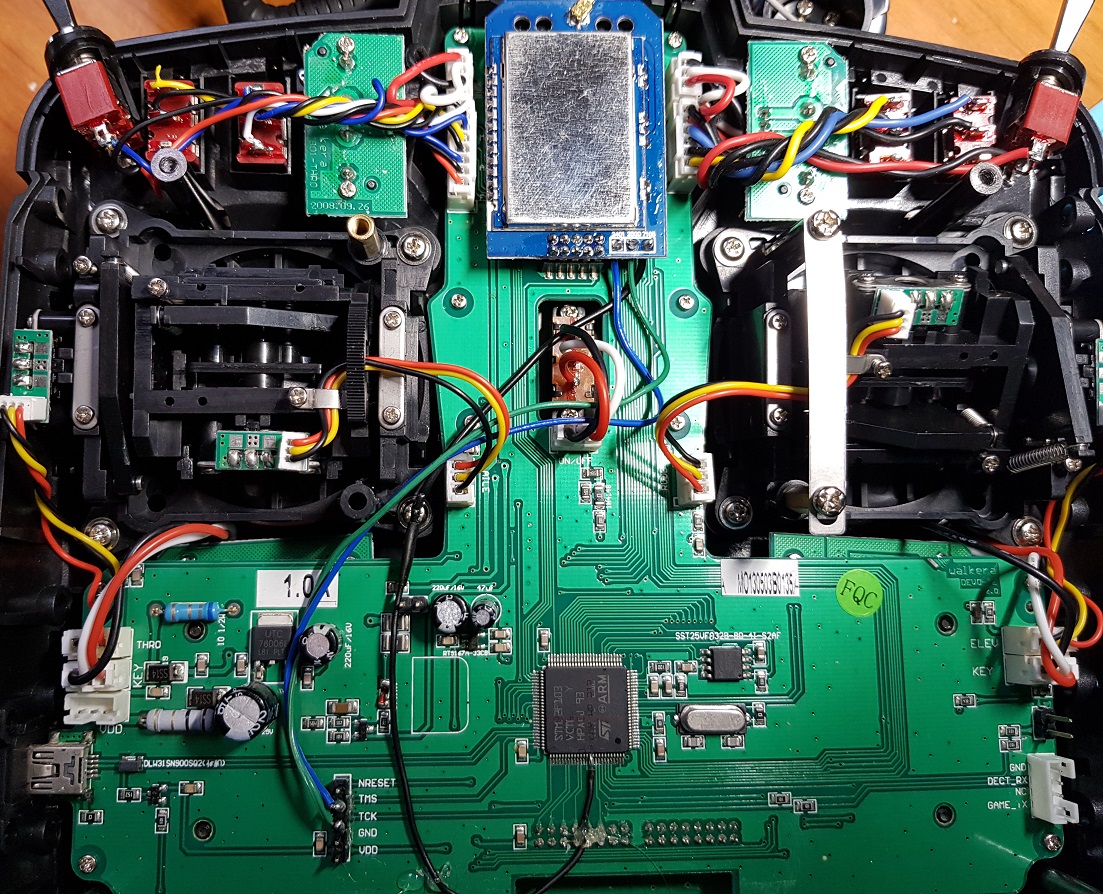

I have

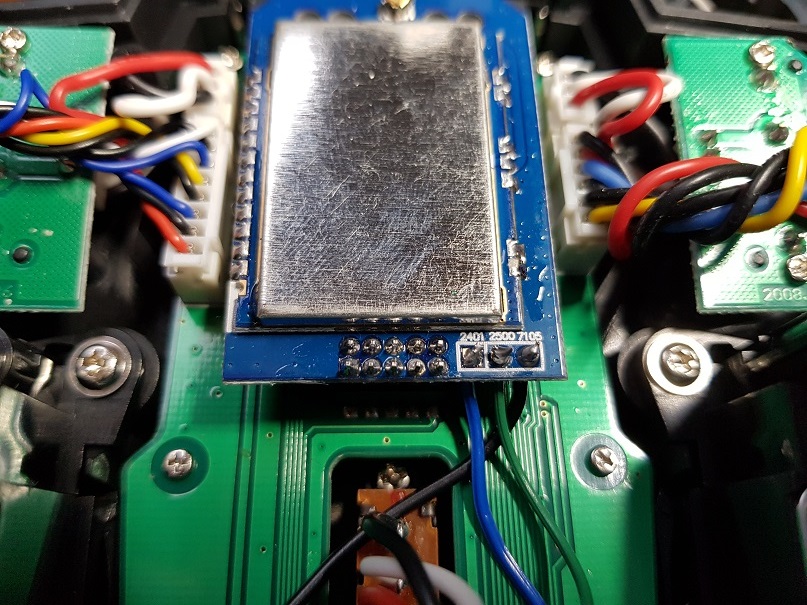

2401 connects to TMS (blue cable)
2500 connects to TCK (green cable)

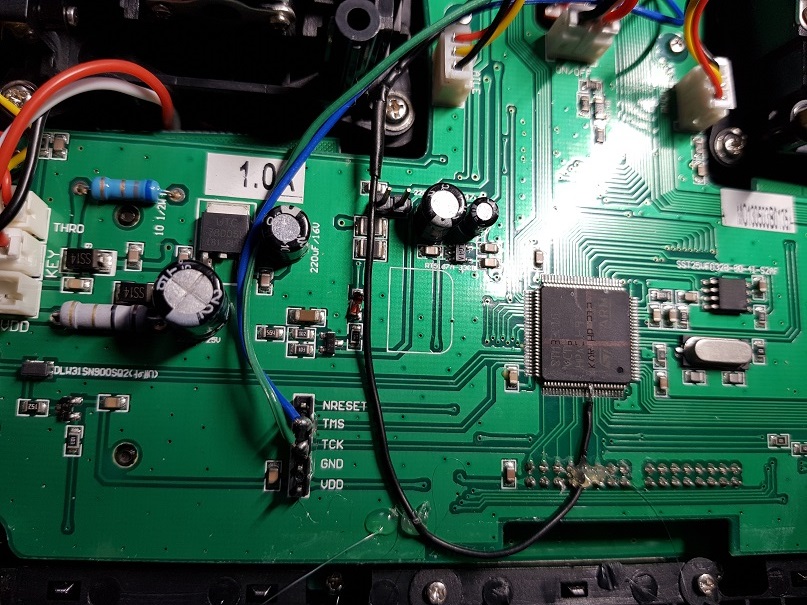

7501 connects to MCU (black cable)

Please Log in or Create an account to join the conversation.

More
12 Jan 2019 15:55 #72300 by vlad_vy
Replied by vlad_vy on topic 4 in 1 module install on Devo 8s
It looks like you connect two pins on MCU. Use thinner wire to connect to MCU pin.

Please Log in or Create an account to join the conversation.

More
12 Jan 2019 19:13 #72302 by retiredfist
Replied by retiredfist on topic 4 in 1 module install on Devo 8s

vlad_vy wrote: It looks like you connect two pins on MCU. Use thinner wire to connect to MCU pin.


Thanks a lot Vlad_vy, you're a genius! :) it was my bad soldering shorting out the 2 pins. Once isolated the problem was resolved. Took me 3 hours to re-solder that 1 MCU pin.
I don't really have the professional soldering equipment please I'm almost 50 so my hands are not as steady.
