Confusion in Trim

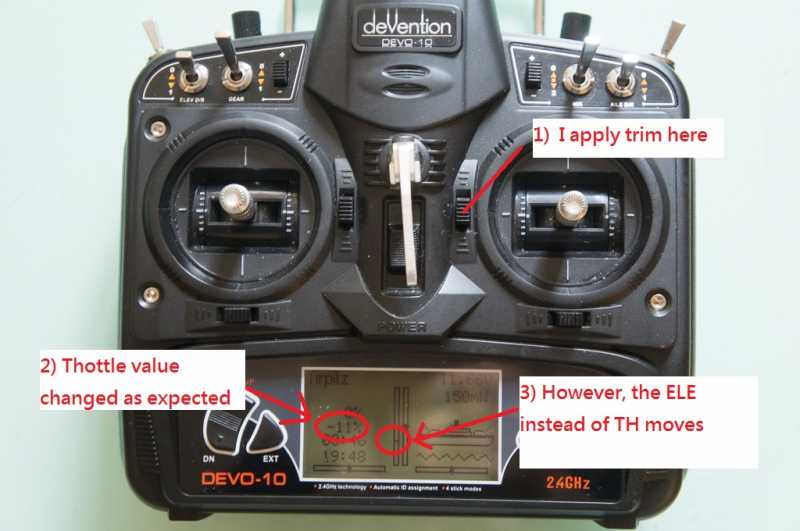

Come back to the TRIM function. I am flying in Mode 1, that is Thottle on Right and ELE on Left.

My TRIM page is:





and the trimming action :




you see the trimming works as if the Trim knob operates in Mode 1 (Thottle in Right hand side trim) but the graphicall dispaly in Mode 2 (Thottle in Left hand side)

I think trims bars display don't care about the Mode ... left vertical trim bar is the throttle trim whatever is the TX Mode ....
[EDIT] Oups sorry I just test it on my Devo10, it works! If I change my TX mode (from 2 to 1), TH trim bar become the right vertical one ...
In fact the bug come from the TRIM Config Page .. If you are in Mode 1, You have to setup the ELE INPUT to setup the throttle TRIM ...
In your actual config (Mode 1), you will probably see (on the Channel output page) that when you act on the left vert trim, this is the ELE output which is affected.

domcars0 wrote: I think trims bars display don't care about the Mode ... left vertical trim bar is the throttle trim whatever is the TX Mode ....
[EDIT] Oups sorry I just test it on my Devo10, it works! If I change my TX mode (from 2 to 1), TH trim bar become the right vertical one ...

I think it is natural to expect the trim bar display should sit on the same side of the trim knob...

Sorry, you are right, after several tests the issue is well from the display
which don't care about the TX Mode...

I think the assumption of cmpang is really natural.
I propose you file a ticket at bitbucket.

FDR wrote:

domcars0 wrote: Sorry, you are right, after several tests the issue is well from the display
which don't care about the TX Mode...

No, I think the display causing the error, because it DOES care about the tx mode which it shouldn't do, that's why it mixes up the bars.

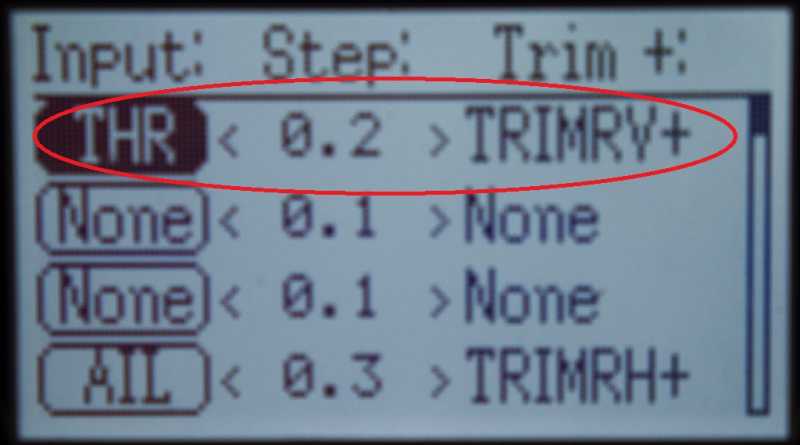

On the trim page cmpang has configured TRIMRV+ (and TRIMRV-) for the throttle trim, which is correct. It means "TRIM Right Vertical", so it should also always displayed at the right vertical bar...

yes the actual trim is correct as you can see in the display box showing a new value of -11%
it is the display that caused the confusion and is major cause you have no time to think when trimming a plane, especially during a maiden flight

I am working on a new gui for Devo12 now and the trim association is a point which did not work straight forward so I decided to solve this later.
But when something does not behave as I expected maybe my code works correct but does simply produce not the same results as deviation does actually?
I am really interested in the result, but my testing facilities are limited until the evening.

FDR wrote:

domcars0 wrote: Sorry, you are right, after several tests the issue is well from the display
which don't care about the TX Mode...

No, I think the display causing the error, because it DOES care about the tx mode which it shouldn't do, that's why it mixes up the bars.

You're right ...

Hey,
I think I've just understand the trim setup (strange) Logic.
In fact, on the Config Trim Page :
The line number is the display bar trim Number which are numered like this :
#1 = Left Vert Display Bar TRIM
#2 = Right Vert Display Bar TRIM
#3 = Left Horiz Bar DisplayTRIM
#4 = Right Horiz Bar DisplayTRIM
#5 = Second Left Vert DisplayBar TRIM
#6 = Second Right Vert Bar Display TRIM

This seems to be due to the fact that it is possible to setup a trim
with 2 differents buttons trim (sorry for my frenglish)
For example (to be clearer)
Input: <THR>
Trim -: TRIMLV-
Trim +: TRIMRH+
Trim Step: <0.1>

domcars0 wrote: Hey,
I think I've just understand the trim setup (strange) Logic.
In fact, on the Config Trim Page :
The line number is the display bar trim Number which are numered like this :
#1 = Left Vert Display Bar TRIM
#2 = Right Vert Display Bar TRIM
#3 = Left Horiz Bar DisplayTRIM
#4 = Right Horiz Bar DisplayTRIM
#5 = Second Left Vert DisplayBar TRIM
#6 = Second Right Vert Bar Display TRIM

This seems to be due to the fact that it is possible to setup a trim
with 2 differents buttons trim (sorry for my frenglish)
For example (to be clearer)
Input: <THR>
Trim -: TRIMLV-
Trim +: TRIMRH+
Trim Step: <0.1>

thanks for your effort domcars0, In fact, the line number ordering of the TRIM page was raised one month ago:

www.deviationtx.com/forum/3-feedback-que...set-up-the-trim#7110

technically speaking, your example can be done for sure.. but in practice, why we have to do it that way?

PhracturedBlue wrote: I can't duplicate this behavior on the devo7e, 8, 10, or 12.
Is it still possible to reproduce this? As far as I know, I didn't apply any patches that would change the behavior.

The right-trim is always tied to the right bar for me. If you can reproduce it, please provide a model.ini and tx.ini that shows the behavior.

As far as why the trim can have different +/- values it is due to the original plan for virtual channels which will eventually use the same system.

something very strange that while I attemp to flash my D10 back to Deviation v3 (along with updating fs) from the suv version, the transmitter keep popping up a Ch3 warning despite I attempt to bypass it by pressing ENT..
