Devo 12 disassembled with pictures

More
22 May 2019 05:43 #74374 by tinynja98
Devo 12 disassembled with pictures was created by tinynja98
Hello, I was going to post a topic about a problem I had with my devo 12, but when I opened it and messed around with the connections the problem got solved. Meanwhile I took this opportunity to take a few pictures of the inside of my devo 12 for future use (lol jk i just don't know how to reconnect all those wires), and I figured someone could find them useful as well, so here they are!

Note: I had to compress the images to post them on the deviationtx forum, so here is a link to the original pictures on imgur .

Please Log in or Create an account to join the conversation.

More
22 May 2019 06:03 #74375 by tinynja98
Replied by tinynja98 on topic Devo 12 disassembled with pictures

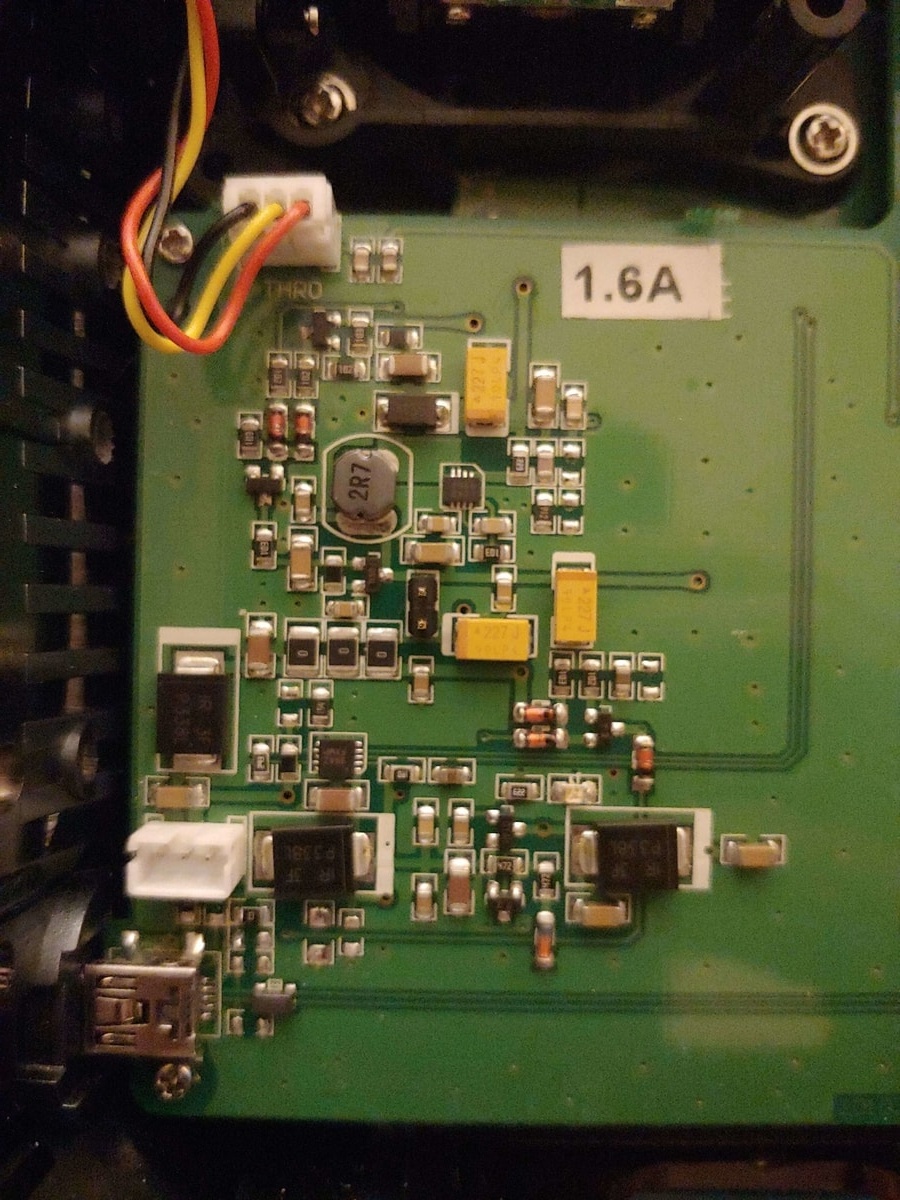

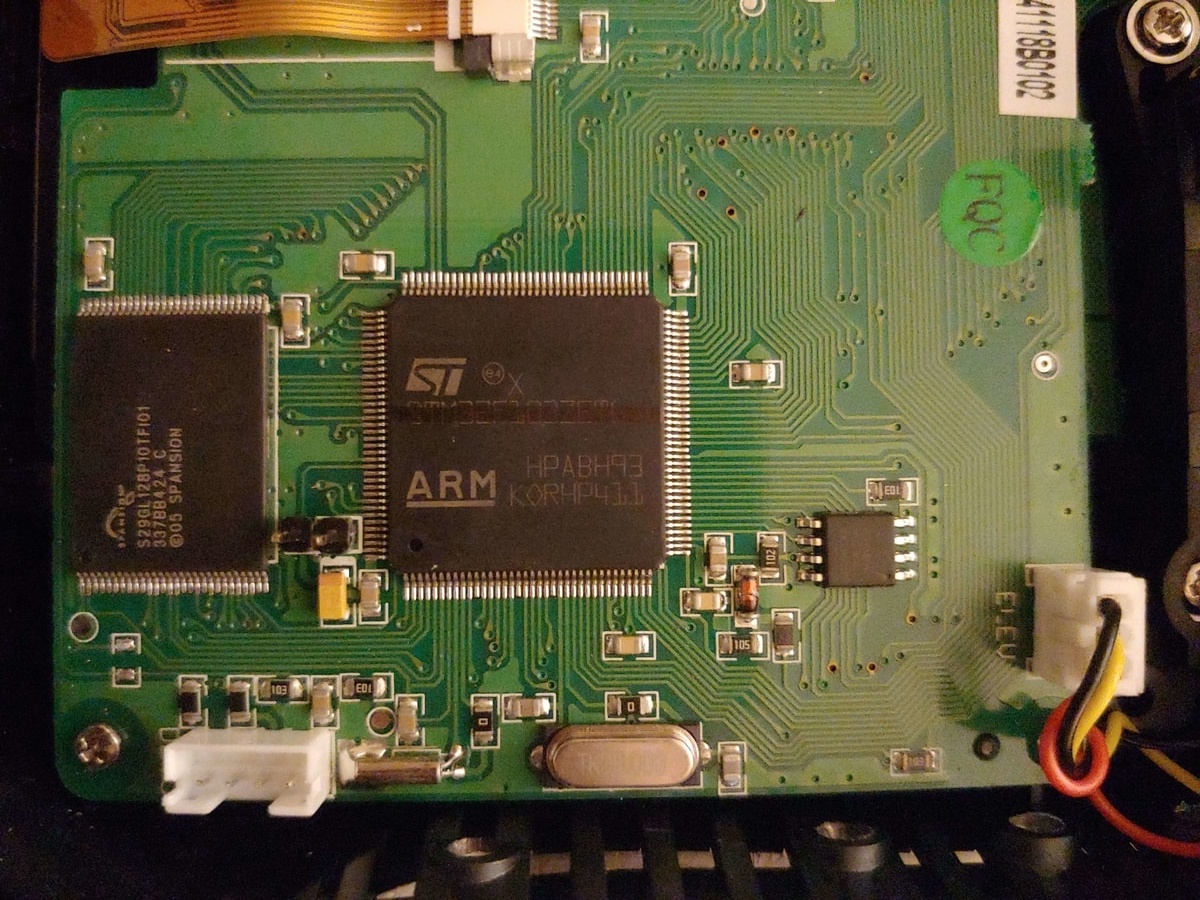

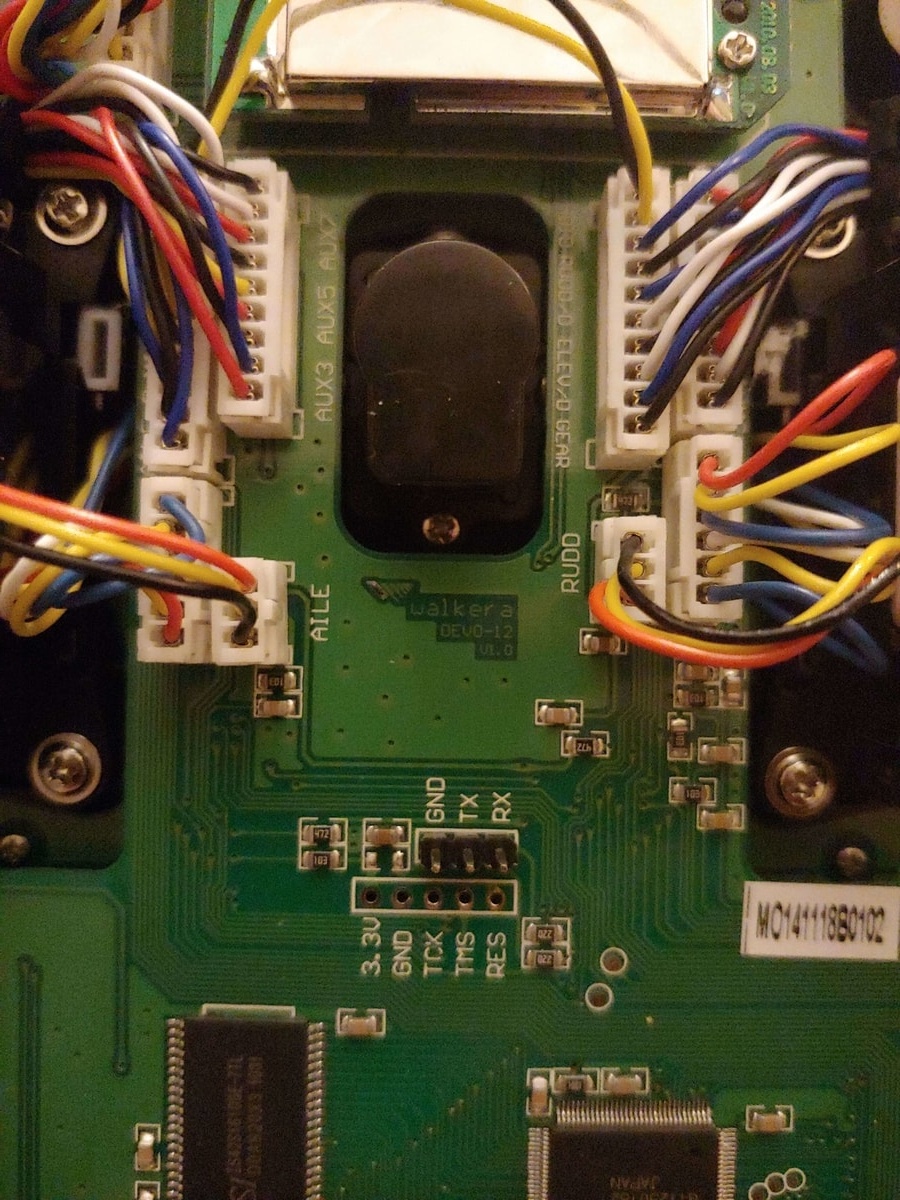

1st set of pictures

Please Log in or Create an account to join the conversation.

More
22 May 2019 06:05 #74376 by tinynja98
Replied by tinynja98 on topic Devo 12 disassembled with pictures

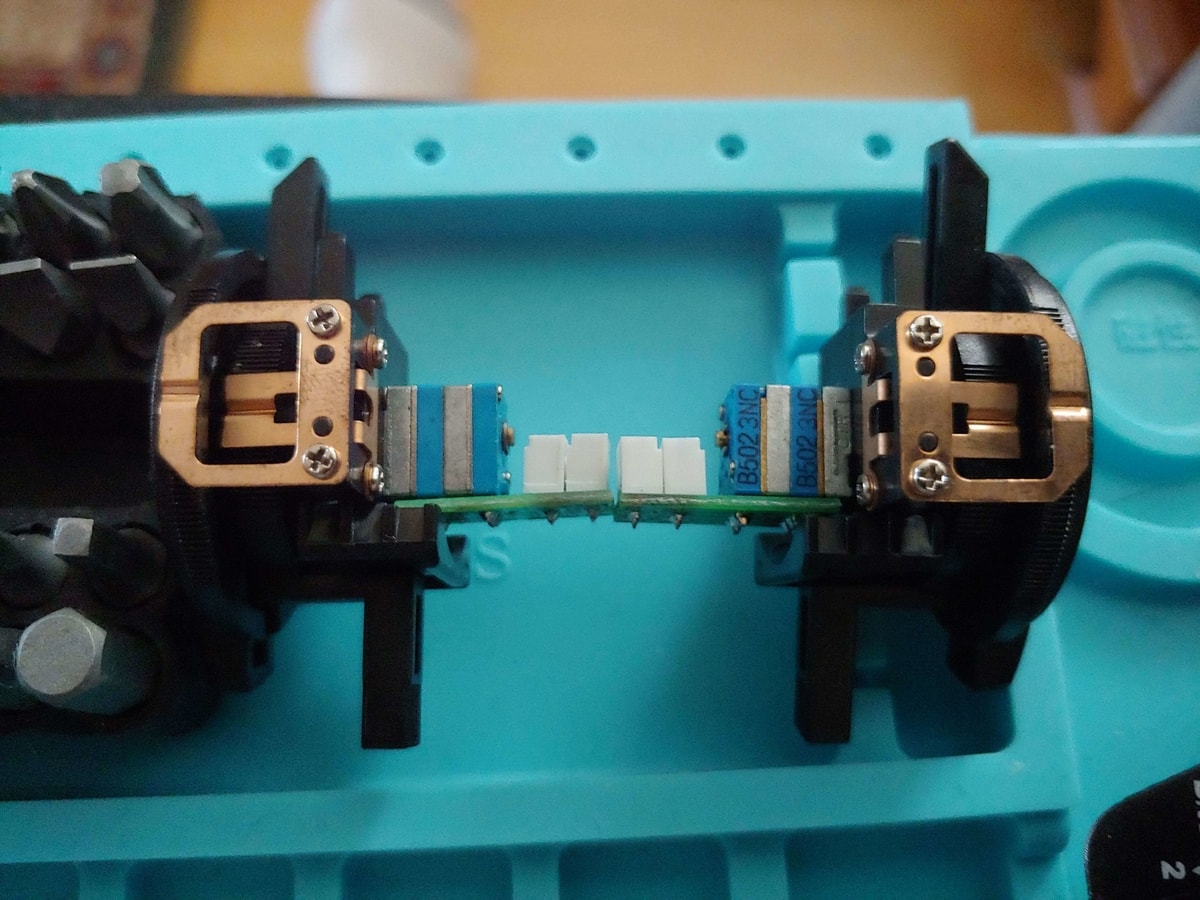

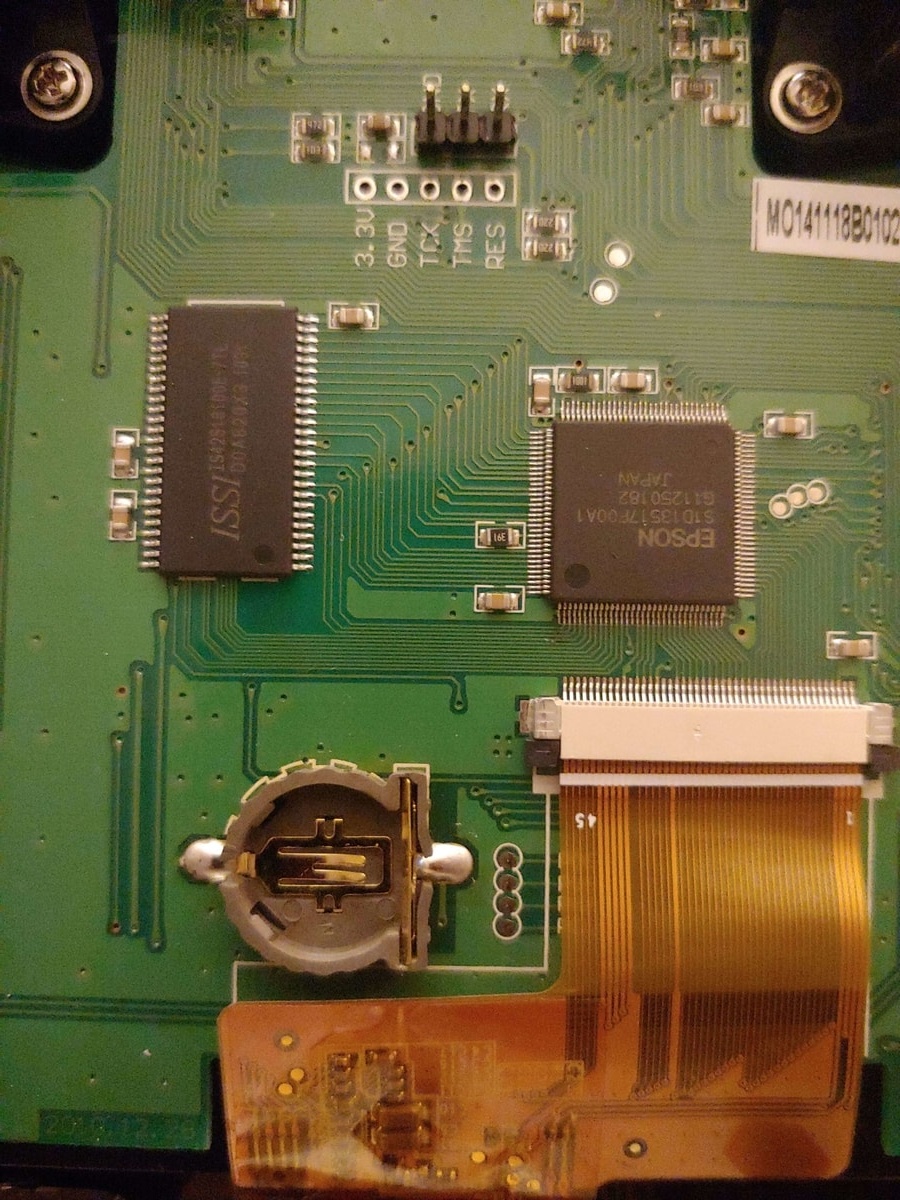

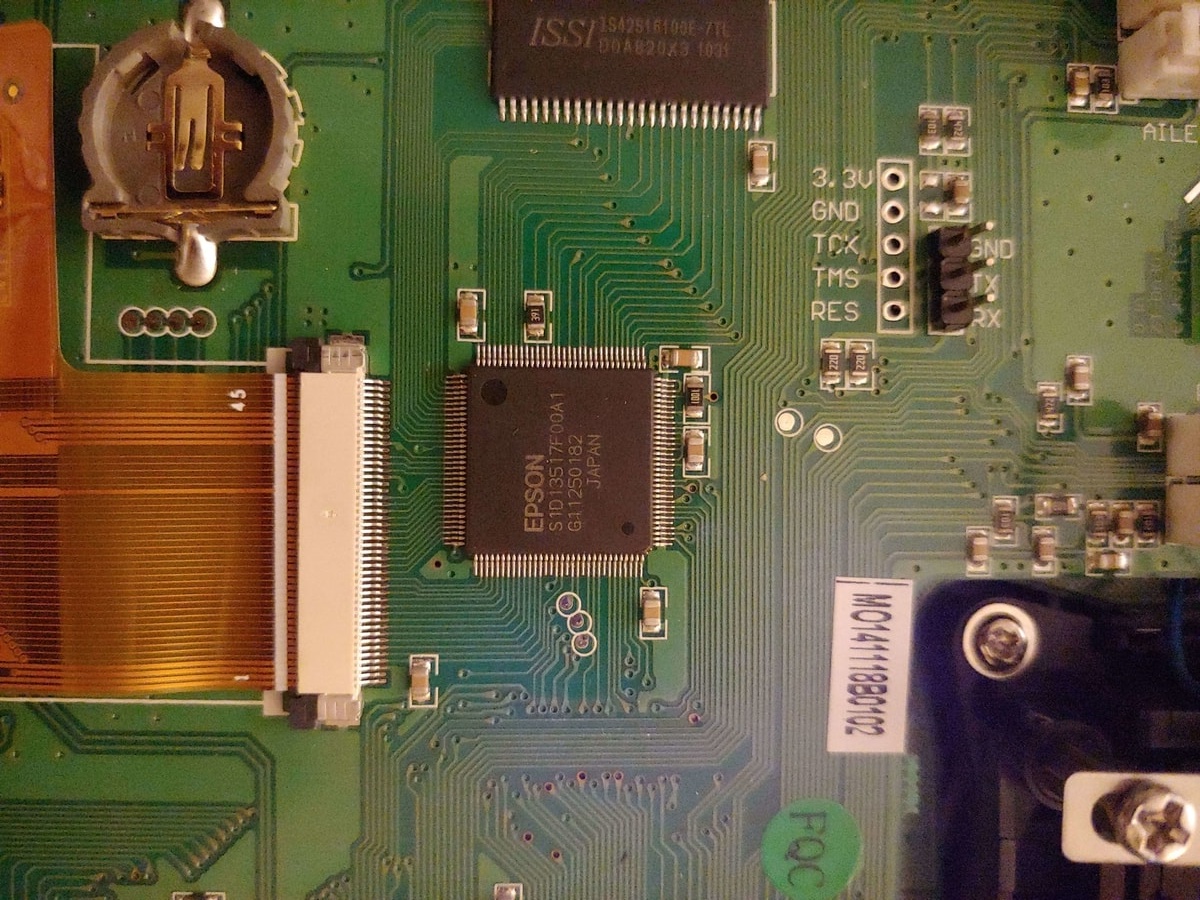

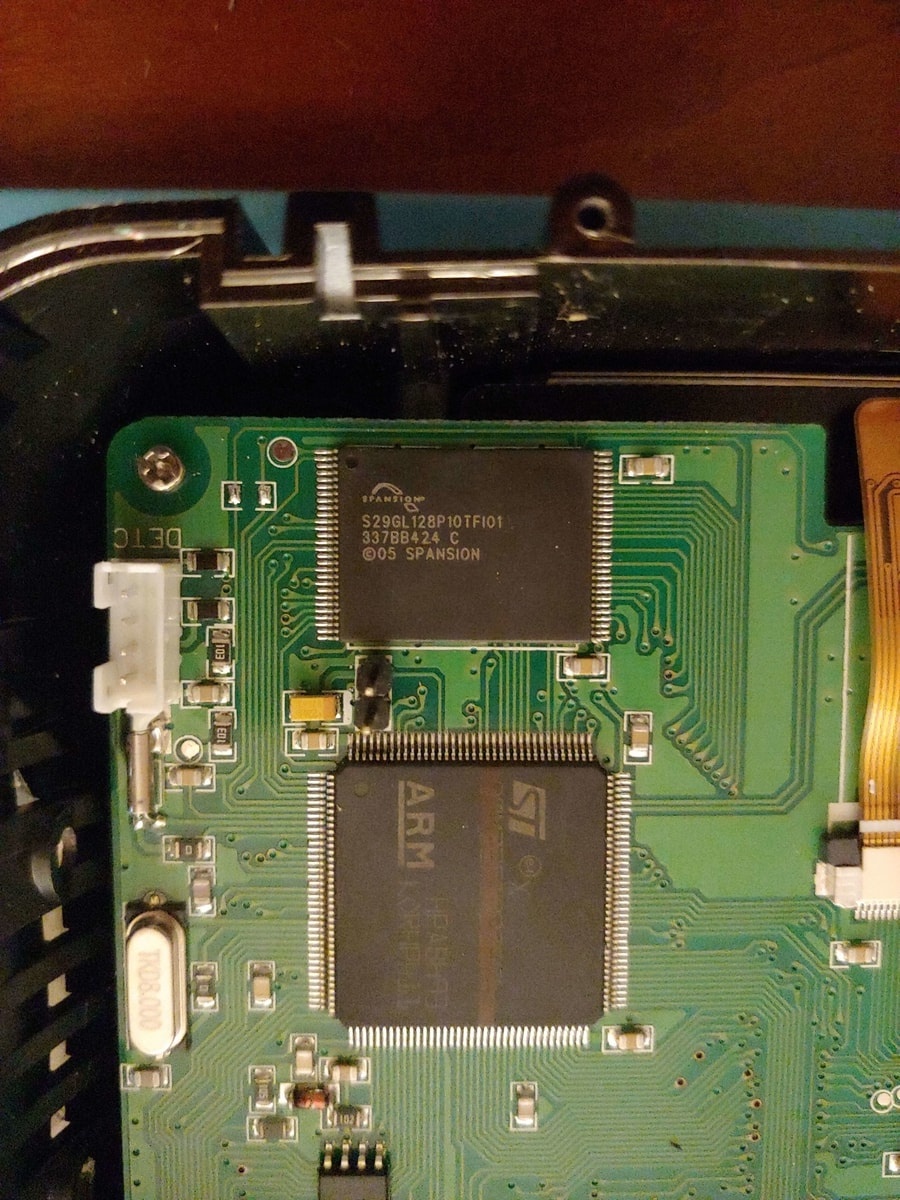

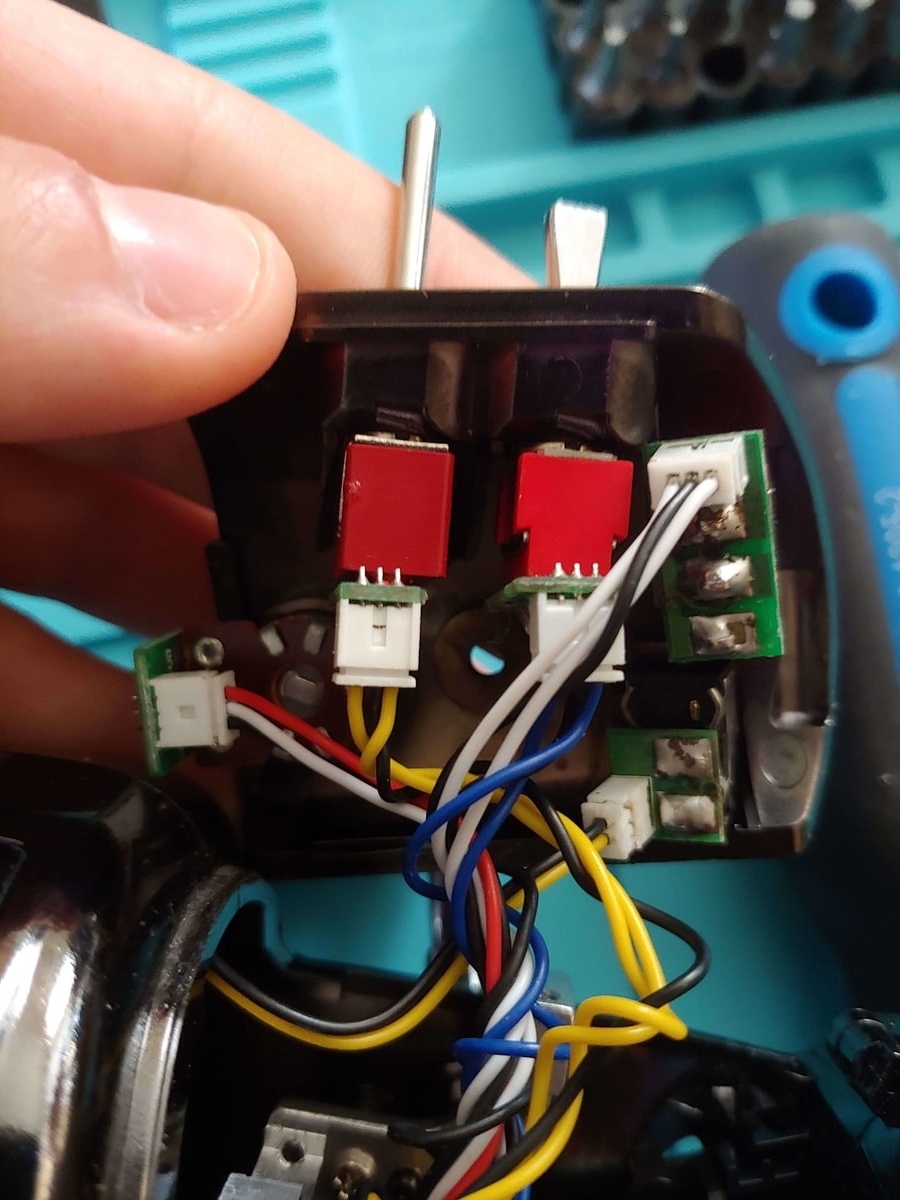

2nd set of pictures

Please Log in or Create an account to join the conversation.
