Devo 12s 3in1 / 4in1 RF module neat installation.

More
02 Mar 2016 20:28 #43990 by victzh
Replied by victzh on topic 3in1 / 4in1 RF module
No, it's not easy, and @TomPeer you can be proud of it. I can solder stuff like this, but many people just can't. Otherwise Devo mods would be much easier.

Please Log in or Create an account to join the conversation.

More
02 Mar 2016 20:41 #43992 by TomPeer
Replied by TomPeer on topic 3in1 / 4in1 RF module
Thank you victzh,

I am proud to be honest, at least for me it was not easy. But i am happy that it al worked out.

Please Log in or Create an account to join the conversation.

More
02 Mar 2016 23:57 #43999 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module
@TomPeer

Excellent ! it's good to hear that it works fine. :woohoo:
Thanks a lot.

Please Log in or Create an account to join the conversation.

More
03 Mar 2016 20:12 #44042 by TomPeer
Replied by TomPeer on topic 3in1 / 4in1 RF module
And another one.

Sinds it went so well for the devo 10 and devo 8s, i went on and soldered an extra module in the Devo 7E. Again with succes.
I used pin 55 (B3), and again all seems to be ok.
still waiting for my frsky rx to test with.

Tom

Please Log in or Create an account to join the conversation.

More
03 Mar 2016 21:13 #44044 by Fernandez
Replied by Fernandez on topic 3in1 / 4in1 RF module
just to double check you have soldered 2 modules in devo using TMS & TCK, for the third module you connect SCS to pin 55 and entered B3 into the hardware.ini and you can use three modules in devo 7e without the multimod, correct me if I am wrong.

Can you post a picture to b sure of pin 55 location, and I will try the same mod in my 7e too.....

Please Log in or Create an account to join the conversation.

More
03 Mar 2016 21:28 #44045 by TomPeer
Replied by TomPeer on topic 3in1 / 4in1 RF module
Yes you are correct. I will take a picture tomorrow.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 01:38 #44056 by Leo Li
Replied by Leo Li on topic 3in1 / 4in1 RF module

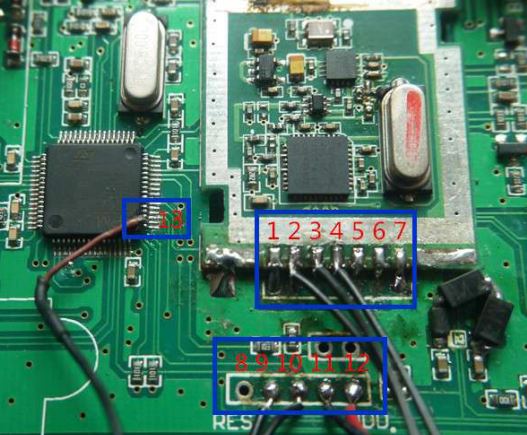

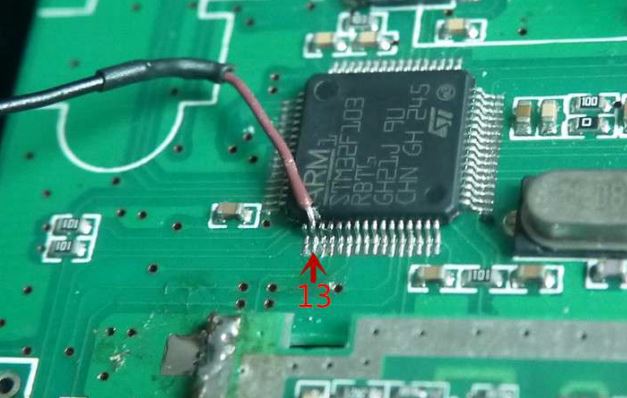

Share my 7E, 3 module inside, I follow china 3in1 manual, install third module in A15

[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
; enable-cyrf6936 = B12
has_pa-cyrf6936 = 0
enable-a7105 = A13
has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = A15
has_pa-nrf24l01 = 1



Attachments:

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 01:51 #44058 by mwm
Replied by mwm on topic 3in1 / 4in1 RF module

dc59 wrote: Thanks for Hexfet's help, now I can get RSSI data on my 8S, but it's only be displayed at main page.

Is it possible to move it to telemetry monitor page?


What protocol and build are you using? That looks like a second telemetry page, as GPS data is usually on it. If so, the RSSI data should be on the first page.

Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.

My remotely piloted vehicle ("drone") is a yacht.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 02:35 #44064 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

mwm wrote: What protocol and build are you using? That looks like a second telemetry page, as GPS data is usually on it. If so, the RSSI data should be on the first page.


I used nightly build 2016-2-22 4fc5268 , "Frsky" protocol with D4R-II telemetry ON, I can't find any button to change page, it looks only one page.
Thanks a lot.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 02:38 #44065 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

Leo Li wrote: Share my 7E, 3 module inside, I follow china 3in1 manual, install third module in A15


Is everything working fine with it?
Thanks for shearing. :)

@TomPeer
Good to know B3 works,thanks. :)

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 03:56 #44073 by TomPeer
Replied by TomPeer on topic 3in1 / 4in1 RF module

Fernandez wrote: just to double check you have soldered 2 modules in devo using TMS & TCK, for the third module you connect SCS to pin 55 and entered B3 into the hardware.ini and you can use three modules in devo 7e without the multimod, correct me if I am wrong.

Can you post a picture to b sure of pin 55 location, and I will try the same mod in my 7e too.....


as promised:




Attachments:

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 06:33 #44079 by mwm
Replied by mwm on topic 3in1 / 4in1 RF module

dc59 wrote: I used nightly build 2016-2-22 4fc5268 , "Frsky" protocol with D4R-II telemetry ON, I can't find any button to change page, it looks only one page.


Right. Not on the 8. Ok....

You can't do it now without a custom build. However, this is actively being worked on. You might try the test build at deviationtx.com/downloads-new/category/3...xfet-protocol-frskyx to see if it shows up there. However, do NOT try flying with it until you've been told in the development thread for them at deviationtx.com/forum/protocol-developme...-new-frskyx-protocol that the FrSky protocol should be ok.

Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.

My remotely piloted vehicle ("drone") is a yacht.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 09:12 #44085 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

mwm wrote:

dc59 wrote: I used nightly build 2016-2-22 4fc5268 , "Frsky" protocol with D4R-II telemetry ON, I can't find any button to change page, it looks only one page.


Right. Not on the 8. Ok....

You can't do it now without a custom build. However, this is actively being worked on. You might try the test build at deviationtx.com/downloads-new/category/3...xfet-protocol-frskyx to see if it shows up there. However, do NOT try flying with it until you've been told in the development thread for them at deviationtx.com/forum/protocol-developme...-new-frskyx-protocol that the FrSky protocol should be ok.


Hi mwm,
Thanks for helping, I will try frskyx test build and I will NOT to fly with it. :)

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 13:11 - 04 Mar 2016 13:18 #44097 by Leo Li
Replied by Leo Li on topic 3in1 / 4in1 RF module
@dc59 All modules working
My 7E inside
Attachments:
Last edit: 04 Mar 2016 13:18 by Leo Li.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 22:54 - 04 Mar 2016 22:55 #44118 by Fernandez
Replied by Fernandez on topic 3in1 / 4in1 RF module
I followed Toms instruction and soldered to the same pin.
Entered B3, but I dot get any module detected , I tried with different module.
I used latest nightly from 4th of march, anything I did wrong?




; enable-cyrf6936 = B12
; has_pa-cyrf6936 = 1
; enable-a7105 = A14
; has_pa-a7105 = 1
enable-cc2500 = B3
has_pa-cc2500 = 1
enable-nrf24l01 = A14
has_pa-nrf24l01 = 1
; enable-multimod = A13
Attachments:
Last edit: 04 Mar 2016 22:55 by Fernandez.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 23:07 #44119 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

Leo Li wrote: @dc59 All modules working
My 7E inside


Thanks for sharing this info. it seems time to mod. my 7E~ :cheer:

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 23:13 #44120 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

Fernandez wrote: I followed Toms instruction and soldered to the same pin.
Entered B3, but I dot get any module detected , I tried with different module.
I used latest nightly from 4th of march, anything I did wrong?

; enable-cyrf6936 = B12
; has_pa-cyrf6936 = 1
; enable-a7105 = A14
; has_pa-a7105 = 1
enable-cc2500 = B3
has_pa-cc2500 = 1
enable-nrf24l01 = A14
has_pa-nrf24l01 = 1
; enable-multimod = A13


It looks OK!
How many module do you install? cc2500 & nrf24l01 ?

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 23:21 #44122 by Deal57
Replied by Deal57 on topic 3in1 / 4in1 RF module
It must be Friday... :oops:

Anyway, I had problems with some modules when I used a ground other than pin 7 of the CYRF. May not be the problem here, easy to check.

Deviation Devo7e 3way switch mod, A7105, NRF24L01
Devo6s 2x2 switch mod, trim mod, haptic, multimodule, A7105, NRF24L01, CC2500
Devo12e 4-in-1 with voice mod -- it speaks!!

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 23:30 #44123 by Fernandez
Replied by Fernandez on topic 3in1 / 4in1 RF module
I tried now with two modules toghether only, it detect one module A13/A14 but not the one at B3.
I did check with each cc2500, a7105 or nr, all same.

If you are sure all is ok, then will do a format of devo and copy fresh files and try again.

Please Log in or Create an account to join the conversation.

More
04 Mar 2016 23:42 #44124 by Fernandez
Replied by Fernandez on topic 3in1 / 4in1 RF module
Whooohoo it works now!

I don't know why it is but i have had this issue before. Full format of drive copy fresh, exit USB nice and bam it wiorked direct on B3.
Maybe devo does no take that you edit and save direct from notepad++, anyway no clue as othe modules worked. But I had same before in the pas.

Please Log in or Create an account to join the conversation.
