Toggle Icons, a way to add more?

More
09 Apr 2013 08:35 - 09 Apr 2013 08:36 #8775 by jvulte
Toggle Icons, a way to add more? was created by jvulte
Could I add more toggle Icons into the media folder to choose from?

I was wondering, maybe I could extend the current BMP to twice as long, or maybe double width, for double the icons?
Last edit: 09 Apr 2013 08:36 by jvulte.

Please Log in or Create an account to join the conversation.

More
09 Apr 2013 08:37 #8776 by FDR
Replied by FDR on topic Toggle Icons, a way to add more?
You can extend the existing, but only in the same direction.

Please Log in or Create an account to join the conversation.

  • rbe2012
  • rbe2012's Avatar
  • Offline
  • So much to do, so little time...
More
09 Apr 2013 09:12 - 09 Apr 2013 09:14 #8777 by rbe2012
Replied by rbe2012 on topic Toggle Icons, a way to add more?
No, the toggles.bmp can have any format as long as it is a multiple of 32 pixels wide and a multiple of 31 pixels high.
Make sure you do not change the first icon (frame with question mark) and for compatibility I would not change the standard icons.
As an example you can use mine:

EDIT: should be the same for the Devo7e/10.
Attachments:
Last edit: 09 Apr 2013 09:14 by rbe2012.

Please Log in or Create an account to join the conversation.

More
09 Apr 2013 09:19 #8778 by FDR
Replied by FDR on topic Toggle Icons, a way to add more?
Oops, sorry!
Has it changed recently?

Please Log in or Create an account to join the conversation.

  • rbe2012
  • rbe2012's Avatar
  • Offline
  • So much to do, so little time...
More
09 Apr 2013 09:31 #8779 by rbe2012
Replied by rbe2012 on topic Toggle Icons, a way to add more?
Yes, with the introduction of the multiple toggle icons.

Please Log in or Create an account to join the conversation.

  • rbe2012
  • rbe2012's Avatar
  • Offline
  • So much to do, so little time...
More
09 Apr 2013 09:32 #8780 by rbe2012
Replied by rbe2012 on topic Toggle Icons, a way to add more?
Forgot to mention (as often...): Devo8 can show only the first 32 icons.

Please Log in or Create an account to join the conversation.

More
09 Apr 2013 16:42 #8794 by jvulte
Replied by jvulte on topic Toggle Icons, a way to add more?
Thanx guys!!! Lotsa great info for me here! Think I got it. I'll share what I come up with :D

here is a basic, colors, and Throttle Hold,

Toggle Icons
Attachments:

Please Log in or Create an account to join the conversation.

More
21 May 2013 18:07 #10209 by Franck
Replied by Franck on topic Toggle Icons, a way to add more?

rbe2012 wrote: Forgot to mention (as often...): Devo8 can show only the first 32 icons.


Only 19 icones for my DEVO 8 :dry:

Please Log in or Create an account to join the conversation.

  • rbe2012
  • rbe2012's Avatar
  • Offline
  • So much to do, so little time...
More
22 May 2013 04:34 #10223 by rbe2012
Replied by rbe2012 on topic Toggle Icons, a way to add more?
Because there are only 19 in the icon file. If there would be more only the first 32 would be shown.
This was true at the moment I wrote the post you mentioned. I believe PB has added a scroll bar so more icons can be displayed, but I can't test actually.

Please Log in or Create an account to join the conversation.

  • rbe2012
  • rbe2012's Avatar
  • Offline
  • So much to do, so little time...
More
22 May 2013 05:16 #10226 by rbe2012
Replied by rbe2012 on topic Toggle Icons, a way to add more?

rbe2012 wrote: I believe PB has added a scroll bar so more icons can be displayed, but I can't test actually.

I looked into: he has. The number of icons is limited to 64 icons in every of the four files (only "media/toggle3.bmp" for free use, the others for deviation standard icons).

Please Log in or Create an account to join the conversation.

More
17 Apr 2014 22:03 #22531 by lcn
Replied by lcn on topic Toggle Icons, a way to add more?
What resolution must have BMP file to be compatible with Devo12S ?

I've tried to create my ownn toggle3.BMP but is not displayed properly, is it stripped and looks to be green negative on Devo's screen.

What are the settings to save the BMP file in photoshop ?
I've use all BMP settings from 16 bits to 32 bits, it still the same bad result. :S

Please Log in or Create an account to join the conversation.

More
17 Apr 2014 23:38 - 17 Apr 2014 23:39 #22535 by unclecrash
Replied by unclecrash on topic Toggle Icons, a way to add more?

jvulte wrote: Thanx guys!!! Lotsa great info for me here! Think I got it. I'll share what I come up with :D

here is a basic, colors, and Throttle Hold,


Toggle Icons


Where are the letter's? A,F,E,Thr,G or the gear symbol. I like the throttle hold
Last edit: 17 Apr 2014 23:39 by unclecrash.

Please Log in or Create an account to join the conversation.

More
17 Apr 2014 23:55 #22538 by jvulte
Replied by jvulte on topic Toggle Icons, a way to add more?
I removed them cause they didn't make any sense to me,.. :)

Please Log in or Create an account to join the conversation.

More
18 Apr 2014 00:40 #22541 by jvulte
Replied by jvulte on topic Toggle Icons, a way to add more?
these are all showing up black since the latest update

Please Log in or Create an account to join the conversation.

More
18 Apr 2014 05:04 #22547 by lcn
Replied by lcn on topic Toggle Icons, a way to add more?
What resolution must have BMP file to be compatible with Devo12S ?

I've tried BMP settings from 16 bits to 32 bits, icons are not displayed properly...

Please Log in or Create an account to join the conversation.

More
18 Apr 2014 05:16 #22548 by FDR

Please Log in or Create an account to join the conversation.

More
12 Dec 2014 15:44 #26916 by vincentimes
Replied by vincentimes on topic Toggle Icons, a way to add more?
Hello.
I would like to create icons for switches.
But I do not know how to or find originals to be able to replace it by new.
Thank you for your help(assistant).

Vince

Please Log in or Create an account to join the conversation.

More
12 Feb 2016 14:44 - 12 Feb 2016 14:55 #43041 by Morlacus
Replied by Morlacus on topic Toggle Icons, a way to add more?
Hello
I have a devo 8s with deviation 4.01
I am wanted to have a more meaningful icon for my Fmode position so i wanted to write "Normal", "Accro 1" and "Accro 2"( accro is equivalent of stunt in french) for F0 F1 F2. For this i have created double icons just by puting 2 simple icons side by side. This is very easy.
It would be possible to have triple icons also....
I have also drawn 2 icons for landing gear. 2 other for stop go and 2 for mid throttle and full throttle

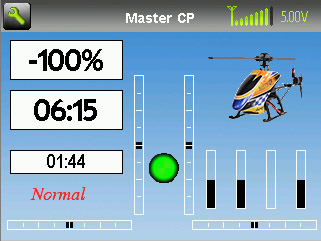

I enclose my toggle3 file and a snapshot of the screen showing Normal
Morlacus


Attachments:
Last edit: 12 Feb 2016 14:55 by Morlacus.

Please Log in or Create an account to join the conversation.
