F12E Multi Module

Hello,

I my F12E i am the "normal" pins (TMS,TCK,3,3V GND, MISO, MOSI, SCK) and they are working well.

I am edditing the hareware.ini - make a new devo.fs file with "builds" and transfer this file to the F12E via USB.

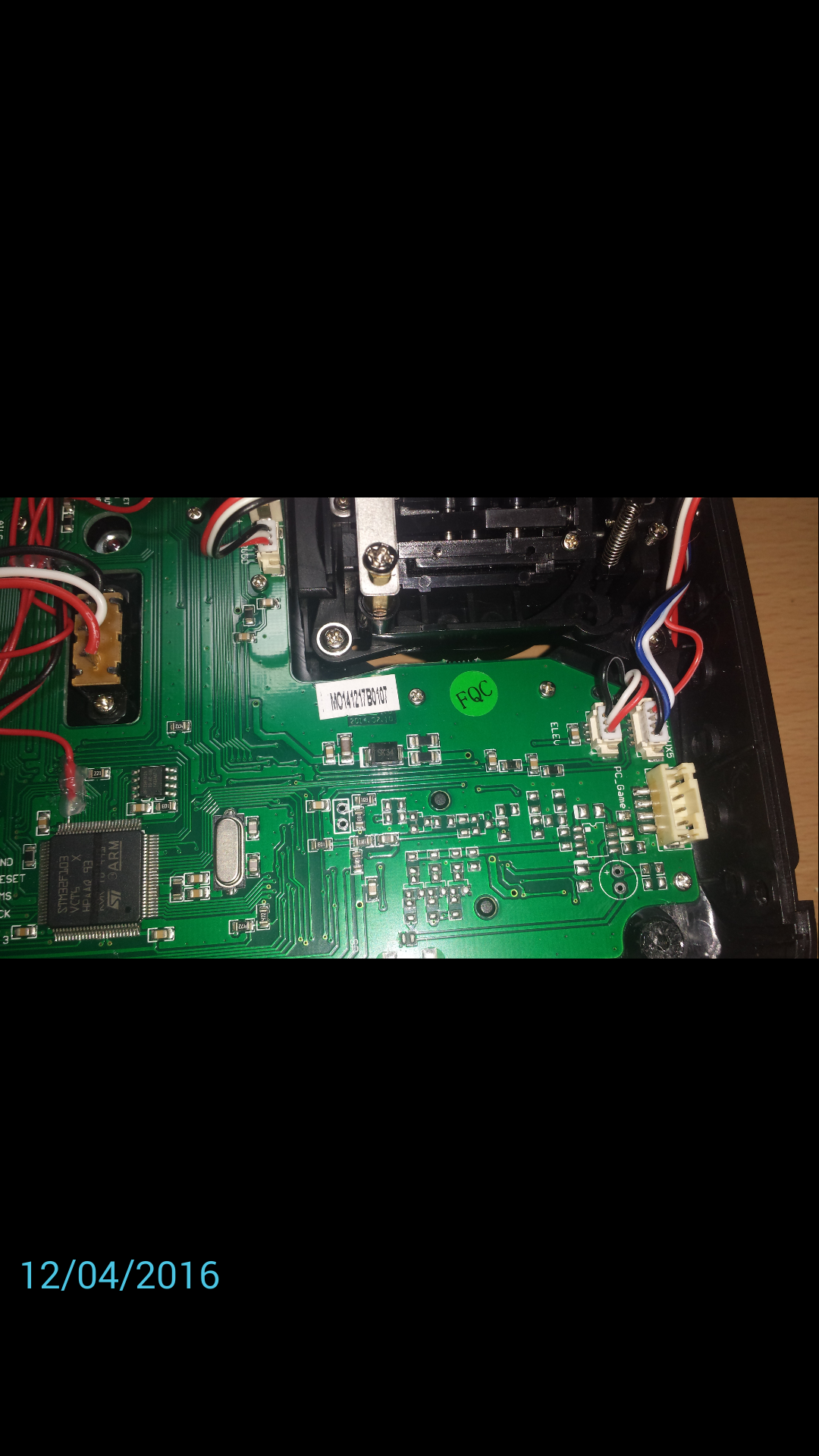

Could you take some photos of the connections of your f12e? And what devention version do you have installed? thank you very much!!!!

Devention is the original name of the line of TXs, Deviation is the third party firmware for this line (not only now).

Sorry, could you take some pictures of the wiring? And what version of deviation do you have?

The wiring for the f12e 3 in 1 module is the same as the devo 10 wiring.

If all but one cable goes the same, the cable that is connected to CS_2401 does not understand where it is connected in the Devo f12e

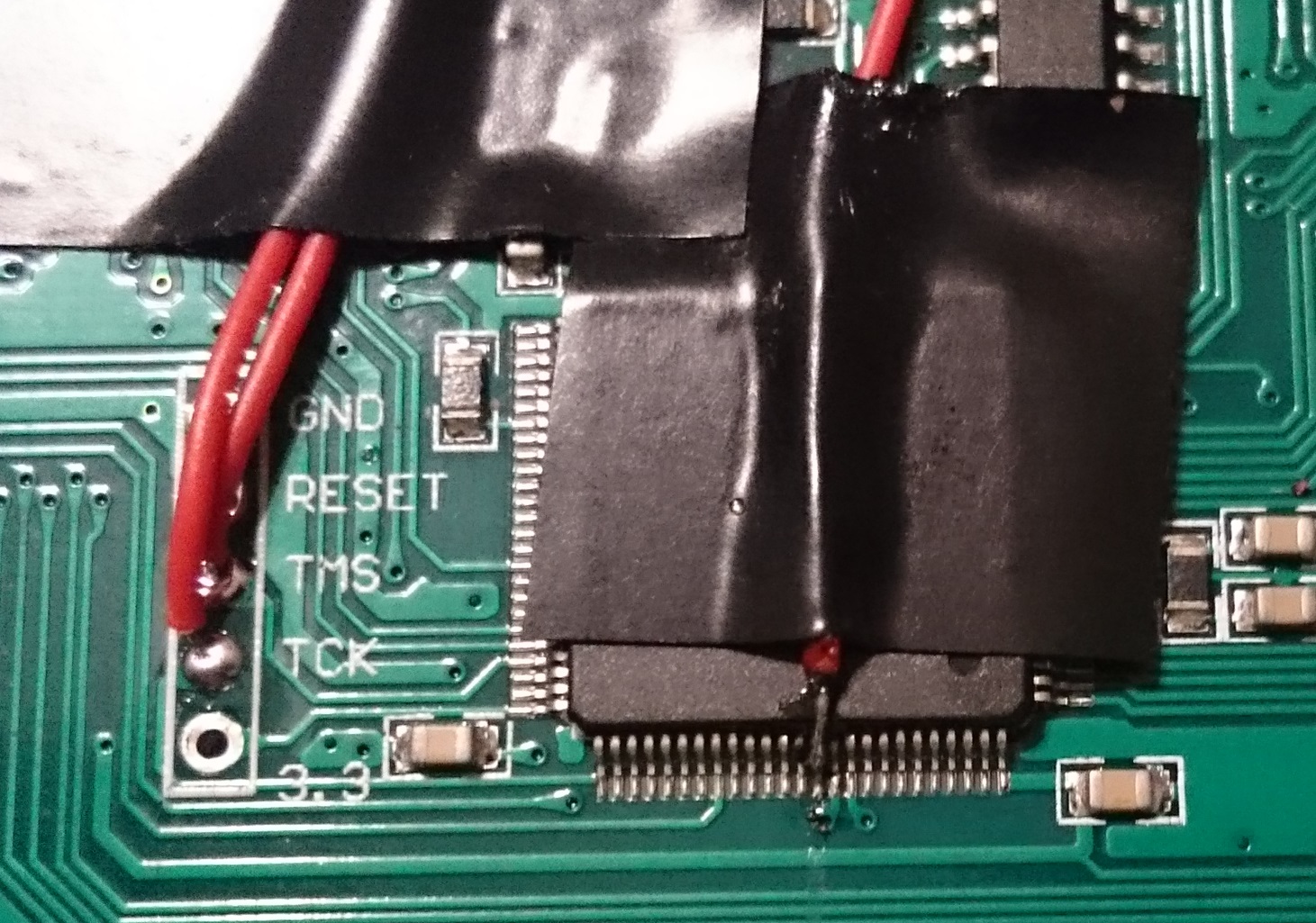

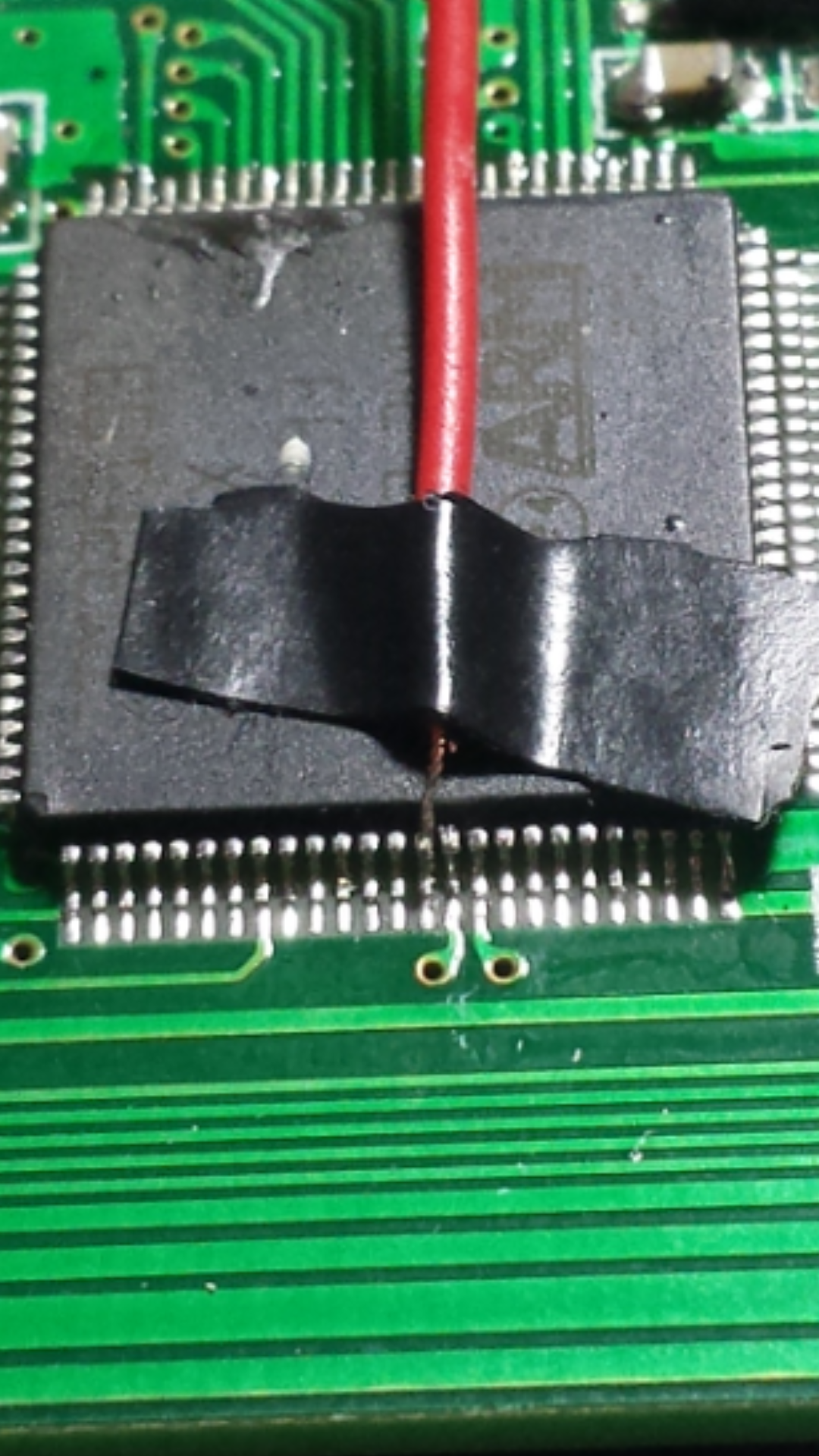

Weve already answer this question on this forum, the nrf2401 goes to B3 with a space after 3 on the stm32f103 chip or to B10. Ive used either one in the past. The picture with the pin above the chip being used is B10 and the one with the pin below the chip is B3 if i rememer the pin names correctly. You can use either one.

B3 is pin number 12 comming from the bottom right conner of the Stm32 chip. Count from your right to left.

If after this you still have problems then reread the first page of this forum.

Thank you very much, I will try to connect it as in the photo you sent

I have installed the 4-in-1 module, nightly build 5.0.0f9f5188. I simply have not found in the forums after hours of hours of looking of what the pins are for tms and tck. I thought they were the same as DEVO 10, but I either get a constant restart or modules not enable. I saw your post in about b3 and b10. I have connected to B3 and set in hardware.ini as B3(space). Maybe I am not suppose to use TMS and TCK. I just can't find any diagrams on those being the correct connection points for the 4-in-1 although came across a comment of using tms and tck. But no photos of it actually being the correct ports and what the ports are called in Hardware.ini. Could you please assist.

Edit: This is on a F12E. I know the forum is about the F12E, but found a few forums where someone asks about another TX

EDIT!!!! I solved it one my own. I changed how I was searching the forums. I found my mistake. When someone showed an example of putting B3_for A13 I actually changed mine to that instead of doing as the person was saying and use it only as an example.
Found correct pin outs here. www.deviationtx.com/forum/7-development/...dule?start=940#55157
