3 in 1 and 4 in 1 module connections for devo 12s

More
18 Dec 2016 17:40 #56957 by Alexander-A
Hello, is there anyone yet who has the connections for the 3 in 1 and or the 4 in1 module for the devo 12s.
Have not found it till know.
Alex

Please Log in or Create an account to join the conversation.

More
18 Dec 2016 22:25 - 18 Dec 2016 22:27 #56961 by Arnold

Alexander-A wrote: Hello, is there anyone yet who has the connections for the 3 in 1 and or the 4 in1 module for the devo 12s...


For the 4in1, see post #55157

If you are logged in, use this link:
www.deviationtx.com/forum/7-development/...dule?start=160#55157
.. and scroll down to the Devo12 pix

If you are NOT logged in, use this link:
www.deviationtx.com/forum/7-development/...dule?start=940#55157
.. and scroll down to the Devo12 pix

Too many hobbies & too many Devos!
Who knows where the time goes?
Last edit: 18 Dec 2016 22:27 by Arnold.

Please Log in or Create an account to join the conversation.

More
19 Dec 2016 09:24 - 19 Dec 2016 10:21 #56973 by dat

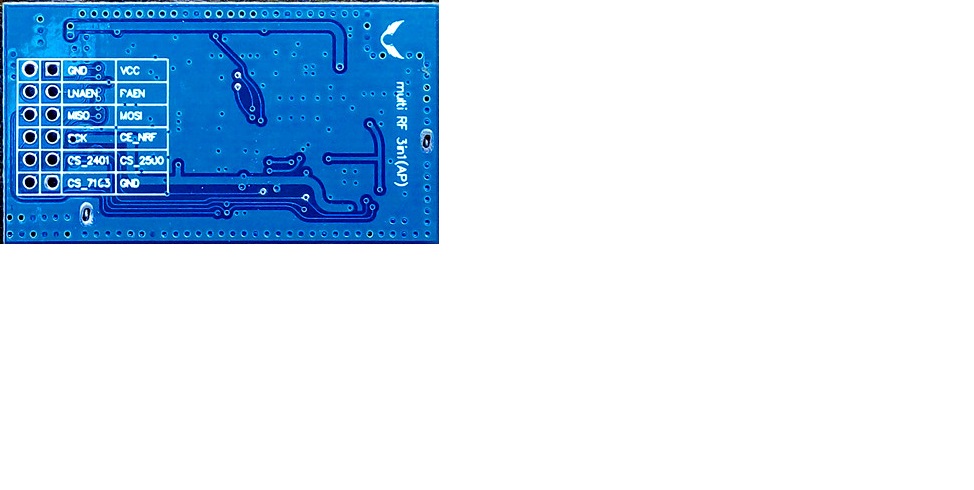

3 in1 work fine in my 12S ,


install deviation main FW ver : deviation NB-devo12-v5.0.0-f9f36d5
and
Firmware DFU file from vlad_vy,
: Deviation v5.0.0 build with latest protocols
my hardware.ini

;Only useful for transmitters with an after-market vibration motor
;enable-haptic=1
;
;switch_types: 3x2, 3x1, 2x2
;extra-switches=
;
[modules]
; there is no need to enable the cyrf6936 module unless
; it is wired to an alternate port. It is Enabled automatically otherwise
; enable-cyrf6936 = B12
; has_pa-cyrf6936 = 1
enable-a7105 = A13
has_pa-a7105 = 1
enable-cc2500 = A14
has_pa-cc2500 = 1
enable-nrf24l01 = B3
has_pa-nrf24l01 = 1
; enable-multimod = A13
Attachments:
Last edit: 19 Dec 2016 10:21 by dat.

Please Log in or Create an account to join the conversation.

More
19 Dec 2016 20:09 #57011 by jejeg
Hello dat

Have you photos of your assembly .
Thanks
Jérôme

Please Log in or Create an account to join the conversation.

More
20 Dec 2016 06:17 #57030 by Alexander-A
Replied by Alexander-A on topic 3 in 1 and 4 in 1 module connections for devo 12s
Hello, you say that the 3in1 module works fine in your 12s, but do you have then a layout for all the connections, so where in the 12s to solder all wires to ?
Hope you can help me,

Alex

Please Log in or Create an account to join the conversation.

More
20 Dec 2016 15:01 #57040 by dat
i didn't have photo post now, because i hadn't take any photo that time when i solder this board
as fast as i will do open my tx take some photo for you soon

Please Log in or Create an account to join the conversation.

More
20 Dec 2016 16:08 - 20 Dec 2016 16:10 #57042 by dat
ok , here is some photos .
i wish these can help you
but i'm not a good cameraman and my camera is not good either .

Last edit: 20 Dec 2016 16:10 by dat.

Please Log in or Create an account to join the conversation.

More
20 Dec 2016 16:25 #57043 by Wene001
I would recommend to use the 4in1 Module made especially for Devo.
It has his own voltageregulator powered from the stable 4,25V from the module bay.
The 3,3V used in the pictures is very weak.
If you use the onboard 3,3V you have fluctuating Voltage and the analog input reading is messed up.

if you want to go the 3in1 way i would drop down the stabilized 4,25V from the module bay for the 3in1 module.
(Diodes in series or a linear voltageregulator)

Please Log in or Create an account to join the conversation.

More
20 Dec 2016 18:51 #57055 by Alexander-A
Replied by Alexander-A on topic 3 in 1 and 4 in 1 module connections for devo 12s
Hello, thanks for the info, but its still hard to see where all the wires are going from the module to the transmitter. Maybe you can somehow make more claerly, maybe make a sketch ?.
I hope i'm not asking to much from you.

You also think its better to use the 4in1 module, do you have the connections for these as well ? (for the devo 12s i mean.

Hope you can helk me out.
Thanks,
Alex

Please Log in or Create an account to join the conversation.

More
21 Dec 2016 01:33 #57073 by M8A4X
Hi Alex,

there recently was a thread regarding the Devo 12 and the 4in1 module installation.

You can find it here:
Devo 12 - 4in1 module installation

You can also find sketches of the wiring there.

Best regards
Max

Please Log in or Create an account to join the conversation.

More
21 Dec 2016 09:31 - 21 Dec 2016 09:32 #57086 by Wene001
I would recommend this module
www.banggood.com/CC2500-NRF24L01-A7105-C...07.html?rmmds=search
So you have to connect only 3 wires to TMS, TCK, and B3
as mentioned in the thread linked above

I have this configuration and i works like a charm
all Chips transmitting via the original devo 12s antenna
Last edit: 21 Dec 2016 09:32 by Wene001.

Please Log in or Create an account to join the conversation.

More
21 Dec 2016 11:06 - 21 Dec 2016 11:07 #57092 by dat
hi Alexander
i do not have 4 in 1 , i can't tell you which is better
but ,
3 in 1 need solder many point and that is more complicated than 4 in 1
4 in 1 only 3 wires need solder and one antenna that is awesom , isn't it ?
4 in 1 maybe better for you if you have not own a 3 in1
simple way is always better that's what i thought ,
Last edit: 21 Dec 2016 11:07 by dat.

Please Log in or Create an account to join the conversation.

More
14 Mar 2019 22:50 #73362 by backman8571
Replied by backman8571 on topic 3 in 1 and 4 in 1 module connections for devo 12s
So how do you wire it

Thats the one i have

Per

Please Log in or Create an account to join the conversation.

More
15 Mar 2019 09:50 #73370 by jejeg

Please Log in or Create an account to join the conversation.
