Jumper T8SG V2 plus transmitter

More
15 Apr 2018 07:39 - 15 Apr 2018 07:40 #68657 by dc59
Jumper T8SG V2 plus transmitter was created by dc59

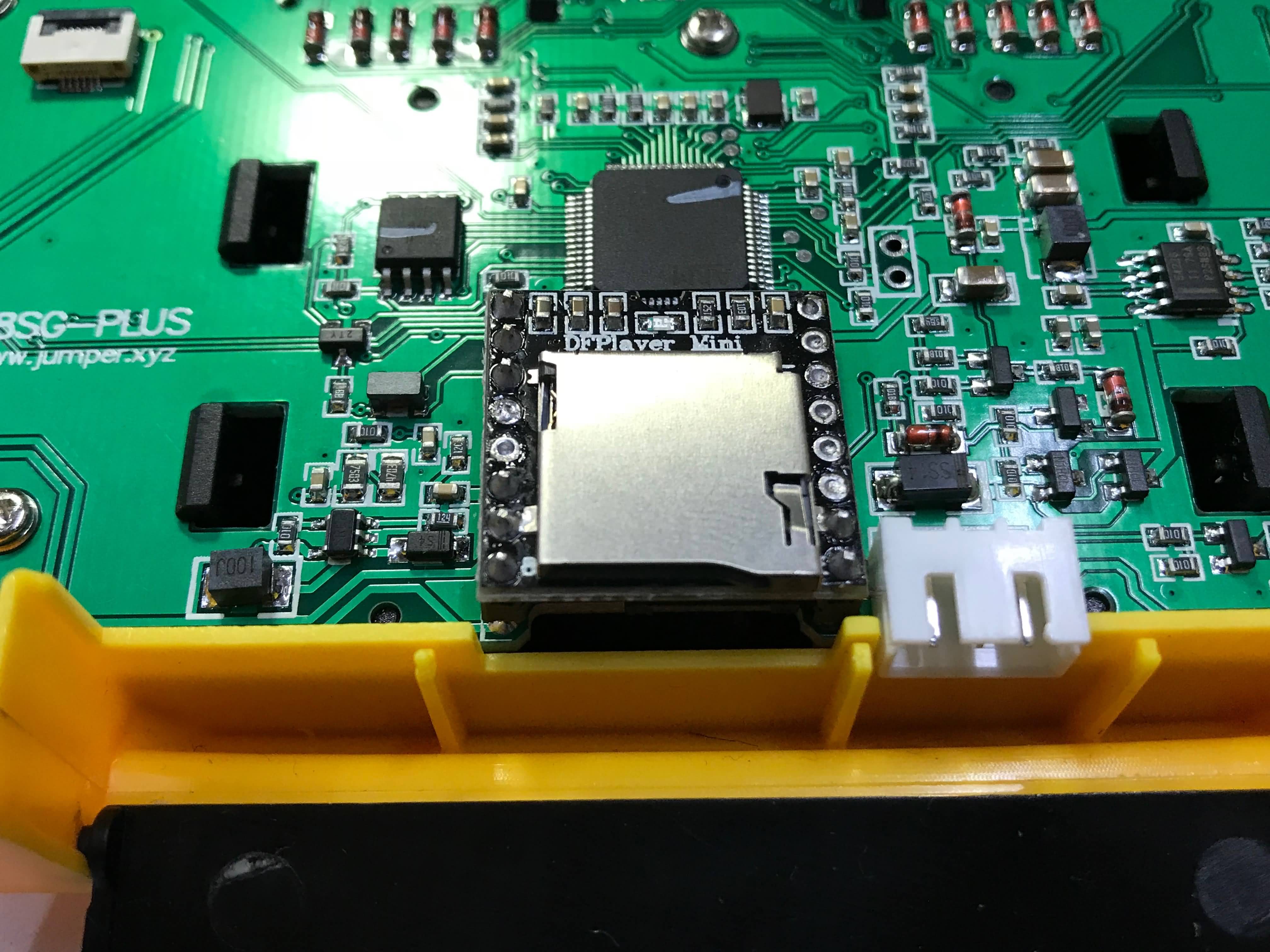

Deviation voice test OK! :cheer:



Last edit: 15 Apr 2018 07:40 by dc59.

Please Log in or Create an account to join the conversation.

More
15 Apr 2018 08:45 #68663 by SeByDocKy
Replied by SeByDocKy on topic Jumper T8SG V2 plus transmitter
Great :) ... It's a special build for the V2+ ?

Please Log in or Create an account to join the conversation.

More
15 Apr 2018 20:02 #68673 by Moeder
Replied by Moeder on topic Jumper T8SG V2 plus transmitter
Can't wait to have mine in hands. Will probably provide enough motivation to further improve voice feature :-P

Please Log in or Create an account to join the conversation.

More
17 Apr 2018 07:48 #68683 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

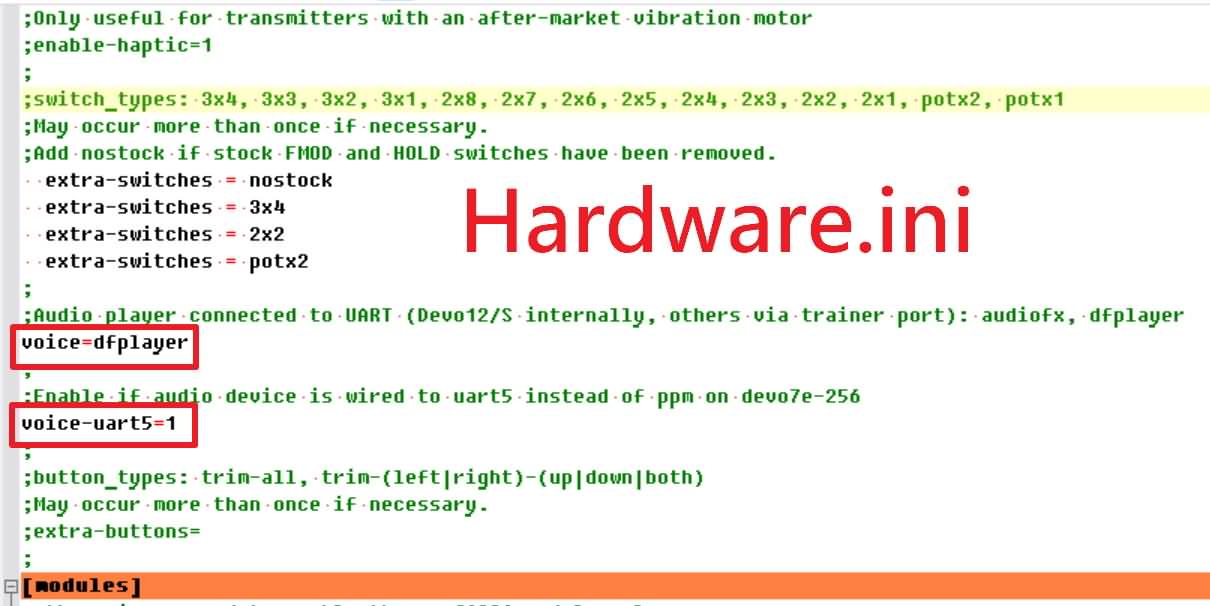

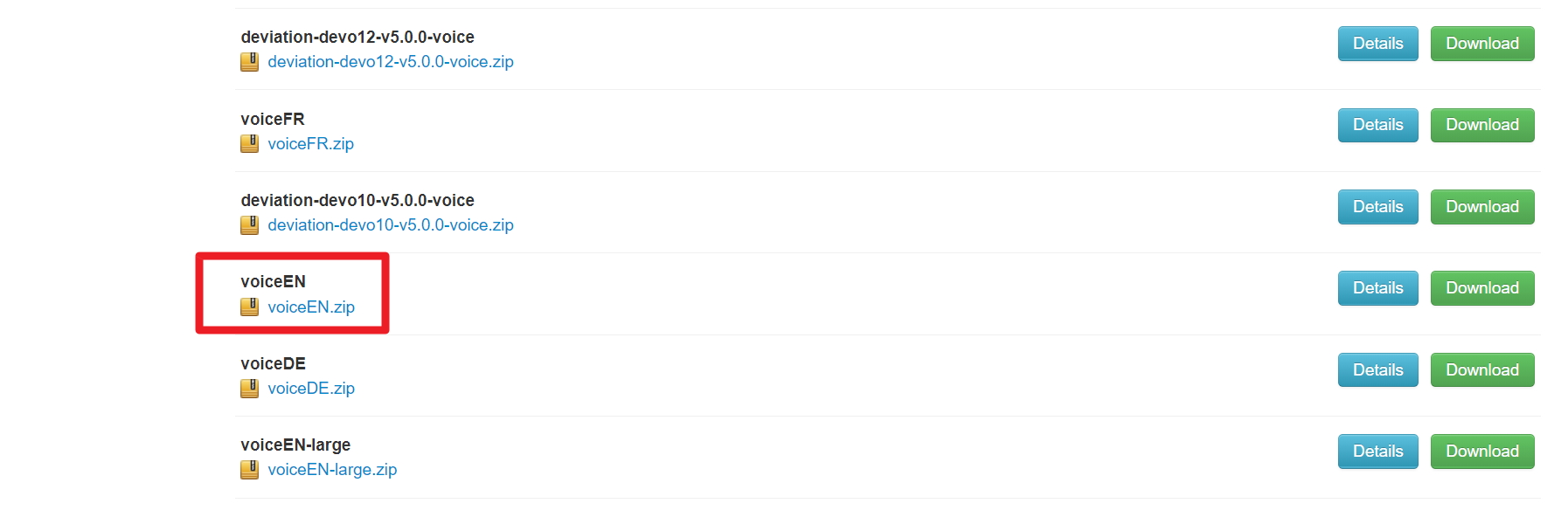

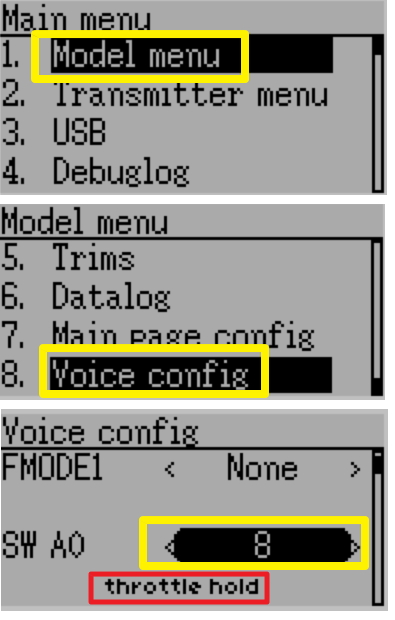

Ref. Deviation wiki here

















Please Log in or Create an account to join the conversation.

More
18 Apr 2018 15:16 #68720 by hexfet
Replied by hexfet on topic Jumper T8SG V2 plus transmitter
Sounds good. Do you have the part number for the speaker PCB connector?

Please Log in or Create an account to join the conversation.

More
18 Apr 2018 23:56 #68736 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

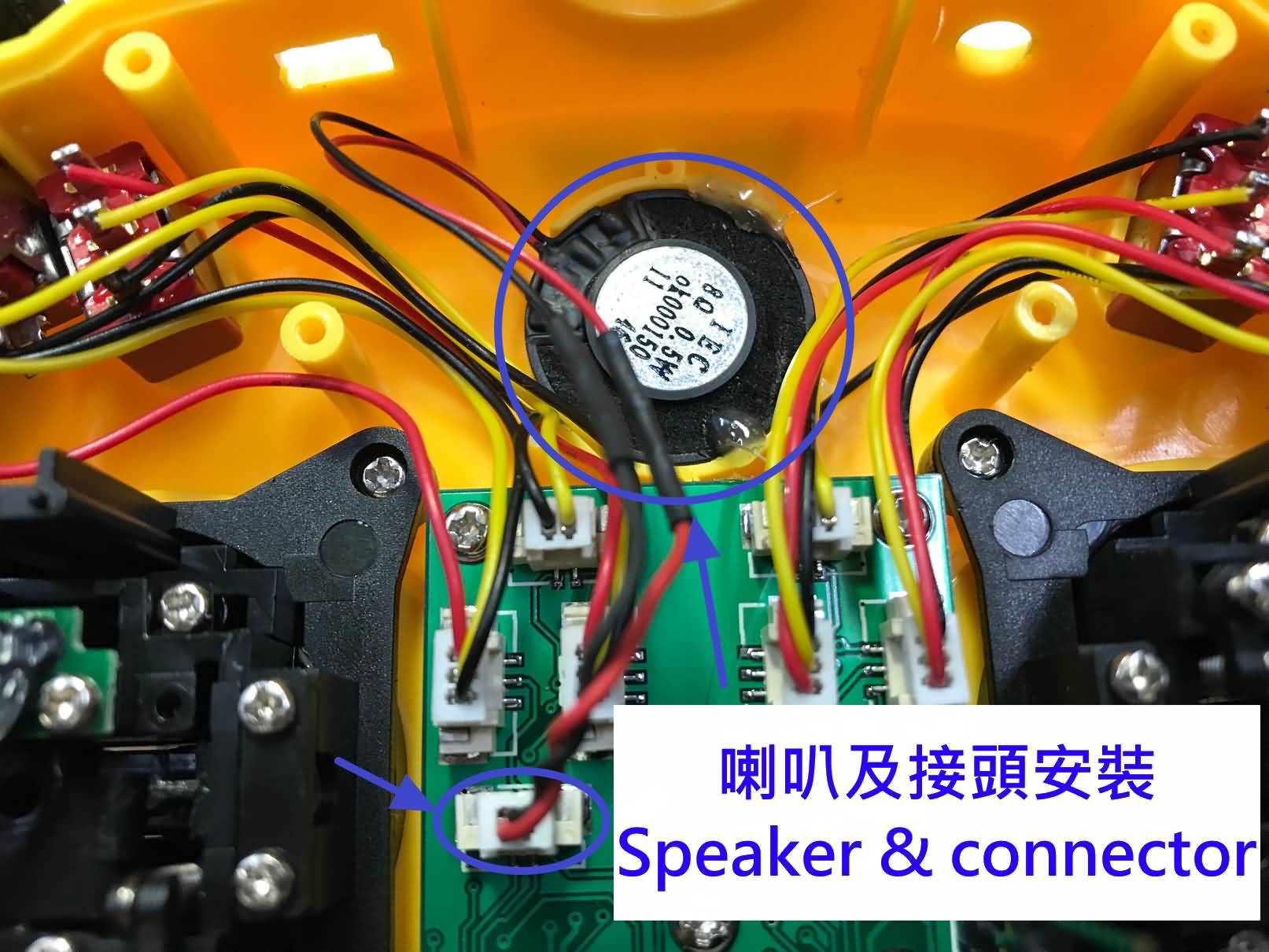

It should be a PH1.25mm connector , I got it from my old walker mini cp tail motor.

Please Log in or Create an account to join the conversation.

More
19 Apr 2018 04:34 #68737 by Whiffles
Replied by Whiffles on topic Jumper T8SG V2 plus transmitter

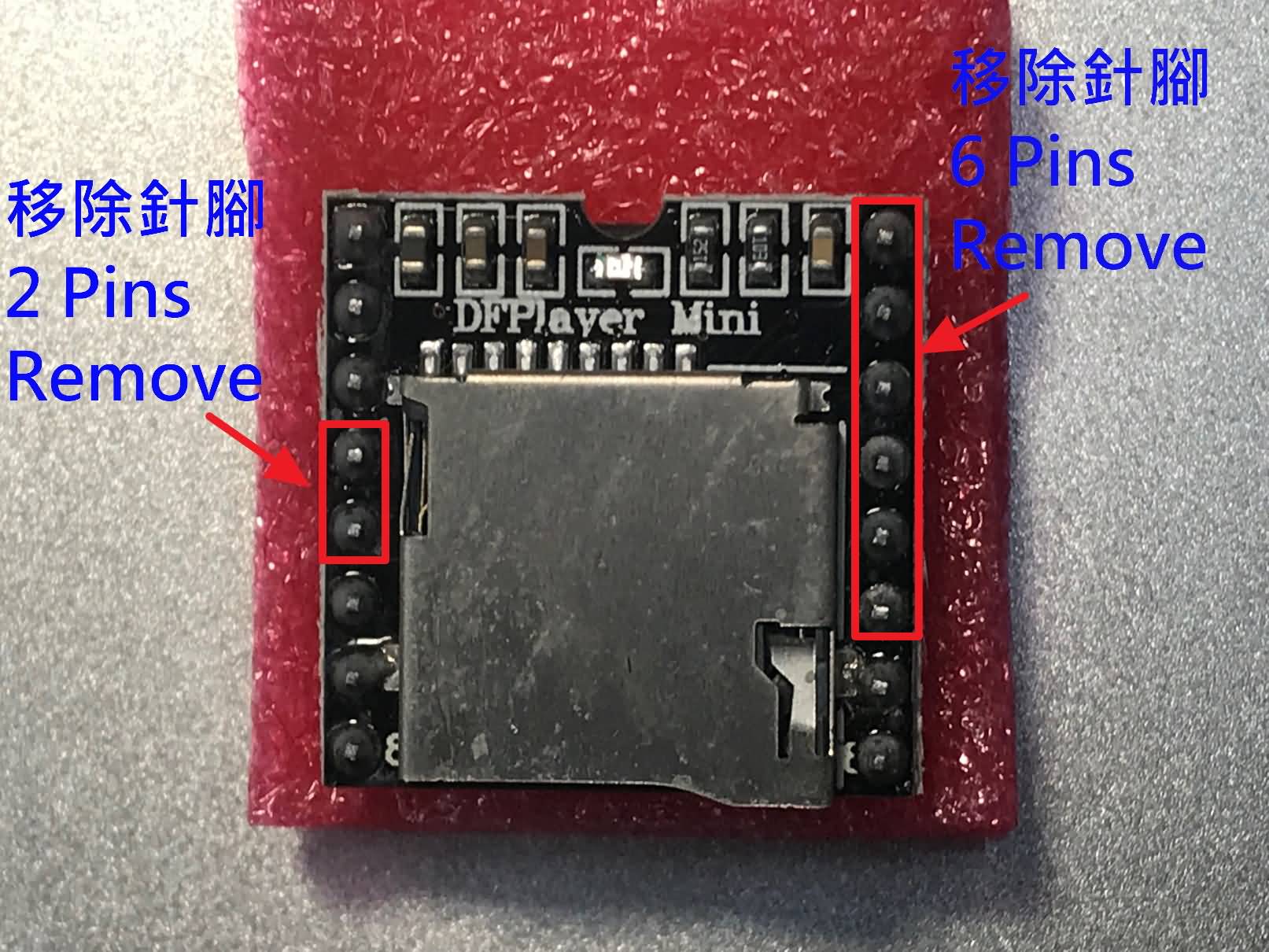

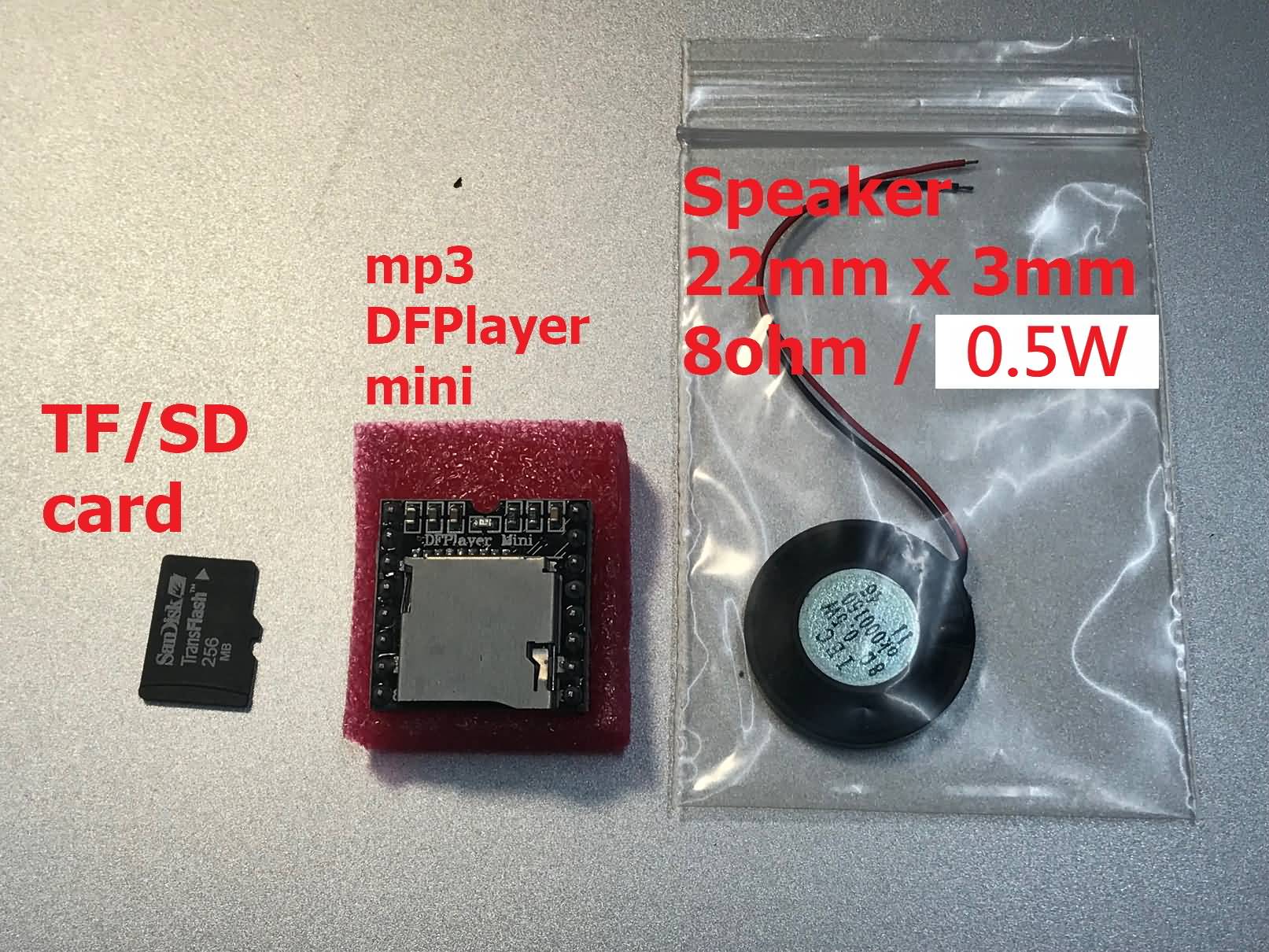

Thank you for this! I found the DFPlayer, but where can the speaker be purchased?

Please Log in or Create an account to join the conversation.

More
19 Apr 2018 06:57 #68740 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter
I bought speaker from local shop, can't provide web link to you!

Please Log in or Create an account to join the conversation.

More
19 Apr 2018 08:18 #68743 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

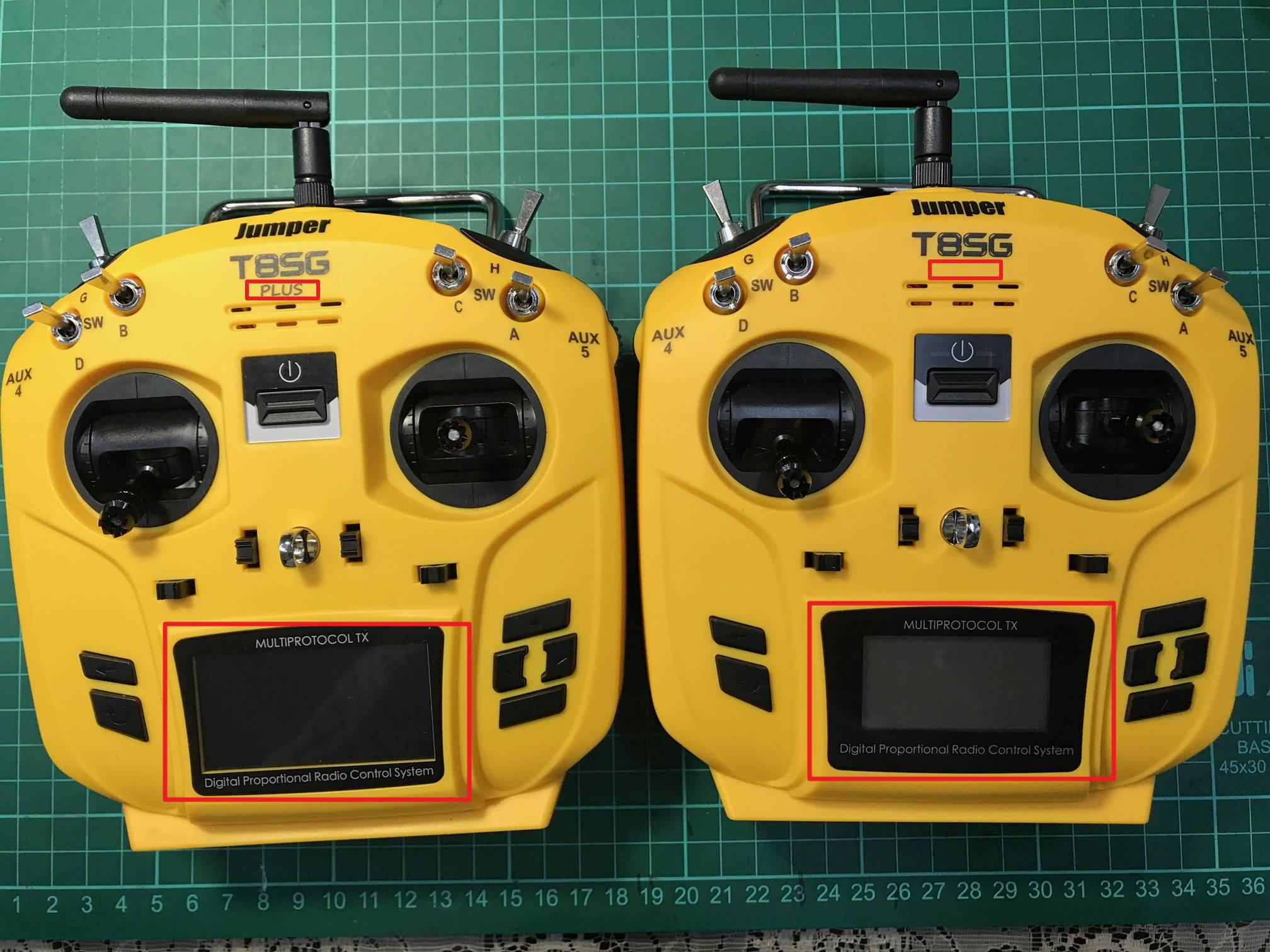

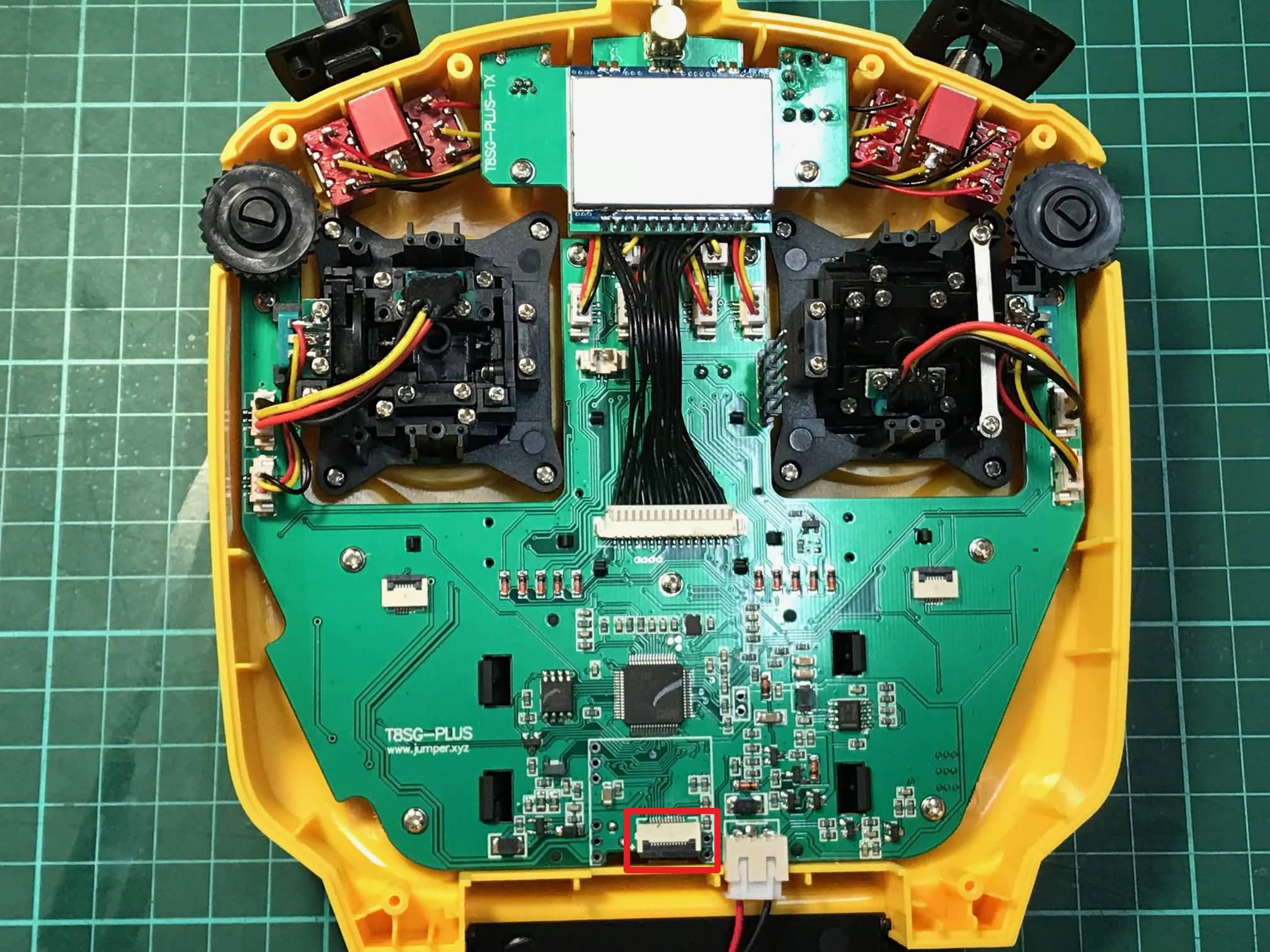

Jumper T8SG V2 transmitter NOT plus version

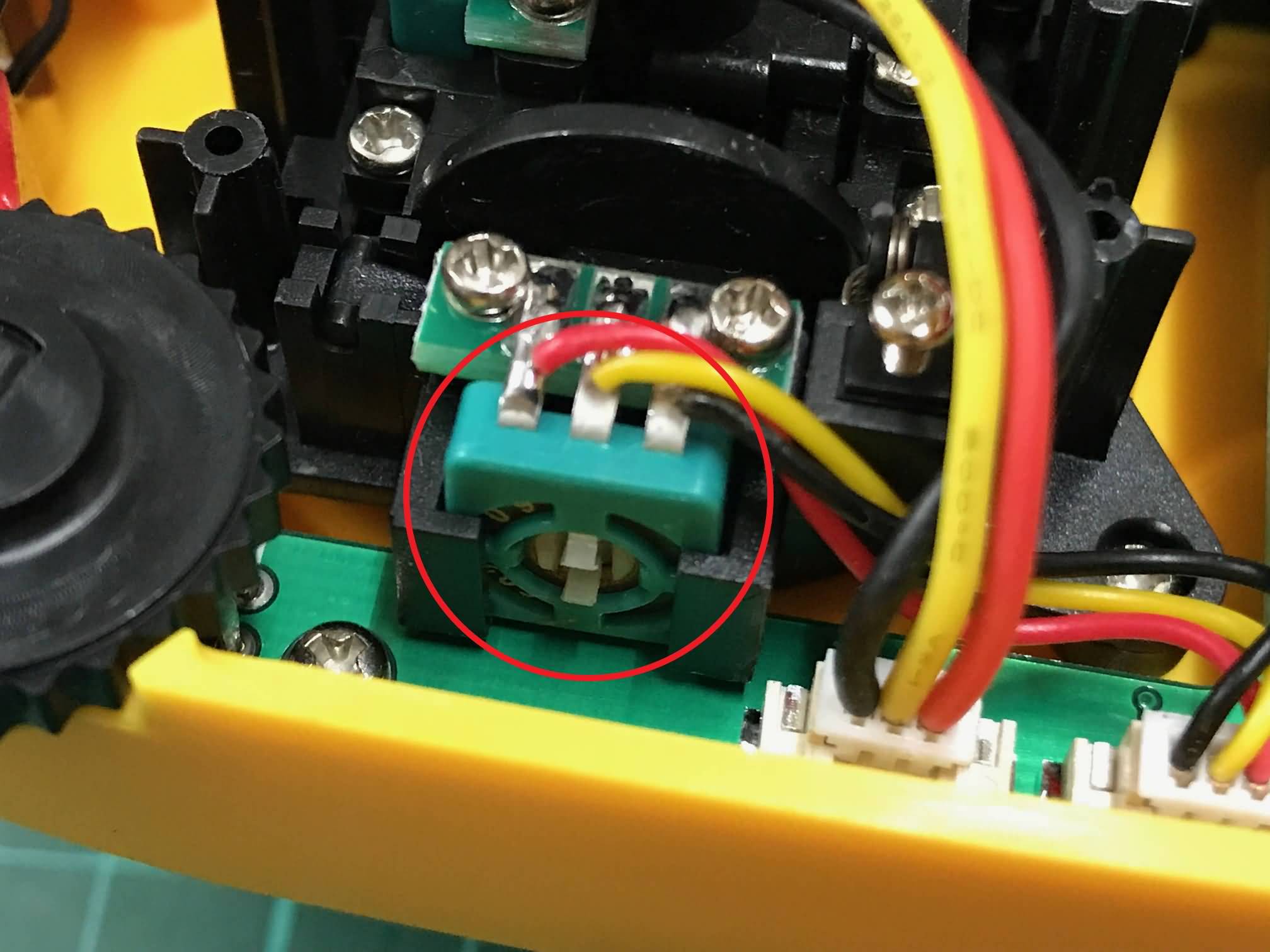

LCD screen & VR gimbals.
Attachments:

Please Log in or Create an account to join the conversation.

More
20 Apr 2018 12:51 #68761 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

dc59 wrote: I bought speaker from local shop, can't provide web link to you!

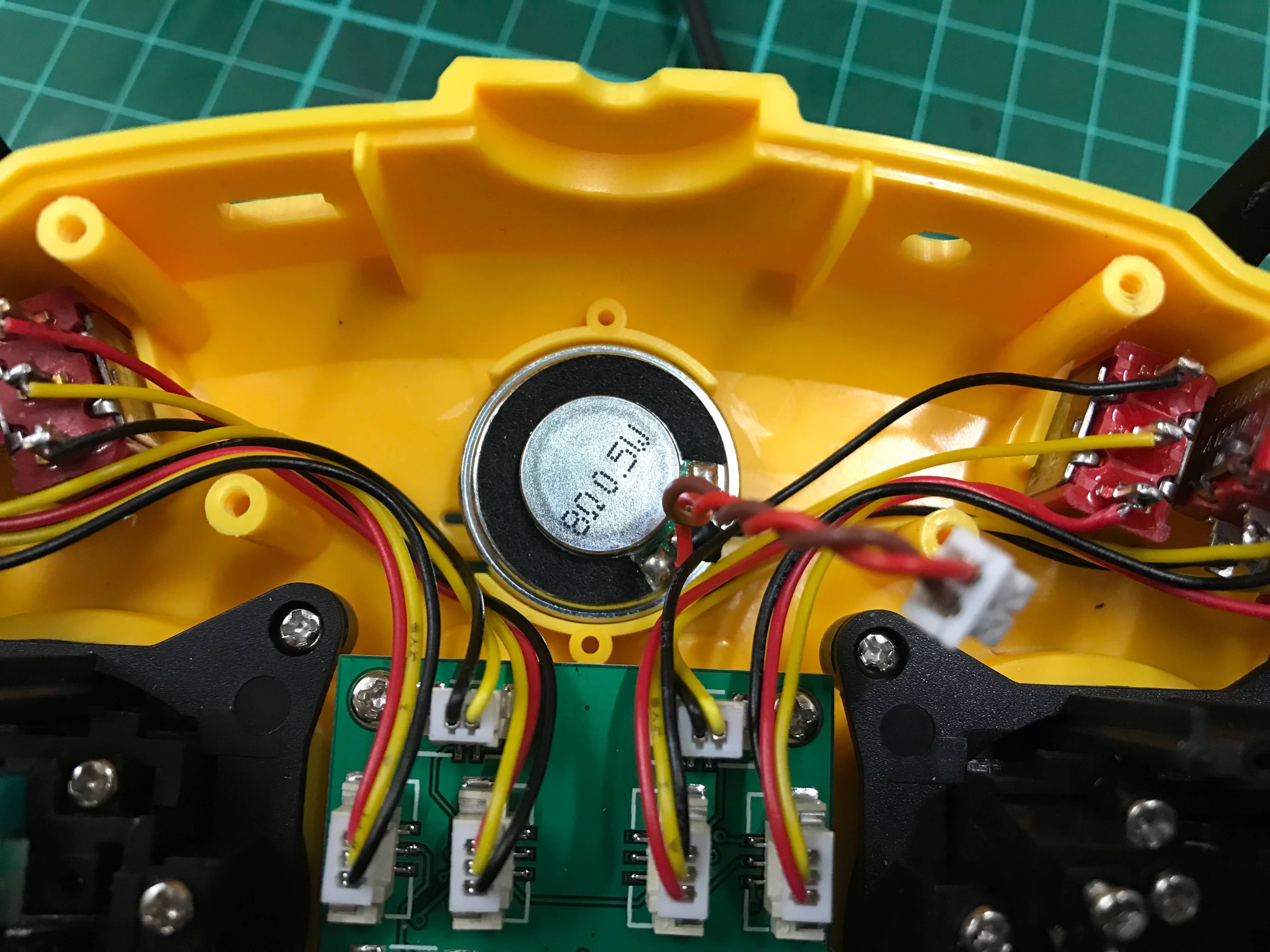

I tried to install Frsky X9D+ speaker in T8SG V2 puls , it's OK! it's same diameter.

Please Log in or Create an account to join the conversation.

More
20 Apr 2018 12:52 #68762 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

dc59 wrote: I bought speaker from local shop, can't provide web link to you!


I tried to install Frsky X9D+ speaker in T8SG V2 puls , it's OK! it's same diameter.

Attachments:

Please Log in or Create an account to join the conversation.

More
25 Apr 2018 06:53 - 25 Apr 2018 06:55 #68853 by FDR
Last edit: 25 Apr 2018 06:55 by FDR.

Please Log in or Create an account to join the conversation.

More
25 Apr 2018 12:48 - 25 Apr 2018 12:49 #68859 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

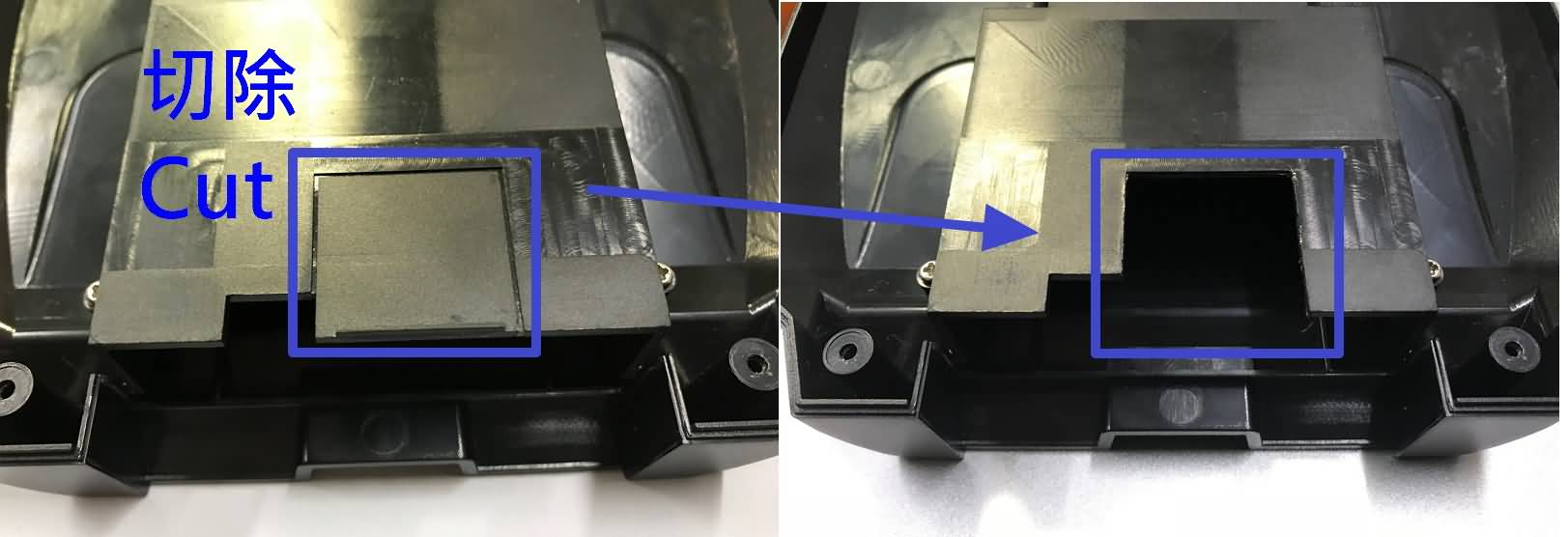

2S LiPo batteries are best choice for Jumper T8SG V2 / V2 plus.
please turn on your speaker.

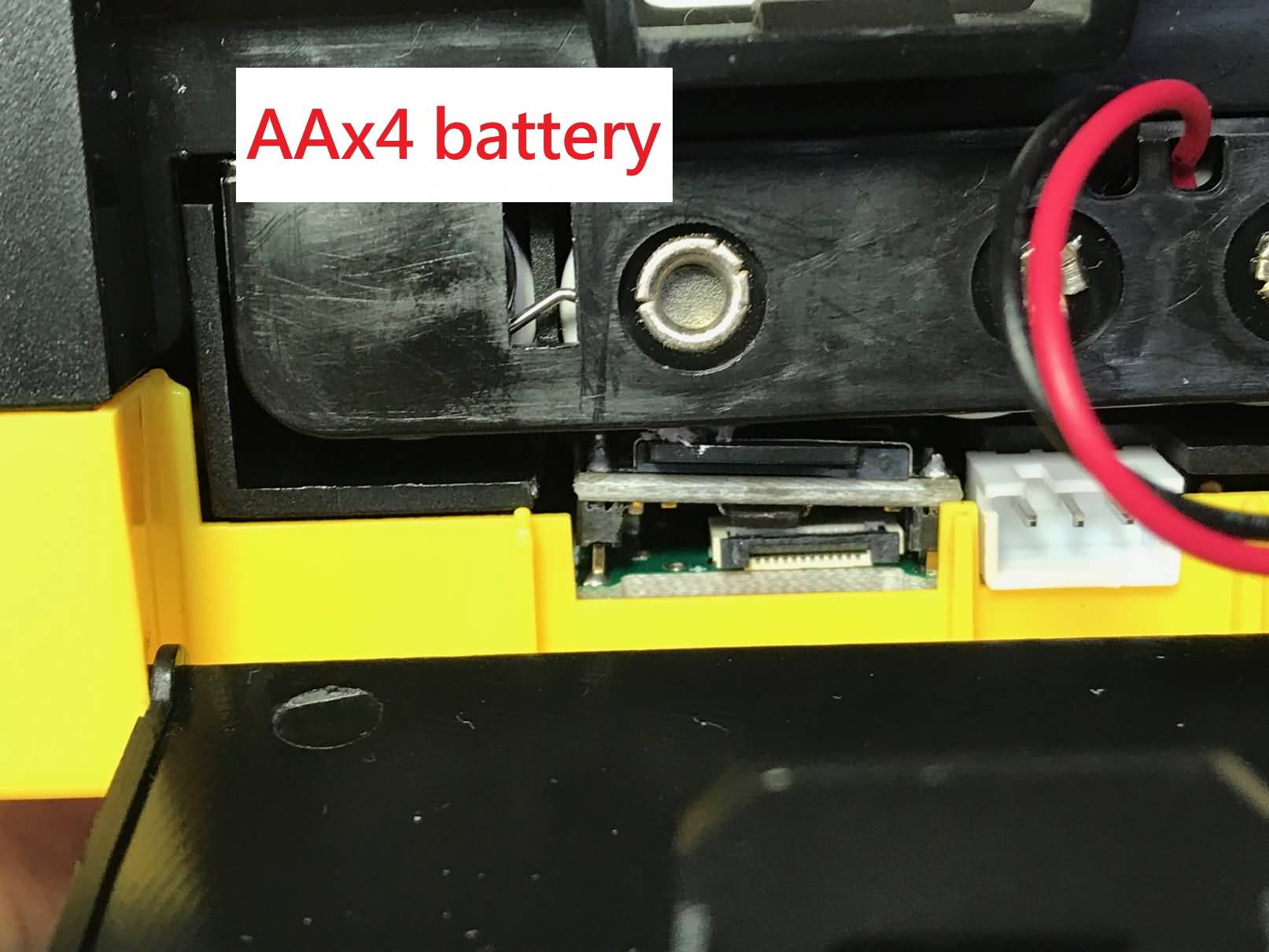

1, 4XAA batteries test.



2, 2S LiPo batteries test.
Last edit: 25 Apr 2018 12:49 by dc59.

Please Log in or Create an account to join the conversation.

More
26 Apr 2018 00:09 #68863 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter
Two more test.

1, 4xAA batteries voltage monitor


2, Brand new 4 Alkaline AA batteries

Please Log in or Create an account to join the conversation.

More
26 Apr 2018 07:11 - 26 Apr 2018 07:14 #68867 by ramunas
Replied by ramunas on topic Jumper T8SG V2 plus transmitter
It sure seems like the 3.3v regulator is dropping out of regulation. You see in test 1 that problems tend to show up exactly when the increased current of the voice message is in progress. In test 3 you see that the reported battery voltage jumps upward when the voice message is underway. The erroneous reporting of a higher battery voltage was seen on the original T8SG when the battery dropped a little below 7 volts resulting in the 3.3v regulator drop out. Since the 3.3v bus is the reference for the battery reading, any drop will result in an erroneously higher battery reading. This sure looks like the same effect, but now occurring at about 5.1v at the current level on your transmitter. That is bad news for anyone who would like to use 4xAA. Someone should really do an input voltage scan while monitoring the 3.3v and 5v bus to understand the behavior and limitations of this new power system.
Last edit: 26 Apr 2018 07:14 by ramunas. Reason: spelling

Please Log in or Create an account to join the conversation.

More
26 Apr 2018 09:02 #68868 by vlad_vy
Replied by vlad_vy on topic Jumper T8SG V2 plus transmitter
What is Vcc for DFPlayer in T8SG V2?

Please Log in or Create an account to join the conversation.

More
26 Apr 2018 15:33 - 26 Apr 2018 15:34 #68872 by Fernandez
Replied by Fernandez on topic Jumper T8SG V2 plus transmitter
I have excactely the same issue on my U7E that the voltage shown on the display is jumping, the fluctuation is more when using highest power and in my case Frsky is worst than flysky. So this is not a coincedence......

I expected the 3v3 stock regulator to be the issue, so I replaced it by heavier one. But still same issue.
Then I placed large capacitances 470uf on 3v3 rail and I placed one on the ADC volt sense input for battery monitoring still same issue. (it made voltage battery readouts slowly changing, but still it displayed the same fastly flucuations as without the capcitors..) The fluctuation btw is slow, is the vbat monitored at low sample rate?


I can remember at the time I tried RFI pick-up holding the flex coax with tx antenna close to the board and wires, but I could not point out were was the issue coming from.
In terms of RFI design, I would expect that all I/O pins pots switches, should at least have some capacitance or filtering close to the pcb, the pcb could be shielded, the wires could be twisted and have a ferrite choke, or use coaxes.

especially when using 2watt uhf links most Tx have issue due to bad shielding and RFI pick up.
Last edit: 26 Apr 2018 15:34 by Fernandez.

Please Log in or Create an account to join the conversation.

More
26 Apr 2018 23:39 #68875 by dc59
Replied by dc59 on topic Jumper T8SG V2 plus transmitter

vlad_vy wrote: What is Vcc for DFPlayer in T8SG V2?


3.3V

Please Log in or Create an account to join the conversation.

More
27 Apr 2018 03:25 #68877 by ramunas
Replied by ramunas on topic Jumper T8SG V2 plus transmitter
Wow! That explains it. The original T8SG had the buzzer, LCD, and other auxiliary stuff on the 5v bus. You really don't want the voice stuff that has bursts of activity on the same 3.3v regulator that supplies the 4-in-1 RF chips and reference voltages for the ADC. If the voice stuff has to be on 3.3v, then a second dedicated regulator for auxiliary equipment would be a safer design.

Please Log in or Create an account to join the conversation.

More
27 Apr 2018 04:26 #68878 by vlad_vy
Replied by vlad_vy on topic Jumper T8SG V2 plus transmitter
Will be better to find 5.0V source on T8SG V2 mainboard and connect DFPlayer Vcc to 5.0V.

Please Log in or Create an account to join the conversation.
