Deviation for Devo F4?

More
31 Aug 2016 21:01 #53341 by Arnold
Replied by Arnold on topic Deviation for Devo F4?

Epitaph wrote: ... I thought ... I might as well add the 6 blue LEDs that the F7 has ...

I'd like to do this too. B) Can you provide more info?

Too many hobbies & too many Devos!
Who knows where the time goes?

Please Log in or Create an account to join the conversation.

More
31 Aug 2016 21:04 #53342 by Epitaph
Replied by Epitaph on topic Deviation for Devo F4?
I just removed the SMD LEDs from one of those 12V strips, cut the plastic out a little inside, and stuck them in place, then soldered them up with some resistors and fed them from the 5V point on the secondary screen board (the red wire that comes from the primary board).

Please Log in or Create an account to join the conversation.

More
01 Sep 2016 05:21 - 01 Sep 2016 05:25 #53352 by Arnold
Replied by Arnold on topic Deviation for Devo F4?
Sounds simple. I'll probably have questions.
When you say, "cut the plastic out a little inside" I guess you mean inside the tx, in the vicinity of the buttons, right?

Too many hobbies & too many Devos!
Who knows where the time goes?
Last edit: 01 Sep 2016 05:25 by Arnold.

Please Log in or Create an account to join the conversation.

More
01 Sep 2016 06:52 #53354 by Epitaph
Replied by Epitaph on topic Deviation for Devo F4?
The clear part has little notches cut out for the LEDs, but there is a circle of black plastic around that which I had to cut as the LEDs I had were too big to just slot straight in. And make sure when you fit them that they don't "invade" in the inner part of the circle, or they'll scratch against the buttons when you use them.

Please Log in or Create an account to join the conversation.

More
01 Sep 2016 22:49 - 03 Sep 2016 20:49 #53389 by Arnold
Replied by Arnold on topic Deviation for Devo F4?
OK, thanks.
In the mean time...

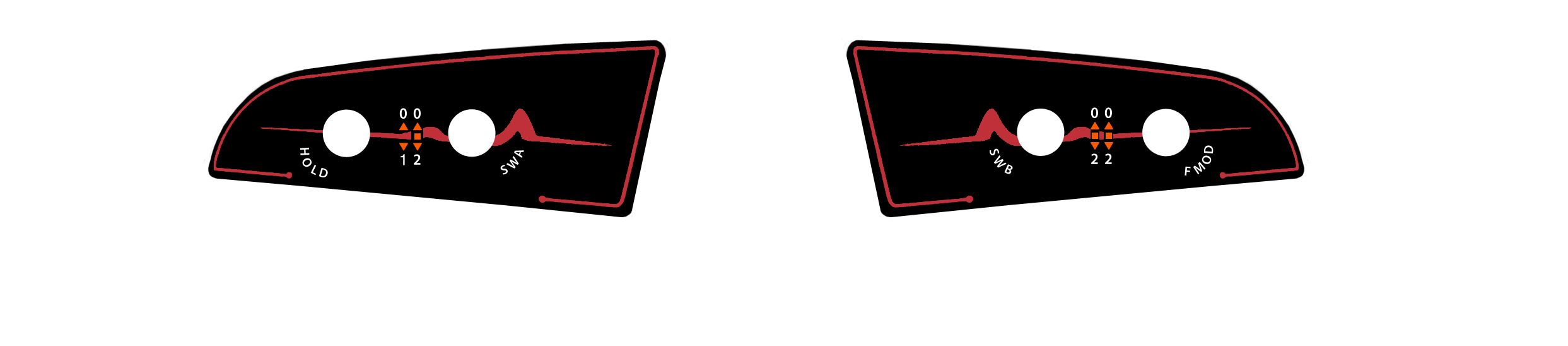

I used a Photoshop file provided by Coldbrew for the 7E Switch panel (post #44244) and made a version for the F4 based on his work. Attached is a jpg version in its current state. It may be useful or not depending on your switch layout. Maybe I can make a version that suits your needs if you let me know. :)
Or I could just provide the layered Photoshop file (PSD) so you can roll your own.

Too many hobbies & too many Devos!
Who knows where the time goes?
Attachments:
Last edit: 03 Sep 2016 20:49 by Arnold.

Please Log in or Create an account to join the conversation.

More
02 Sep 2016 13:07 #53409 by Epitaph
Replied by Epitaph on topic Deviation for Devo F4?
Looks good, although the only problem is we haven't been able to identify the HOLD switch

Please Log in or Create an account to join the conversation.

More
09 Sep 2016 02:24 #53661 by Arnold
Replied by Arnold on topic Deviation for Devo F4?
What happened to djtrance and his efforts to fix the channel monitor screen? I was hoping he could fix it. :unsure:

Too many hobbies & too many Devos!
Who knows where the time goes?

Please Log in or Create an account to join the conversation.

More
09 Sep 2016 14:48 - 09 Sep 2016 14:49 #53688 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
sorry, I haven't to much time now, but you can check my repo on git, so see what I forget to fix.
this repo can only make the emu for devof7 but the devo f7 and f5 has the same menu screen.
for build the emu, you can go to src and write this command.

make TARGET=emu_devof7
and ./emu_devof7.elf

mu repo is: github.com/djtrance/deviationtx
Last edit: 09 Sep 2016 14:49 by djtrance.

Please Log in or Create an account to join the conversation.

More
14 Sep 2016 23:50 #53867 by Arnold
Replied by Arnold on topic Deviation for Devo F4?
LED's ... The ones I got are way too small - about 1/2 the size of a grain of sand. Too small for me, anyway. eBay shopping again.

Too many hobbies & too many Devos!
Who knows where the time goes?

Please Log in or Create an account to join the conversation.

More
27 Oct 2016 20:03 #55456 by SirDomsen
Replied by SirDomsen on topic Deviation for Devo F4?
Any progress here? djtrance? :)

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 14:34 #55668 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
Hi,
no one has tested the code that I uploaded to my git.
there are some things that I must fix, but if no one help me to test it, is more dificult. because now I have not to much time to do it, but with yours help I can do it.

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 15:28 #55673 by SirDomsen
Replied by SirDomsen on topic Deviation for Devo F4?
Seems,like I havebto,get into how to build deviation then? I was hoping to see it,in the,nightlies,(or a version here in this thread?) but no worries about that ;)

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 15:38 - 04 Nov 2016 18:22 #55675 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
you candownload the emulator file with this link :

mega.nz/#!fkdRhSoa!vxV46L9SCqDV5GqXdrBvQZjNVcWnU0RPMYVoPQ98CSA


but is compiled to linux.
Last edit: 04 Nov 2016 18:22 by djtrance.

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 16:27 #55680 by SirDomsen
Replied by SirDomsen on topic Deviation for Devo F4?
Linux is OK, I have a Ubuntu machine running. But Link,requires,a PW?

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 18:22 #55683 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
Ok there are new links :P sorry ..

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 19:53 #55685 by victzh
Replied by victzh on topic Deviation for Devo F4?
Can I build it and try on a real F4? I plan to add support for my module to F4 anyways (adds real filesystem and 4-in-1 module).

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 19:57 #55686 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
I has not put the changes to the F4..
all the code are into F7, but the code is exactly the same for F4, if you what, you can copy the files to theF4 .

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 20:00 #55687 by victzh
Replied by victzh on topic Deviation for Devo F4?
Why is your project has no connection to the DeviationTX/deviation? Is it not a clone? Then it is harder to compare the changes and put code back into the main project.

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 20:06 #55688 by djtrance
Replied by djtrance on topic Deviation for Devo F4?
my project is a fork of the original, because my devoF7 has more memory like the original, but there are only one thing that is different to the official (the memory config).
mustn't be hard to compare with original

Please Log in or Create an account to join the conversation.

More
04 Nov 2016 20:11 #55689 by victzh
Replied by victzh on topic Deviation for Devo F4?
So your changes are in commits 0b73ebd and 7b11377?
