Installing Frsky M9 Gimbal into Walkera Devo12S

More
25 Apr 2017 09:56 #61757 by richardclli
M9 Gimbal is too good that it uses a Hall effect chip instead of using a potentiometer. With the help of 3D printer, I have installed these gimbals into my beloved Devo 12S, there is the steps required:

1. Use 3D printer to print out custom parts:

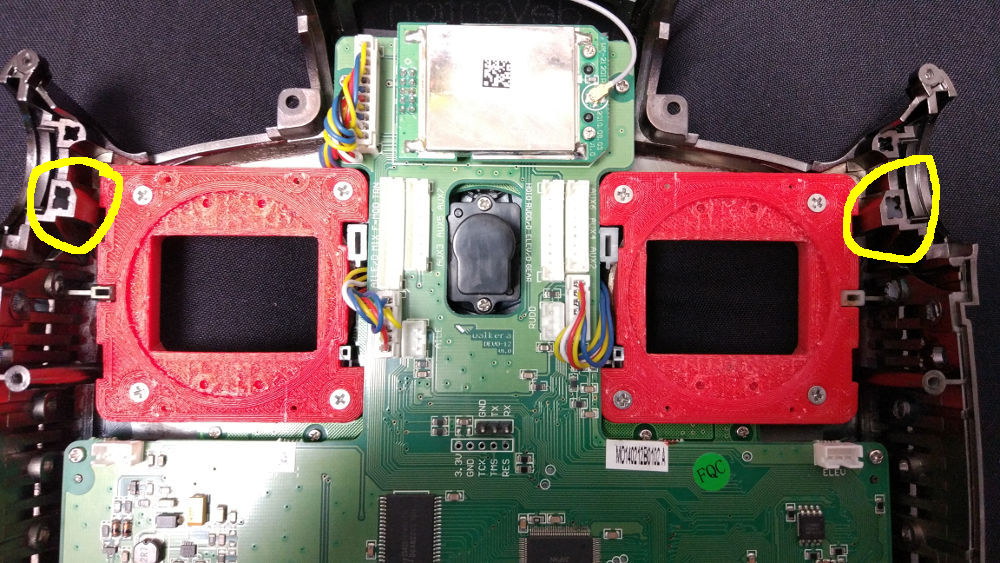

2. Trim the plastic circled in yellow, so that it is with the same level as the installed part:


3. Install the part in both sides:


4. And install the tapper screws, make sure that you used the correct type of screw so that the surface is flat after installation:


5. The gimbals need some trimming in the plastic housing as well, so that it can fit into the controller without any problem:



Please note the orientation of the installation when you work out the trimming:

Please Log in or Create an account to join the conversation.

More
25 Apr 2017 10:05 #61758 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
6. The part circled in yellow need to trim as well, otherwise it will affect other parts:

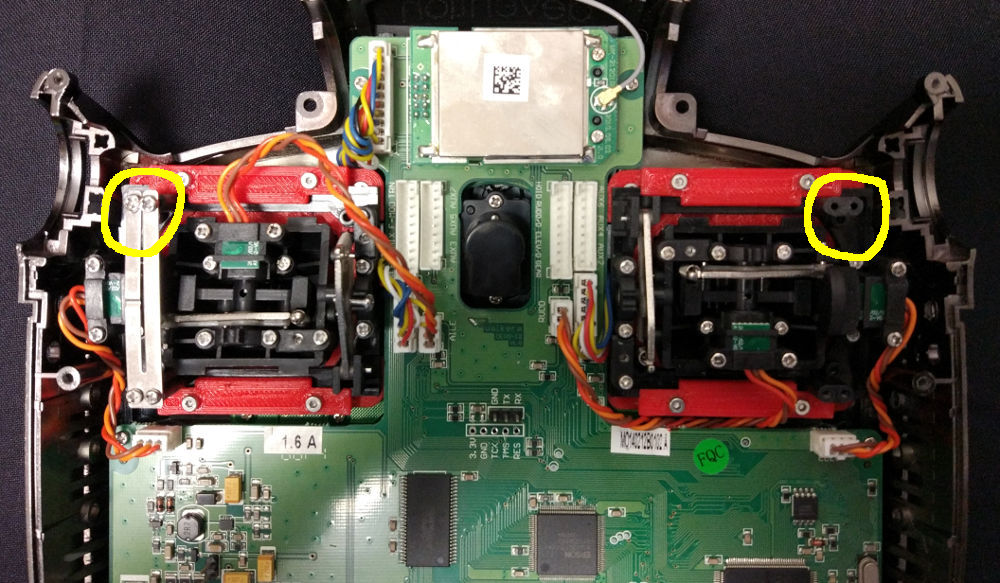

7. You need to make sure the locations circled in yellow is low enough so that it will not affect other parts:


8. This is the clam presser part and the photo shows how it works:


9. Install both gimbals and fasten the screws (M2x10 is used)


10: The power plug comes with the gimbal is suitable with Devo12S, just reused it and make sure the pins are organize like this:


11. Put everything together, and done!



12. Finally you need to manually adjust the tx.ini for the calibration, since the THR and ELE are reversed

[calibrate1] << AIL
max=3200
min=530
zero=1843
[calibrate2] << ELE,swap Min and Max after calibration
max=940
min=3680
zero=2219
[calibrate3] << THR,swap Min and Max after calibration
max=690
min=3340
zero=2041
[calibrate4] << RUD
max=3210
min=690
zero=1934

Finally, all done and start flying ^.^

Please Log in or Create an account to join the conversation.

More
25 Apr 2017 18:25 - 25 Apr 2017 18:26 #61772 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Here are the 3D printing files for the parts, hope you all enjoy this mod. B)

File Attachment:

File Name: Devo12SM9Parts.zip
File Size:217 KB
Attachments:
Last edit: 25 Apr 2017 18:26 by richardclli.

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 02:22 #61782 by M8A4X
Great tutorial! Looks very tempting ;)

Despite the fact that the gimbals in my 12S are still in perfect shape (centering and travel range without jitter) this looks like a very good option to upgrade the gimbals.

Thank you very much, richardclli!

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 05:38 #61788 by MacGyverek
Replied by MacGyverek on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Your skin in Devo12S is very good, too. Could you share this skin??

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 08:02 #61789 by Fernandez
Replied by Fernandez on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Very nice mod well done!!!! When sticks are full out too the sides, they do not touch, blocked byy the surroundings?


Seeing this, likely at some point someone will design and printout a full TX housing, then install f.i. a U7E board with deviation.
Were is this hobby going.......

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 10:22 #61791 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Will not touch with the stick head that comes with the M9 Gimbal.

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 10:30 #61792 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S

Fernandez wrote: Seeing this, likely at some point someone will design and printout a full TX housing, then install f.i. a U7E board with deviation.
Were is this hobby going.......


Well, I can work out the design of the housing, anyway B)

May I ask what is the U7E board? The universal Tx board proposed by PB? Already done?

Please Log in or Create an account to join the conversation.

More
26 Apr 2017 18:21 #61805 by Fernandez
Replied by Fernandez on topic Installing Frsky M9 Gimbal into Walkera Devo12S
No there is some discussion in other topics were people are using standard ARM development module and hooking up display and pots switches. Also some one designed a small pcb, wich is functional compatible to the U7E, Ultimate 7e. Basically that could be inserted in Tx of choice.
But those projects are bit of stationary.

Please Log in or Create an account to join the conversation.

More
27 Apr 2017 01:24 #61813 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
I have initiated another thread to see if we can build a custom Tx based.on available parts. See anybody in the community is interested.

Please Log in or Create an account to join the conversation.

More
30 Apr 2017 02:24 #61857 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
The perfect transmitter !! Defiantly on my list of things to do soon as i find a way to get the parts printed as i have no 3D printer :(

Thanks so much posting this incredible mod for the 12s !!

Please Log in or Create an account to join the conversation.

More
30 Apr 2017 16:43 #61877 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Found a site to upload files and get them printed if anybody is interested..
www.3dhubs.com/3dprint#?place=United%20S...prototyping-plastics

Please Log in or Create an account to join the conversation.

More
30 Apr 2017 20:38 - 30 Apr 2017 20:38 #61884 by Deal57
Love 3Dhubs.com. Lots of choices and my local providers.

Deviation Devo7e 3way switch mod, A7105, NRF24L01
Devo6s 2x2 switch mod, trim mod, haptic, multimodule, A7105, NRF24L01, CC2500
Devo12e 4-in-1 with voice mod -- it speaks!!
Last edit: 30 Apr 2017 20:38 by Deal57.

Please Log in or Create an account to join the conversation.

More
01 May 2017 05:09 #61892 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
for printing I used ABS instead od PLA, because ABS has higher melting point and will not get soften under sunlight.

Please Log in or Create an account to join the conversation.

More
03 May 2017 17:30 #61964 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Have a question about changing the min/max calibration..When they are reversed does the channel sliders still move as they should? Or will they be reversed on the display? Example is when throttle is raised will the channel display slider move up like it supposed to or will it move down? Also is it possible instead of reversing the calibration min/max setting just to simply flip the Hall sensor over 180 degrees to get the same results?

Please Log in or Create an account to join the conversation.

More
04 May 2017 00:45 #61976 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
1. Hall sensors need to follow fixed Vcc and GND wiring, that is why it cannot be flipped like poteniometer.
2. Reversing the calibration will make the display normal, i.e. same movement and direction with the original gimbal.
3. If you do not want to reverse the calibration, another way is to use virtual channel to reverse the source first before feeding it in the channel, otherwise you may need to program wield curve to suit the.purpose.

Please Log in or Create an account to join the conversation.

More
04 May 2017 04:09 #61979 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
No worries in reversing the calibration i just wanted to make sure the input slider moved correctly as it does with the original gimgal does...Thanks a bunch for explaining :)

Please Log in or Create an account to join the conversation.

More
06 May 2017 02:34 #62052 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Got all the parts ordered and looking forward to doing the mod..Will update when finished, hopefully all goes well..:)

Please Log in or Create an account to join the conversation.

More
06 May 2017 09:03 #62055 by richardclli
Replied by richardclli on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Please feel free to ask me if you have any difficulties.

Please Log in or Create an account to join the conversation.

More
06 May 2017 17:55 - 06 May 2017 20:10 #62065 by magic_marty
Replied by magic_marty on topic Installing Frsky M9 Gimbal into Walkera Devo12S
Did you reuse the screws from the M9 gimbal plate to mount the printed plates to the transmitter case?

Found these for the presser clamps... www.ebay.com/itm/25-Metric-Socket-Head-C...d:g:sCcAAOSw-CpX~k5I
Last edit: 06 May 2017 20:10 by magic_marty.
