14 Jan 2017 07:14 #57922 by bjr981s
Replied by bjr981s on topic 3in1 / 4in1 RF module - legal in Europe, or not?
The Deviation Firmware is not legal in any Country if you use it to exceed local regulations. It allows you to exceed both FCC and CE Transmit power levels.

You just have to be responsible and not program the TX to exceed your local regulations and you are then fine.

Cheers

Please Log in or Create an account to join the conversation.

More
16 Jan 2017 14:02 #58030 by Iroquois
Replied by Iroquois on topic 3in1 / 4in1 RF module
This may be a silly question and someone may have answered it. Is it possible to piggy-back a second regulator in parallel with the existing Devo 7e voltage regulator. I believe this works and it would be a whole lot simpler than most of the other options. I have modded two 7e's and cannot get them to work with two modules added. They are fine with one.

Please Log in or Create an account to join the conversation.

More
16 Jan 2017 15:37 #58036 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module
adding a second vreg for the 3in1 or separate modules is an easy option, have a look here >> www.deviationtx.com/forum/7-development/...dule?start=780#52623 the 4in1 takes battery voltage so doesn't require this

Please Log in or Create an account to join the conversation.

More
18 Jan 2017 04:41 #58108 by Iroquois
Replied by Iroquois on topic 3in1 / 4in1 RF module
Surely an even simpler solution would be to replace the existing regulator with a higher rated one?

Please Log in or Create an account to join the conversation.

More
18 Jan 2017 05:32 #58110 by magic_marty
Replied by magic_marty on topic 3in1 / 4in1 RF module
Finally received my 4n1 i ordered on 12-30-2016 today even tho i paid extra for shipping it still took it long enough to get here and soon after i ordered it they stocked them in the US warehouse..Figures lol

Got a couple questions on the installation, does it matter which module hooks to what? Like should the NRF hook to the TMS or TCK ect..
I am installing into my 12s so i plan on using the B3 pad for one of the hook ups...

Also is the TMS =A13 and TCK=A14 ? or is it other way ? i can't remember...

Thanks all..

Please Log in or Create an account to join the conversation.

More
19 Jan 2017 01:37 #58154 by Deal57
Replied by Deal57 on topic 3in1 / 4in1 RF module
It doesn't really matter which radio goes to which connector as long as you match them in the Hardware.ini. I have A13 = TMS and A14 = TCK. I chose my connections by how I wanted to route my cable :silly:
Deviation Devo7e 3way switch mod, A7105, NRF24L01
Devo6s 2x2 switch mod, trim mod, haptic, multimodule, A7105, NRF24L01, CC2500
Devo12e 4-in-1 with voice mod -- it speaks!!

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 06:34 - 20 Jan 2017 06:46 #58221 by magic_marty
Replied by magic_marty on topic 3in1 / 4in1 RF module
Well this not going well ..I installed the module got everything correctly hooked up and now i can't edit the hardware.ini file it says the drive is corrupt and it wont let me copy the file or replace it with the edited one i need to enable the modules...i get the missing module when i power up the 12s ...I don't understand why things just wont work sometimes when you follow the installation exactly

EDIT: Think i got it working I selected the drive in Windows and repaired it then it let me copy the edited hardware file to the tx..Seems to be working now but need to test out on some rx's to be sure....
Last edit: 20 Jan 2017 06:46 by magic_marty.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 14:13 #58239 by Tripe
Replied by Tripe on topic 3in1 / 4in1 RF module
Speaking of editing hardware.ini, I just ran into a snag from using the default Windows Notepad. I followed a youtube video to install the 4in1 into my Devo 10. It would bind to all my models, however, only the models that used cyrf6936 would allow me to adjust transmitter power. The other 3 modules would be stuck on "default".
I used Notepad++ to edit a fresh hardware.ini file and everything works as it should. This is mentioned here in this thread a ways back, but I searched quite a while to find it. Hopefully If I repeat it here, I can save someone a little time and frustration.
Good luck everyone!

:evil: Use NOTEPAD++ to edit! :evil:

Please Log in or Create an account to join the conversation.

More
25 Jan 2017 15:47 - 25 Jan 2017 16:02 #58378 by aMax
Replied by aMax on topic 3in1 / 4in1 RF module
A range test of the 4in1 from BG attached to the multiprotcol module from midelic & pascallanger. Any comparable tests for the Devo_line modules?


With DIY receiver.

With D8RII-plus
Devo7e, TaranisQ X7, R9M , 4in1 MM, Futaba FC18plusV3.2 & DFT/FLD-02
Last edit: 25 Jan 2017 16:02 by aMax.

Please Log in or Create an account to join the conversation.

More
25 Jan 2017 16:35 #58380 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module
as the actual rf module and protocols are the same then the results should be the same regardless of which daughterboard is used with the 4in1 (bar antenna and environmental issues of course) )

Please Log in or Create an account to join the conversation.

More
25 Jan 2017 18:43 #58383 by Fernandez
Replied by Fernandez on topic 3in1 / 4in1 RF module
I have to agree as long as the power level is 20dbm, range should be fine.

What I am more interested to know:
Is the output for all 4 chips correct anybody measured output levels?
Is the telemetry for all 4 chips, correct so preamp operational for all 4 chips and have telemetry received at 1.5km for all the 4 chips?
I the LNA PA switched correctly switched and only one module active at a time ?
Is the power consumption of a 4 in1 module correct so comaparable to 4 separate modules?

Anybody who can confirm those questions?

Please Log in or Create an account to join the conversation.

More
03 Feb 2017 07:43 #58689 by sittingmongooose
Replied by sittingmongooose on topic 3in1 / 4in1 RF module
I just purchased a Devo 10. I have this 3 in 1
www.banggood.com/CC2500-NRF24L01-A7105-M...4.html?rmmds=myorder
I was planning on installing it. I noticed a new 4 in 1 though on banggood. This one:
www.banggood.com/CC2500-NRF24L01-A7105-C...7.html?rmmds=myorder


After reading through, i saw that the older 4 in 1 has poor range compared to the 3 in 1. Has that changed with the new modules?
Also, is there a newer guide i should be following for the new 3 in 1 and 4 in 1?

Please Log in or Create an account to join the conversation.

More
03 Feb 2017 19:31 #58707 by Fliegersiggi
Replied by Fliegersiggi on topic 3in1 / 4in1 RF module
Hi guys...need some help please:

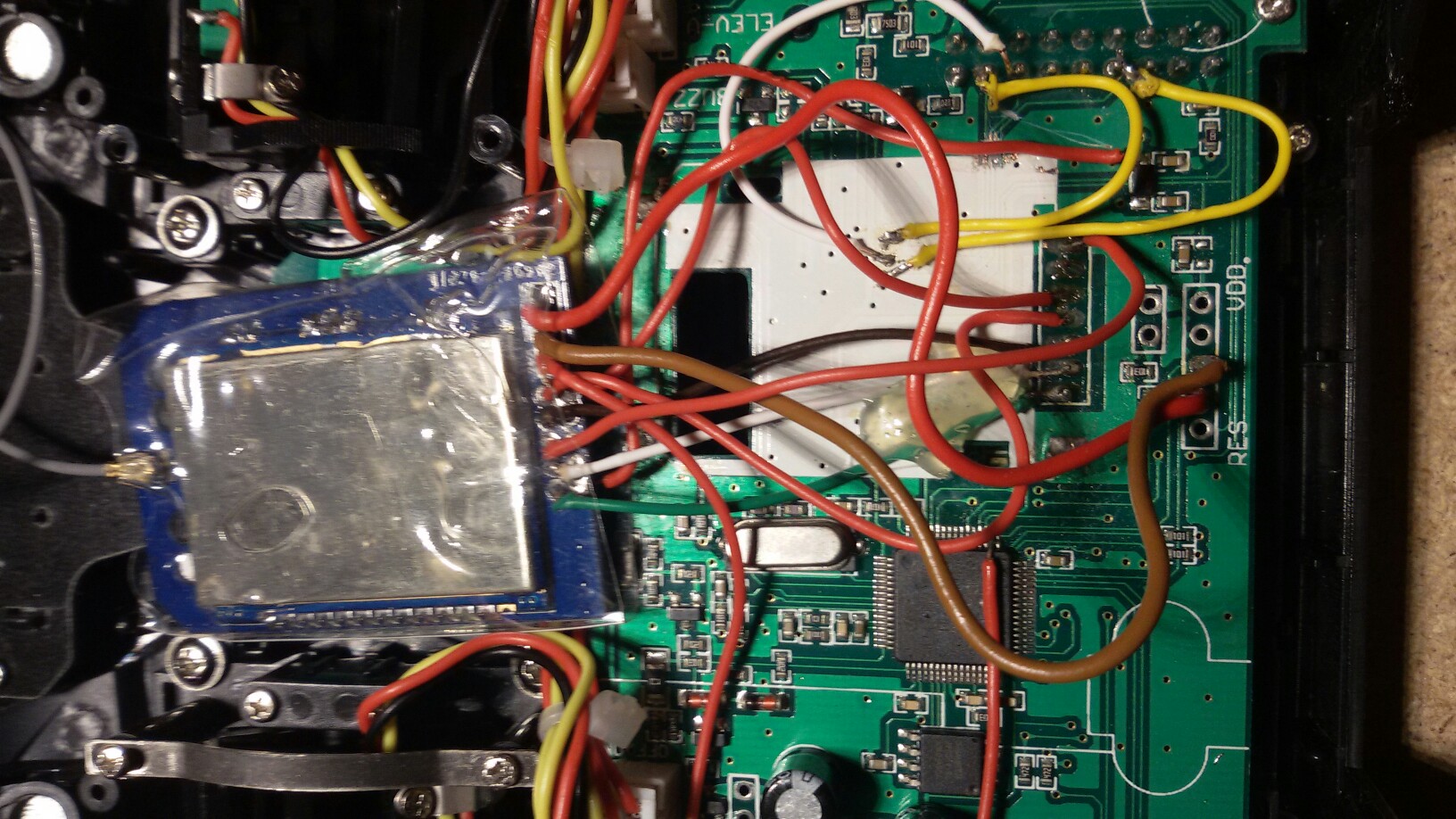

I added a 4in1 module to my 7e.
After some mistakes the cyrf... module works.
I can bind to my super cp.
But at startup i get a "missing module" meesage.
None of the other modules work.
I've triple checked the wiring and weldings...
I use a nighly build from 31.01.17...
I need some hints please:blink:
(Ignore the yellow and white cables on the right...please don't ask:blush: )
Siggi
Attachments:

Please Log in or Create an account to join the conversation.

More
03 Feb 2017 20:51 #58712 by Arnold
Replied by Arnold on topic 3in1 / 4in1 RF module
Have you made the appropriate changes to the hardware.ini file using a Unix compliant text editor?
Too many hobbies & too many Devos!
Who knows where the time goes?

Please Log in or Create an account to join the conversation.

More
03 Feb 2017 21:14 - 03 Feb 2017 21:17 #58713 by Fliegersiggi
Replied by Fliegersiggi on topic 3in1 / 4in1 RF module
Yes...sorry...i changed the hardware.ini
With notepad++
Last edit: 03 Feb 2017 21:17 by Fliegersiggi. Reason: Correction

Please Log in or Create an account to join the conversation.

More
03 Feb 2017 22:30 - 03 Feb 2017 22:36 #58718 by Arnold
Replied by Arnold on topic 3in1 / 4in1 RF module
Sounds perfect.
And can you confirm that those changes exist in the file that resides on the Devo?
I ask these questions because what you describe points to these issues rather than hardware
<Edit> Oh, one more thing...
Check all of the protocols on the radio to verify that there are * (asterisks) at the beginning of the protocol names. If there are no asterisks, try cycling the power on the radio and watch for missing module messages again.
Too many hobbies & too many Devos!
Who knows where the time goes?
Last edit: 03 Feb 2017 22:36 by Arnold. Reason: added comment.

Please Log in or Create an account to join the conversation.

More
04 Feb 2017 00:13 - 04 Feb 2017 00:17 #58722 by Arnold
Replied by Arnold on topic 3in1 / 4in1 RF module

victzh - in post #56313 wrote: OK, promised photos of my adapter ...


Victor, any update on this project? Or did I miss it somewhere?
Too many hobbies & too many Devos!
Who knows where the time goes?
Last edit: 04 Feb 2017 00:17 by Arnold.

Please Log in or Create an account to join the conversation.

More
04 Feb 2017 11:04 - 04 Feb 2017 17:11 #58736 by Fliegersiggi
Replied by Fliegersiggi on topic 3in1 / 4in1 RF module
Yes, i can confirm the existence on devo because i have changed them more than once....
All other protocols that don't depend on the Cyrf... have an asterisk in front.
When i change the settings, exchanging A13 and A14, then the error shows the other module...

Perhaps trying another nightly???
Last edit: 04 Feb 2017 17:11 by Fliegersiggi. Reason: Correction

Please Log in or Create an account to join the conversation.

More
08 Feb 2017 10:48 - 08 Feb 2017 10:50 #58918 by benoit35
Replied by benoit35 on topic 3in1 / 4in1 RF module
Hello,
I am using this 3 in 1 module from Bangood for more than 6 month now in my devo 8S.
www.banggood.com/CC2500-NRF24L01-A7105-M...04.html?rmmds=search

could I flash an update version in my module ?
using the code from here
github.com/pascallanger/DIY-Multiprotocol-TX-Module

For the configuration on a devo 8S
- is it PPM or Serial ?
- if I want to use the telemetry (frsky protocol) what are the options to set in the _config.h for the Devo ?

Thanks
Last edit: 08 Feb 2017 10:50 by benoit35.

Please Log in or Create an account to join the conversation.

More
08 Feb 2017 11:23 - 08 Feb 2017 11:27 #58920 by vlad_vy
Replied by vlad_vy on topic 3in1 / 4in1 RF module
3in1 module has not MCU and memory, it managed by transmitter over SPI bus. For updates you need flash latest firmware to your transmitter (Devo8). What Deviation version do you use?
Last edit: 08 Feb 2017 11:27 by vlad_vy.

Please Log in or Create an account to join the conversation.
