Devo 12s 3in1 / 4in1 RF module neat installation.

More
29 Nov 2017 00:03 - 29 Nov 2017 00:06 #66247 by dc59

devoflyer wrote:
On the Module I can see i need to connect,
From NRF24L01 to existing RF Module.
3.3V and CE to VN
Mosi to Mosi
Miso to Miso
Gnd to Gnd
Sck to Sck

I'm assuming CSN goes to either A13, A14 or A15 (dont know where they are).
I'm unsure where to connect IRQ from the NRF24L01

Any and all help is apreciated.


I don't know why , I can't see any picture in your post , I have some F7 picture for you as below.




and you can reference DEVO10 connection as below .
www.deviationtx.com/forum/7-development/...4in1-rf-module#43726
Attachments:
Last edit: 29 Nov 2017 00:06 by dc59.

Please Log in or Create an account to join the conversation.

More
29 Nov 2017 00:11 #66248 by dc59

retiredfist wrote: Could anyone please help me take a picture inside their Devo 8S with the 4 in 1 module along with where the pinouts go.:(
Please...


Read these 2 DEVO8S posts carefully,

www.deviationtx.com/forum/7-development/...odule?start=40#43829
www.deviationtx.com/forum/7-development/...dule?start=120#44256

and remember that :
TMS=A13
TCK=A14

Good luck! :cheer:

Please Log in or Create an account to join the conversation.

More
30 Nov 2017 01:09 #66275 by retiredfist
Replied by retiredfist on topic Devo 12s 3in1 / 4in1 RF module neat installation.

dc59 wrote:

retiredfist wrote: Could anyone please help me take a picture inside their Devo 8S with the 4 in 1 module along with where the pinouts go.:(
Please...


Read these 2 DEVO8S posts carefully,

www.deviationtx.com/forum/7-development/...odule?start=40#43829
www.deviationtx.com/forum/7-development/...dule?start=120#44256

and remember that :
TMS=A13
TCK=A14

Good luck! :cheer:


Hmm looks like a bit of soldering on a chip of the Devo 8S' main board. I can't see where this cable goes to.

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 00:53 #66288 by devoflyer
Hi dc59

Thanks for the help.
I dont see anywhere for the IRQ from the NRF24L01 module to go so i didnt connect it.

I tried connecting it up using the connections you specified and from the devo 10 referance but it didnt work.
I also tried this module in a devo 8 but it also didnt work. Im thinking I might have a faulty module.

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 01:25 #66292 by dc59

retiredfist wrote:
Hmm looks like a bit of soldering on a chip of the Devo 8S' main board. I can't see where this cable goes to.


at #2 post:

enable-a7105 = B3
has_pa-a7105 = 1
enable-cc2500 = A13
has_pa-cc2500 = 1
enable-nrf24l01 = A14
has_pa-nrf24l01 = 1

that's mean , you should connect RF module CSN pin to B3(MCU pin) or A13(TMS) or A14(TCK).

If you don't understand , please read module installation guide :
www.deviationtx.com/wiki/rf_module_installation/devo8

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 02:15 - 01 Dec 2017 02:16 #66293 by dc59

devoflyer wrote: Hi dc59

Thanks for the help.
I dont see anywhere for the IRQ from the NRF24L01 module to go so i didnt connect it.

I tried connecting it up using the connections you specified and from the devo 10 referance but it didnt work.
I also tried this module in a devo 8 but it also didnt work. Im thinking I might have a faulty module.


IRQ pin is unused, I have no idea why it doesn't work ? would you post some picture of your pin connection?

and post your hardware.ini file.
Last edit: 01 Dec 2017 02:16 by dc59.

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 22:41 #66304 by retiredfist
Replied by retiredfist on topic Devo 12s 3in1 / 4in1 RF module neat installation.

dc59 wrote: I finished DEVO 8S #3 RF module installation and confirm B3(pin 89) works fine as same as TomPeer has done few days ago.
and thanks for Richard96816 provided me soldering video, I just soldered it once and done.










enable-a7105 = B3
has_pa-a7105 = 1
enable-cc2500 = A13
has_pa-cc2500 = 1
enable-nrf24l01 = A14
has_pa-nrf24l01 = 1


Where does the thin wire That's soldered on the chip go? I think you call it the mcu

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 22:44 #66305 by retiredfist
Replied by retiredfist on topic Devo 12s 3in1 / 4in1 RF module neat installation.
Thanks :)

dc59 wrote:

retiredfist wrote: Could anyone please help me take a picture inside their Devo 8S with the 4 in 1 module along with where the pinouts go.:(
Please...


Read these 2 DEVO8S posts carefully,

www.deviationtx.com/forum/7-development/...odule?start=40#43829
www.deviationtx.com/forum/7-development/...dule?start=120#44256

and remember that :
TMS=A13
TCK=A14

Good luck! :cheer:


Hmm looks like a bit of soldering on a chip of the Devo 8S' main board. I can't see where this cable goes to.

Please Log in or Create an account to join the conversation.

More
01 Dec 2017 22:50 #66306 by retiredfist
Replied by retiredfist on topic Devo 12s 3in1 / 4in1 RF module neat installation.
I got it I think. The mcu really thin wire that is soldered on the chip connects to "csn"?

retiredfist wrote:

dc59 wrote: I finished DEVO 8S #3 RF module installation and confirm B3(pin 89) works fine as same as TomPeer has done few days ago.
and thanks for Richard96816 provided me soldering video, I just soldered it once and done.










enable-a7105 = B3
has_pa-a7105 = 1
enable-cc2500 = A13
has_pa-cc2500 = 1
enable-nrf24l01 = A14
has_pa-nrf24l01 = 1


Where does the thin wire That's soldered on the chip go? I think you call it the mcu

Please Log in or Create an account to join the conversation.

More
13 Dec 2017 06:53 #66472 by HaGe
Hi all,

Is there any experiance with the 4in1 Module and the oem receivers from FUTABA with/without telemetrie?

For my Devo 8S i´ve bought this 4in1 Module:
4in1 Module

I would like to buy this receiver with T-FHSS (Telemetrie):
R3001SB T-FHSS

and this one with S-FHSS:
R2001SB S-FHSS

Many Thanks

TX: Walkera DEVO 8s / RX: Walkera RX802 / Some DSMX
Telemetry: WK-CTL01-D
Models: Walkera SuperCP / T-REX 450 PRO / Blade 130x / FPV RaceCopter ZMR250

Please Log in or Create an account to join the conversation.

More
13 Dec 2017 06:56 #66473 by vlad_vy
T-FHSS protocol is not supported.

Please Log in or Create an account to join the conversation.

More
13 Dec 2017 07:01 #66474 by HaGe

vlad_vy wrote: T-FHSS protocol is not supported.

For now or never?
Thanks for your quick replay:) .

TX: Walkera DEVO 8s / RX: Walkera RX802 / Some DSMX
Telemetry: WK-CTL01-D
Models: Walkera SuperCP / T-REX 450 PRO / Blade 130x / FPV RaceCopter ZMR250

Please Log in or Create an account to join the conversation.

More
19 Jan 2018 15:31 #66998 by djtrance
Hi,
there are a new module from nordic the module is nrf51822 and it is compatible with nrf24l01, but can be use like bluetooth BLE maybe can be a good candidate to change the nrf24l01. maybe we can have bluetooth into deviation and use it to update the firmaware or to fly parrot mini drones and others with bluetooth BLE.

Please Log in or Create an account to join the conversation.

More
26 Mar 2018 05:53 - 26 Mar 2018 05:59 #68361 by vlad_vy

victzh wrote: OK, promised photos of my adapter. So far it works in Devo 10, Devo 7E and Radiolink AT9 (sort of, so far as Radiolink code works at all).

This is how the board with mounted 4-in-1, bare board, and Devo 7E/AT9 adapter look like:


Anybody know how works victzh 4IN1_FLASH adapter? Any diagram and comments? I don't understand how the 4in1 module use it at iRangeX IR8M transmitter. And why the IR8M USB filesystem is unstable. The IR8M use usual way for flash memory chip and 4IN1_FLASH support for RF module.
Last edit: 26 Mar 2018 05:59 by vlad_vy.

Please Log in or Create an account to join the conversation.

More
26 Mar 2018 21:45 #68367 by victzh
You can ask me :-) As far as I can recall you have my email address.

Basically it work by using couple of extra chips to switch CS signal between 4 RF chips and SPI memory (used only by Radiolink, and possibly Devo F line).

I found that the theory of SPI does not work well - some radio chips drive MISO and/or MOSI when they should not, so I have file system corruption sometimes. I decided to add an extra chip to isolate SPI memory from RF modules but did not do it yet - the idea came only recently.

I have schematics in KiCad, if you're interested.

Please Log in or Create an account to join the conversation.

More
28 Mar 2018 12:02 #68386 by SadSack
Hi.

Is there a preferred seller/version I should use?

Thanks Phil

Please Log in or Create an account to join the conversation.

More
05 Apr 2018 20:58 #68523 by Bisky

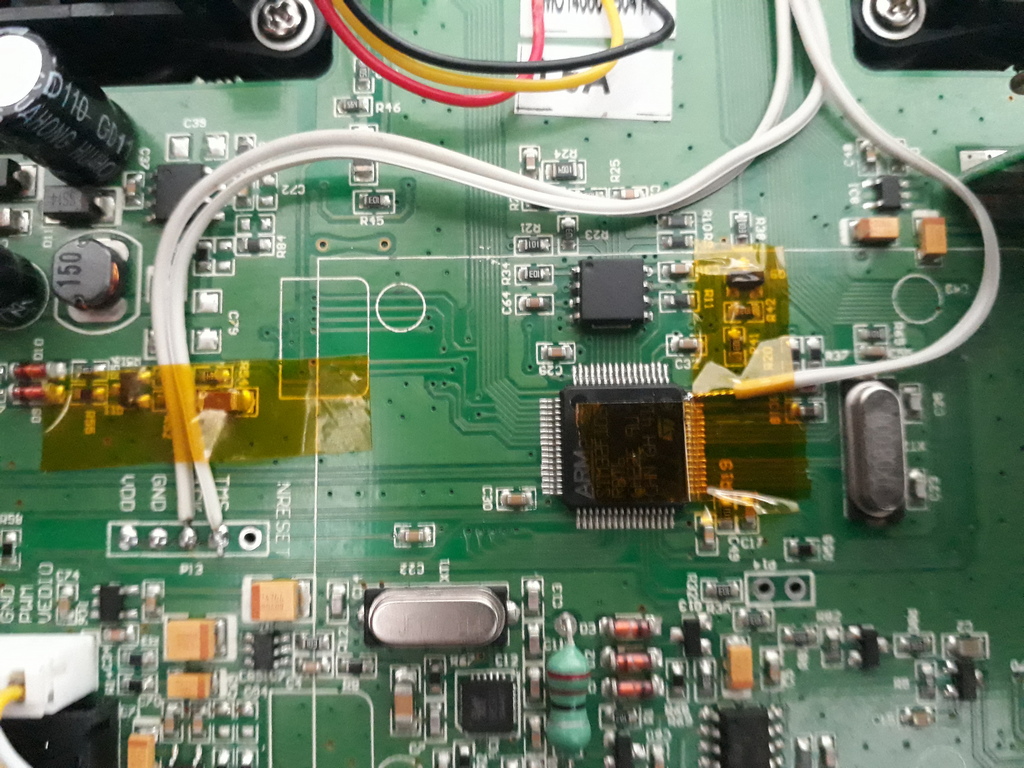

F7-XMS 4in1 install

Maybe it helps someone...




Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module
Attachments:

Please Log in or Create an account to join the conversation.

More
18 Jun 2018 08:14 #69662 by NathanBarguss
Replied by NathanBarguss on topic Devo 12s 3in1 / 4in1 RF module neat installation.
Hi All,

After an unfortunate weekend with my 7e taking a rather large static shock to the antenna and seemingly killing the processor, I decided to pick up a cheap replacement and swap the main-board. As I had the whole thing torn apart, it seemed like a good time to solve the 4-in-1 "rattling around inside the case" issue on the 7e, so I threw together a mount that can be screwed in place. It uses the void at the top of the 7e, and mounts to the left and right using the innermost screws / lugs of the gimbals.

I'm pretty happy how it turned out; I'm wondering if: There's enough people still using a 7e and the 4-in-1, and that there'd be interest in the mount for me to make the effort of cleaning it up and uploading to thingiverse or similar?





Anyway, please bare with me as I'm getting back up to speed, and again wanted to say a big thank-you to everyone working on Deviation!
Attachments:

Please Log in or Create an account to join the conversation.

More
18 Jun 2018 09:41 #69663 by goebish
Nice mount!
I can upload it to thingiverse but why don't you do it by yourself ?
(Note that I'm not good at 3D editing, I'm just barely able to edit simple stuffs in tinkercad ;))

Please Log in or Create an account to join the conversation.

More
18 Jun 2018 10:39 #69664 by czajunia

victzh wrote: You can ask me :-) As far as I can recall you have my email address.

Is this the adapter you mentioned quite a while ago that works on 7E without CPU soldering? I remember there was a brief discussion regarding the adapter and a possibility of making it available but I am not sure if this is the same one. Cheers.

Please Log in or Create an account to join the conversation.
