02 Jan 2017 00:52 #57444 by C0ckpitvue 777
Mjx Bugs 3 was created by C0ckpitvue 777
If anyone is interested and has the Mjx 3 bugs and willing to take captures,I am willing to have the tx shipped to a willing reliable source if the gurus are willing to deviate this monster.

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 17:03 #57481 by SeByDocKy
Replied by SeByDocKy on topic Mjx Bugs 3
It's no more compatible with the former MJX protocols ?

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 19:05 #57484 by Moeder
Replied by Moeder on topic Mjx Bugs 3
I doubt it, since is advertised with some kind of drone battery voltage telemetry (alarm). I guess someone needs to do a capture first.

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 20:04 #57488 by SeByDocKy
Replied by SeByDocKy on topic Mjx Bugs 3
Just made a test .... neither the X600 or X800 protocols are working :( .... I will try to capture some SPI data .... but I have so much works front of me that I can't promise :(

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 20:23 #57489 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3
Thanks Seby,I just ordered the TX from Aliexpress,I will also take some captures once it arrives.If you need an extra Tx I will order 1 and send it to you.

Please Log in or Create an account to join the conversation.

More
18 Jan 2017 01:22 #58100 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3

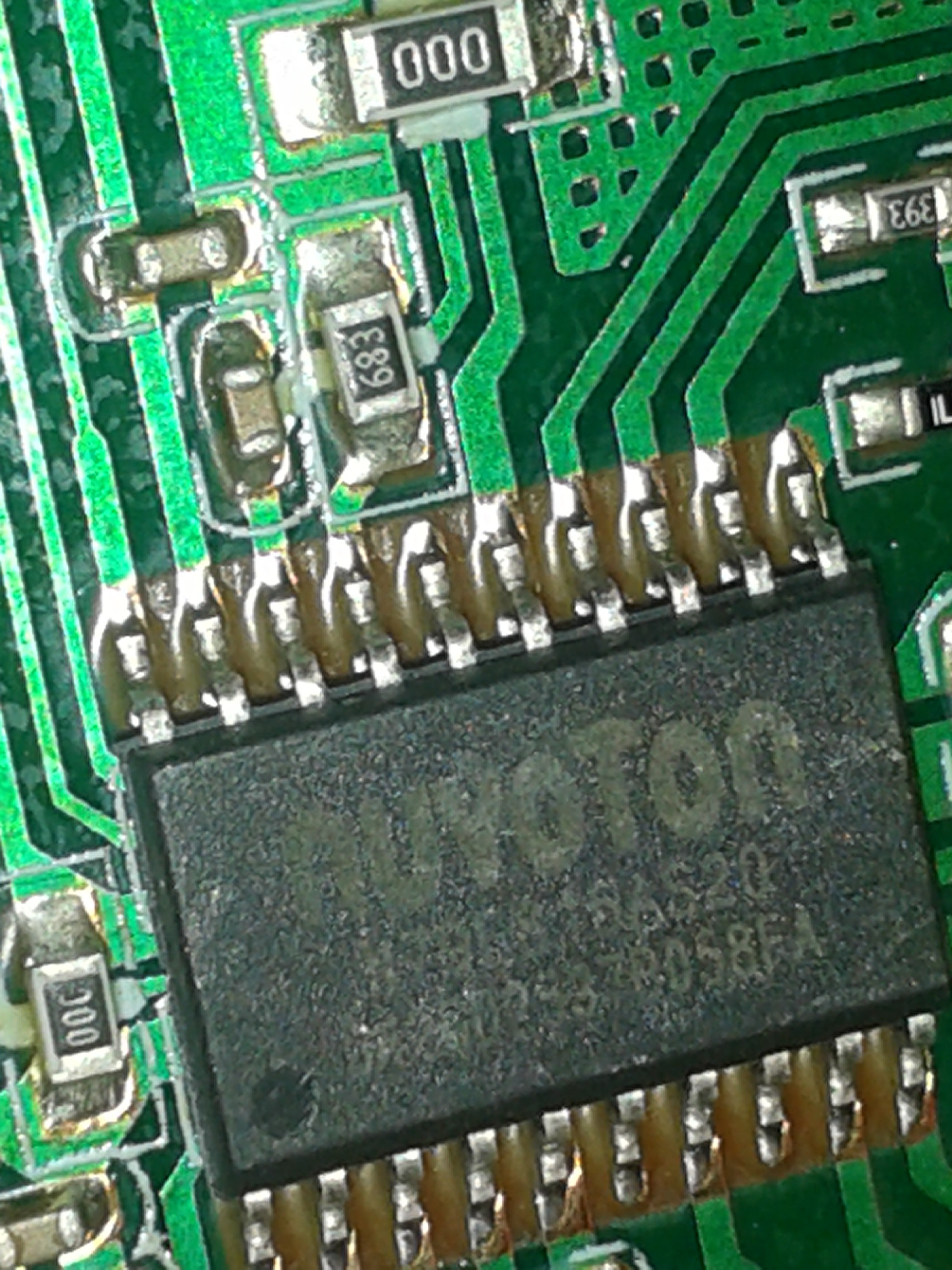

My bugs 3 tx just touched base,I opened it up and unsure where to solder the pins for captures.I took some pictures any help is greatly appreciated.
Attachments:

Please Log in or Create an account to join the conversation.

More
18 Jan 2017 03:34 #58104 by ajtank
Replied by ajtank on topic Mjx Bugs 3
We can tell the 2nd pin from the top is GND. If you can determine which one is V+ then connect the rest to the analyzer and post the file.
Attachments:

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
18 Jan 2017 03:36 - 18 Jan 2017 03:46 #58105 by goebish
Replied by goebish on topic Mjx Bugs 3
You can also connect vcc to the analyzer if not sure, no problem, but I think it's the top pin on ajtank's picture ;)
Last edit: 18 Jan 2017 03:46 by goebish.

Please Log in or Create an account to join the conversation.

More
18 Jan 2017 11:16 #58116 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3
Ok,found the vcc its the first 1 on top did not solder a wire to it,the 2 solder point on the left are also giving me voltage readings,do I also solder them.

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
18 Jan 2017 13:03 #58118 by goebish
Replied by goebish on topic Mjx Bugs 3
just ignore them.

Please Log in or Create an account to join the conversation.

More
19 Jan 2017 01:39 #58155 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3

Please Log in or Create an account to join the conversation.

More
19 Jan 2017 02:32 #58157 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3

C0ckpitvue 777 wrote: These are test captures just want to know if they are ok.
www.mediafire.com/file/mp1dk9crrmdd78q/1...%5D%282%29.logicdata
www.mediafire.com/file/mp1dk9crrmdd78q/1...%5D%282%29.logicdata

I took these captures with version 1.21 and took this 1, www.mediafire.com/file/gosphirqwcbned7/test.txt with salae 1.115

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
19 Jan 2017 02:40 #58158 by goebish
Replied by goebish on topic Mjx Bugs 3
I only had a look at the 1.21, looks fine, seems it's a A7105.

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
19 Jan 2017 02:43 #58159 by goebish
Replied by goebish on topic Mjx Bugs 3

Please Log in or Create an account to join the conversation.

More
19 Jan 2017 02:58 #58161 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3

goebish wrote: confirmed, this is an a7105:
www.dropbox.com/s/8sppfb7d9vj8yjz/mjxbugs3.txt?dl=0


Thanks Goebish,will upload the true captures hopefully this weekend.The spare transmitter beat the quad here,lol.Waiting for the quad to touch base.

Please Log in or Create an account to join the conversation.

More
06 Feb 2017 16:10 #58824 by coryroyce
Replied by coryroyce on topic Mjx Bugs 3
I'm interested in knowing if the Bugs 3 will be added to Deviation. Can some one let me know the current status?

Also, does Open TX use all the same Deviation updates so if this model is added to Deviation, then it will be available on Open TX at the same time.

Thanks in advance for the help.

Please Log in or Create an account to join the conversation.

More
06 Feb 2017 22:55 - 06 Feb 2017 22:57 #58834 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3
I'm waiting for my bugs 3 to arrive to continue taking captures.Tomtop must of put it on the scenic route half way past Pluto and a mile away from Venus, lol.It's taking forever.I ordered an extra tx and I did test captures that goebish said looked good.I'm just waiting last tracking info I had was on January 21st but soon a I get it I will post the captures.
Last edit: 06 Feb 2017 22:57 by C0ckpitvue 777.

Please Log in or Create an account to join the conversation.

More
26 Feb 2017 02:22 #59632 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic Mjx Bugs 3
Hey fellas sorry for the delay,I finally got the quad.I'm taking all captures tonight but want to know if these 2 are ok before I move on.Any feedback is greatly appreciated.
www.mediafire.com/file/3c3gab9rf4ier40/Arm+and+Disarm.logicdata
www.mediafire.com/file/peyqx4to0qm28sd/T...uad+Tx+off.logicdata

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
26 Feb 2017 02:38 #59634 by goebish
Replied by goebish on topic Mjx Bugs 3
Doesn't look good, I think you have SCS wrong, but I'm not sure.
Also, start capture before switching the transmitter on.

Please Log in or Create an account to join the conversation.

  • goebish
  • goebish's Avatar
  • Away
  • I Void Warranties
More
26 Feb 2017 02:43 - 26 Feb 2017 03:07 #59635 by goebish
Replied by goebish on topic Mjx Bugs 3
My mistake, your captures are fine.
edit: only the 1st one is fine.
Last edit: 26 Feb 2017 03:07 by goebish.
