New WLToys Protocol V977

denis747 wrote: When I was younger, in my twenties, I had very good eyesight and had no problem soldering in tiny spaces. Now at 41 it is a challenge to see very close. I will buy a soldering iron with a fine tip as my soldering iron isn't that good, it has a rather large tip which makes it a pain to solder small points.

My eyes are 11 years older than yours, i know how it feels.

If your iron has a copper tip file it down.

Bm

Hi Birdman, I "tapped" KN using the enter button as my devo7e has no touchscreen and nothing happens, i.e. no options appears so I can't see WLtoys. Also on the right hand side of the KN there is only Re-Init option and when I click using the enter button the bind option doesn't appear it only has the Re-Init option.

Could it be something to do with the latest nightly that I have installed?

I have deviation-devo7e-v4.0.1-583c468 nightly build installed.

This is what is in the error.txt file when I connected it to the pc and checked error logs;


[Soft fault]
devo7e-v4.0.1-583c468
R0 = 00000000
R1 = 00000034
R2 = 0800de14
R3 = 00000000
R12 = 00000000
LR [R14] (subroutine call return address) = 0800dde1
PC [R15] (program counter) = 0800ddf0
PSR = 21000000
BFAR = e000ed38
CFSR = 00000000
HFSR = 00000000
DFSR = 00000000
AFSR = 00000000
SCB_SHCSR = 00000000
Top of Stack:20004000
Stack Detect:20003f50
Backtrace:
20003f64 : 0800dde1
20003f8c : 0800e20f
20003fac : 08009537
20003fbc : 08009595
20003fdc : 0800a04f
20003fec : 0800a14d
20003ffc : 0801ce95
Done

Some good news . The CSN connector cable that I soldered to the NRF24L01 module had gotten loose and was shorting on the MOSI connector. I had to buy factor +3.00 reading glasses (from the pound shop, so cost only £1) to enable me to see very close lol. There are no error messages now and the bind option is available even the WLtoys option is also available lol. I will now put the tx back cover on and install a V977 module file and see if it binds fingers crossed .

that would do it

well done and good luck

Bm

Thank you very much , It is a success, it is working

cool

another member has a question regarding the 7e and kn protocol here
www.deviationtx.com/forum/model-configs/...s-v931-v977-v2#40752
because you have a 7e you might be able to better answer his question

thanks

Bm

I am impressed . Just had a test flight in 6g mode and it flies much much better using Deviation (Devo7e) than it used to with the original WLtoys Tx.
Also as I had already mechanically trimmed the V977 and leveled the swash plate, there are no drifts so no need to apply any trims. Very stable flight. I am a beginner so still afraid of trying 3 axis mode, I will wait till I get better.

very happy to hear it all worked out

Bm

Another newbie question, how do I adjust expo and dual rates on 3d (3 axis) mode for the V977? I have read the deviation manual but still confused.

denis747 wrote: Another newbie question, how do I adjust expo and dual rates on 3d (3 axis) mode for the V977? I have read the deviation manual but still confused.

I am interested as well. I need to adjust the tail dual rates as I need a bit of acceleration when pushing it up fast. Don't know whether is possible or not, but it would be good as I converted my 977 to 2s and althougt is very stable in flight, it is much more powerful and tail is sometimes hard to lock.

Thank you.

denis747 wrote: Another newbie question, how do I adjust expo and dual rates on 3d (3 axis) mode for the V977? I have read the deviation manual but still confused.

what switches does 7e have?

ini allows you to select and adjust expo/rates on mix 3 position sw

so, use ail/ele setup page to adjust and use sw to select

bm

Fernando wrote:

denis747 wrote: Another newbie question, how do I adjust expo and dual rates on 3d (3 axis) mode for the V977? I have read the deviation manual but still confused.

I am interested as well. I need to adjust the tail dual rates as I need a bit of acceleration when pushing it up fast. Don't know whether is possible or not, but it would be good as I converted my 977 to 2s and althougt is very stable in flight, it is much more powerful and tail is sometimes hard to lock.

Thank you.

try use rud expo/rates template

not sure if rx will allow settings above 100

not easy to test for any changes



bm

Birdman wrote:

denis747 wrote: Another newbie question, how do I adjust expo and dual rates on 3d (3 axis) mode for the V977? I have read the deviation manual but still confused.

what switches does 7e have?

ini allows you to select and adjust expo/rates on mix 3 position sw

so, use ail/ele setup page to adjust and use sw to select

bm

Thanks Birdman, I have modified my devo 7e by adding two 2 position switches, so one switch switches between 3 D and 6 g modes and the other switch switches between high and low rates. I will try adjust the expo and use one of the two position switches to switch between high and low rates.

be aware that ch5 rates and mix sw expo/rates are two entirely different settings

i leave ch5 rates on high and use mix switch for setting/selecting expo/rates

bm

use one of your 2 pos sw with only 2 of the mix sw settings

i think ch5 uses factory presets which cannot be changed

bm

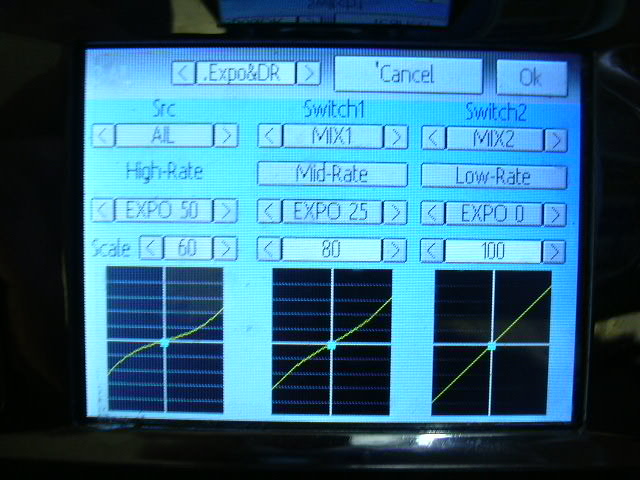

something like this

[channel2]
template=expo_dr
[mixer]
src=AIL
dest=Ch2
scalar=60
curvetype=expo
points=50,50
[mixer]
src=AIL
dest=Ch2
switch=MIX1 (change this to your choice of switch)
scalar=80
curvetype=expo
points=25,25

change settings to your liking
remember to change both ail and ele

you could use 3d sw to activate settings

bm

Thanks. I will remove one of the switches from channel five and leave channel five's switch source to none so it goes to its high default setting. I will then use that switch for the exp/dr rates.

if you can't figure it out post your ini and i will see what i can do with it

not knowing 7e and how switches are implemented makes it a bit hard for me

bm

Here is the ini.

name=V977
mixermode=Advanced
[radio]
protocol=KN
num_channels=11
tx_power=150mW

[protocol_opts]
Re-bind=No
1Mbps=No
Format=WLToys

[channel1]
template=simple
[mixer]
src=THR
dest=Ch1

[channel2]
template=expo_dr
[mixer]
src=AIL
dest=Ch2
scalar=60
curvetype=expo
points=35,35
[mixer]
src=AIL
dest=Ch2
switch=SW A1
curvetype=expo
points=35,35
[mixer]
src=AIL
dest=Ch2
switch=SW A1
scalar=40
curvetype=expo
points=35,35

[channel3]
template=expo_dr
[mixer]
src=ELE
dest=Ch3
scalar=60
curvetype=expo
points=35,35
[mixer]
src=ELE
dest=Ch3
switch=SW A1
curvetype=expo
points=35,35
[mixer]
src=ELE
dest=Ch3
switch=SW A1
scalar=60
curvetype=expo
points=35,35

[channel4]
template=simple
[mixer]
src=RUD
dest=Ch4

[channel5]
template=simple
[mixer]
src=SW A1
dest=Ch5
scalar=-100
curvetype=min/max
points=0

[channel6]
template=simple
[mixer]
src=HOLD1
dest=Ch6
curvetype=min/max
points=0

[channel7]
template=simple
[mixer]
src=FMODE1
dest=Ch7
curvetype=min/max
points=0

[channel8]
template=simple
[mixer]
src=SW B1
dest=Ch8
curvetype=min/max
points=0

[trim1]
src=LEFT_V
pos=TRIMLV+
neg=TRIMLV-
[trim2]
src=RIGHT_V
pos=TRIMRV+
neg=TRIMRV-
[trim3]
src=LEFT_H
pos=TRIMLH+
neg=TRIMLH-
[trim4]
src=RIGHT_H
pos=TRIMRH+
neg=TRIMRH-
[timer1]
type=countdown
src=Ch1
time=300
[timer2]
src=FMODE1
[safety]
Auto=min
[gui-128x64]
V-trim=59,10,1
H-trim=5,59,3
V-trim=65,10,2
H-trim=74,59,4
Small-box=2,22,Ch1
Small-box=2,31,Timer1
Small-box=2,40,Timer2
Model=75,20
Battery=102,1
Toggle=4,10,0,3,0,None
Toggle=13,10,0,5,0,None
Toggle=22,10,0,4,0,None
Toggle=31,10,0,0,0,None
Toggle=40,10,0,0,0,None
TxPower=102,7
quickpage1=Telemetry monitor
