01 Nov 2017 11:09 #65406 by rsh78ph
Replied by rsh78ph on topic New TX from Banggood
Thank you thank you thank you.

Calibration of the sticks and knobs made them work!

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 12:06 - 01 Nov 2017 13:01 #65407 by norulers
Replied by norulers on topic New TX from Banggood

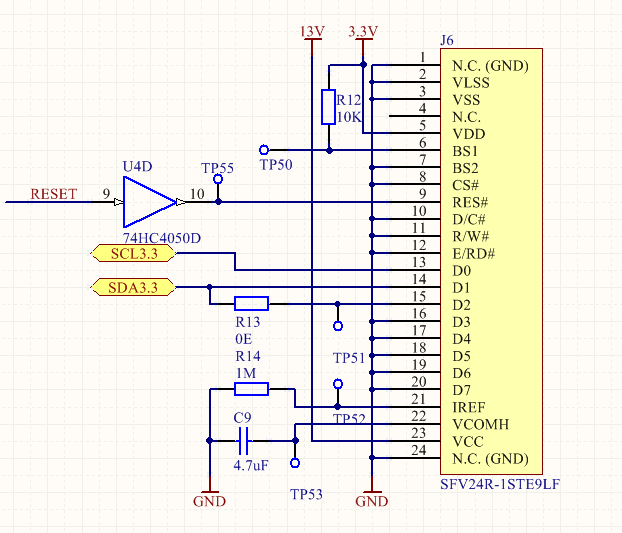

SSD1309 OLED with i2c

github.com/Ultimaker/Ultimaker2Marlin/bl...ation_ultiboard_v2.h




Can this screen be used for D7E? How to do it
Attachments:
Last edit: 01 Nov 2017 13:01 by norulers.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 18:46 #65409 by fneuf
Replied by fneuf on topic New TX from Banggood
I have one trouble using my new T8SG with an silver dual H8 mini. I seem to only get ~30% throttle while at max stick movement on the TX (the quad barely reach a few cm off the ground). I don't find wich parameter I should tweak to get the full range (I also have ~20% deadzone at start on the TX stick movement). I've try different mixer configurations, but doesn't have much success. What should be the usual settings?

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 19:20 #65410 by FDR
Replied by FDR on topic New TX from Banggood
Have you calibrated your sticks?

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 19:29 - 01 Nov 2017 19:29 #65411 by fneuf
Replied by fneuf on topic New TX from Banggood
Yup. The interesting (& missing from my previous message) point is it did get tracks line since I calibrated the sticks.
But as I'm a beginner in Deviation, be sure to ask every question even the simplest ones. I might have not cover all the basics settings, or mis-set some.
Last edit: 01 Nov 2017 19:29 by fneuf.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 19:33 #65412 by FDR
Replied by FDR on topic New TX from Banggood
Do you see +-100% movements on the channel monitor?

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 20:25 #65413 by SadSack
Replied by SadSack on topic SSD1309 OLED
Should fairly easy...
Once connected will work with stock Walkera firmware and Deviationtx with few minor changes to initialisation code for screen but with no changes works.

My best guess as to not working is your using 3 wire serial not 4. Info posted not clear to me 'BS0' is missing but BS1, BS2 is shown.
Odd need to set all 3 for correct interface I2c, Serial 3/4, 8080 and 6800.
Follow this ...
ER-OLED0.96-1 Series Interfacing Document

www.buydisplay.com/download/interfacing/...ries_Interfacing.pdf

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 20:35 - 01 Nov 2017 20:37 #65414 by SadSack
Replied by SadSack on topic SSD1309 OLED
Pins 10,11,12 are BS0 BS1 BS2
For 4 wire serial they need to go to ground.
Last edit: 01 Nov 2017 20:37 by SadSack.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:11 #65415 by yets
Replied by yets on topic New TX from Banggood

dc59 wrote: Jumper's first batch of T8SG analog/digital hall sensor gimbals and Walkera DEVO hall sensor gimbals will be released at end of November , of course these upgrade kits will send to Deviation developers for further testing.


:cheer: :cheer: Fantastic news for Devo users

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:16 #65416 by victzh
Replied by victzh on topic SSD1309 OLED
SadSack is absolutely right. I found a display already wired for 4-wire SPI.

Also, I would be wary about exact controller used. Are you sure it's SSD1309, not SSD1306? I've seen a discussion mentioning that it's often the case - incorrect marking of the product.

I found couple of these screens on eBay, but they promise them by the end of November only, otherwise I would connect it to my TX and try to adapt the code.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:17 #65417 by PJC
Replied by PJC on topic New TX from Banggood

dc59 wrote: Jumper's first batch of T8SG analog/digital hall sensor gimbals and Walkera DEVO hall sensor gimbals will be released at end of November , of course these upgrade kits will send to Deviation developers for further testing.


THIS IS AMAZING NEWS! I've been touting this TX on the Tiny Whoop and Rotor Riot FB groups and people are very excited for these gimbals! I also think that once there are Hall's for the DEVO, it will be a game changer for Spektrum folks. Everyone that I've shown my Devo 10 to is amazed at how nice it is for the price...if it had Halls, even the Taranis guys would pay attention. ;)

Looking forward to getting both for my T8SG and DEVO 10!!

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:22 #65418 by victzh
Replied by victzh on topic SSD1309 OLED
OK, I found it closer, but slightly more expensive. They promise it here by Nov 6. Tell me, are you - norulers - interested in me buying it and helping you with the code?

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:27 - 01 Nov 2017 21:31 #65420 by SadSack
Replied by SadSack on topic SSD1309 OLED
I first got my oled running using uno + u8glib from I took initialisation code and transferred over to divinationTX
Does support ssd1309 so like for a simple value change.

BS1 BS2 Need to go to ground for 4 wire serial
3 wire serial not available on ssd1309
Last edit: 01 Nov 2017 21:31 by SadSack.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 21:37 - 01 Nov 2017 21:37 #65421 by fneuf
Replied by fneuf on topic New TX from Banggood

FDR wrote: Do you see +-100% movements on the channel monitor?

No, only 50% on channel 3 (throttle). Also the mixer graph was also alphed. I could only had 50% of it.
I did a new calibration again following your message, but this time I literally followed the instruction (center all sticks) even for throttle. On first calibrations I always let the throttle at min level.
This was my mistake, litteraly all the channel need to be on mid position. Thanks for your questions, it helped me find the issue!
Last edit: 01 Nov 2017 21:37 by fneuf.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 22:42 - 01 Nov 2017 22:48 #65423 by Brainstorm
Replied by Brainstorm on topic New TX from Banggood

dc59 wrote: Jumper's first batch of T8SG analog/digital hall sensor gimbals and Walkera DEVO hall sensor gimbals will be released at end of November , of course these upgrade kits will send to Deviation developers for further testing.


That is brilliant news, dc59!! Very exciting! :cheer:

Any chance that early purchasers of the T8SG could have access to this first batch as well? I think I was one of the first people to pre-order the TX on BG. And I received the first version with the inaccessible USB connector.
Last edit: 01 Nov 2017 22:48 by Brainstorm.

Please Log in or Create an account to join the conversation.

More
01 Nov 2017 23:13 - 02 Nov 2017 01:58 #65426 by ramunas

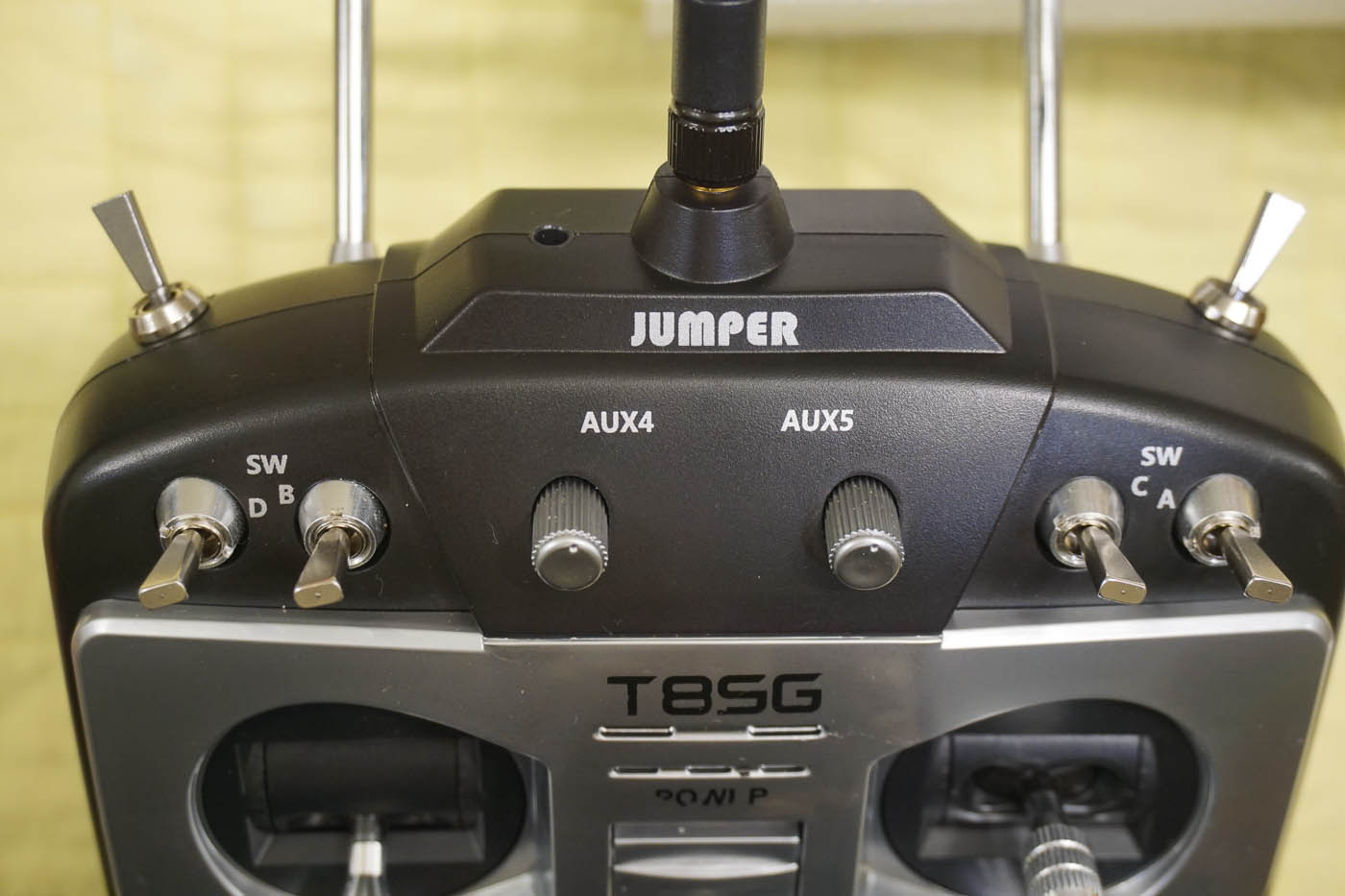

Following Vlad's posting on sw9 (SWG) and sw10 (SWH) connections, I have two shoulder switches now working on the T8SG. The notes on where to pick up the signals on existing board/switch locations was very helpful. To get it to work, I had to reverse the diodes so the cathodes (black stripe) connects to the switch posts. With that, all the switches work great.
Attachments:
Last edit: 02 Nov 2017 01:58 by ramunas. Reason: double picture, sw nomenclature

Please Log in or Create an account to join the conversation.

More
02 Nov 2017 00:18 - 02 Nov 2017 00:18 #65428 by dc59
Replied by dc59 on topic SSD1309 OLED

victzh wrote: OK, I found it closer, but slightly more expensive. They promise it here by Nov 6. Tell me, are you - norulers - interested in me buying it and helping you with the code?


I think they DO need your help. :woohoo:
Last edit: 02 Nov 2017 00:18 by dc59.

Please Log in or Create an account to join the conversation.

More
02 Nov 2017 03:45 - 02 Nov 2017 05:56 #65429 by vlad_vy
Replied by vlad_vy on topic SSD1309 OLED
ramunas, thank you, I fixed my posts about sw9 (SWG) and sw10 (SWH) connections.

Can you post the image of internals?

My second T8SG is at one step from my post office, so I will try to mod T8SG soon.
Last edit: 02 Nov 2017 05:56 by vlad_vy.

Please Log in or Create an account to join the conversation.

More
02 Nov 2017 04:16 #65430 by victzh
Replied by victzh on topic New TX from Banggood
Vlad, do you have your changes for T8SG somewhere in the github?

Please Log in or Create an account to join the conversation.

More
02 Nov 2017 04:26 - 02 Nov 2017 04:31 #65431 by norulers
Replied by norulers on topic SSD1309 OLED

SadSack wrote: I first got my oled running using uno + u8glib from I took initialisation code and transferred over to divinationTX
Does support ssd1309 so like for a simple value change.

BS1 BS2 Need to go to ground for 4 wire serial
3 wire serial not available on ssd1309

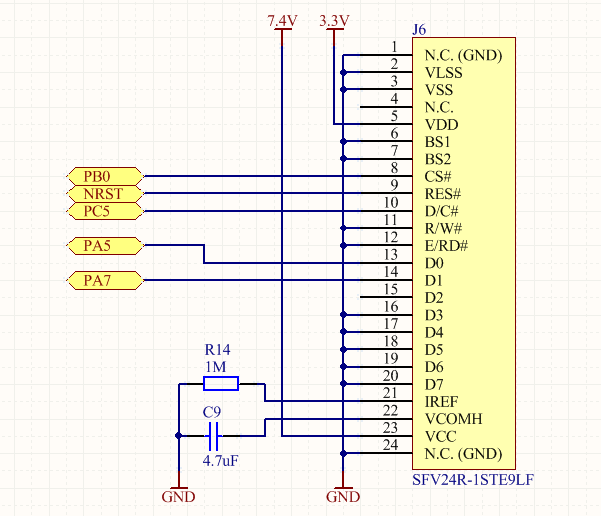

4 wire SPI is this wiring correct?

Attachments:
Last edit: 02 Nov 2017 04:31 by norulers.

Please Log in or Create an account to join the conversation.
